AP12 Main Assembly Parts By MBW

AP12 Main Assembly Parts By MBW

  • AP12 Main Assembly Parts By MBW
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
00032 Key, 3/16” Sq. X 1-5/8 Lg. for GP15 Plate Compactors by MBW Genuine Parts
Call for Price call for price call for price
2
01289 V-Belt (A-27) (Ap/Gp18 Serial No. #1181585 And Lower) for AP15 Plate Compactors by MBW Genuine Parts
$12.86
-
22164 V-Belt (4L295) (Ap/Gp18 Serial No. #3180001 And Above) for GP15 Plate Compactors by MBW Genuine Parts
Call for Price call for price call for price
3
12860 Engine Honda Gx120 for AP15 Plate Compactors by MBW Genuine Parts
$650.13
-
01444 Engine , Honda Gx160 5.5Hp for GP4000H Plate Compactors by MBW Genuine Parts
$788.37
4
14993 Washer, Countersunk for AP15 Plate Compactors by MBW Genuine Parts
$9.40
5
16105 Clutch, Centrifugal for AP15 Plate Compactors by MBW Genuine Parts
$223.80
7
17170 Shock Mount for AP2000H Plate Compactors by MBW Genuine Parts
$31.80
9
20759 Beltguard, Plastic for GP12 Plate Compactors by MBW Genuine Parts
$30.70
10
20768 Bottom Plate Assembly (12”) for GP15 Plate Compactors by MBW Genuine Parts
$950.28
-
20530 Bottom Plate Assembly (18”) for GP15 Plate Compactors by MBW Genuine Parts
$1,047.42
11
20771 Engine Deck (Ap/Gp18 Serial No. #1181585 And Lower) for AP18 Plate Compactors by MBW Genuine Parts
$240.10
-
22170 Engine Deck (Ap/Gp18 Serial No. #3180001 And Above) for GP12 Plate Compactors by MBW Genuine Parts
Call for Price call for price call for price
12
20772 Belt Guard, Painted for AP15 Plate Compactors by MBW Genuine Parts
$33.91
13
20773 Guard, Rear, Painted for AP15 Plate Compactors by MBW Genuine Parts
Call for Price call for price call for price
14
20789 Engine Mounting Bar for AP15 Plate Compactors by MBW Genuine Parts
Call for Price call for price call for price
15
21016 Handle Bracket , Left for AP15 Plate Compactors by MBW Genuine Parts
$43.94
16
21018 Handle Bracket, Right for AP15 Plate Compactors by MBW Genuine Parts
$36.61
17
21021 Handle Mounting Bracket for AP15 Plate Compactors by MBW Genuine Parts
$54.58
18
22174 Lift Handle ,(Serial No. #3180001 And Above) for AP15 Plate Compactors by MBW Genuine Parts
Call for Price call for price call for price
19
F042005TCS Thread Cutt Screw, 1/4-20 X 5/8 Zp for GP15 Plate Compactors by MBW Genuine Parts
$3.42
20
F051807FWS Flange Head Screw, 5/16-18 X 7/8 Lg. for AP15 Plate Compactors by MBW Genuine Parts
$4.79
21
F051812HCS Hex Head Screw, 5/16 -18 X 1-1/2 Gr5 Zp for GP15 Plate Compactors by MBW Genuine Parts
$3.42
23
F052406HCS Hhcs 5/16-24 X 3/4 Gr5 Zp for AP15 Plate Compactors by MBW Genuine Parts
$2.39
24
F05LW Lockwasher , 5/15 Zp for AP18 Plate Compactors by MBW Genuine Parts
$2.39
25
F05SW Plain Washer, 5/16 for AP1400H Plate Compactors by MBW Genuine Parts
$2.39
26
F0518ELN Locknut ,5/16-18 Nyloc for AP1400H Plate Compactors by MBW Genuine Parts
$2.39
28
F081304BCS Button Head Screw 1/2-13 X 1/2 for GP15 Plate Compactors by MBW Genuine Parts
$7.19
29
F081306BCS Button Head Screw 1/2-13 X 3/4 for GP15 Plate Compactors by MBW Genuine Parts
$5.82
30
F081307HCS Hex Head Cap Screw, 1/2-13 X 3/4” for GP3000-15R Plate Compactors by MBW Genuine Parts
$4.79
31
F081308HCS Hex Head Screw, 1/2-13 X 1 Lg. Gr5 Zp for AP15 Plate Compactors by MBW Genuine Parts
$4.79
32
F081310HCS Hex Head Cap Screw, 1/2-13 X 1-1/4 Lg. for AP1400H Plate Compactors by MBW Genuine Parts
$4.79
33
F0813ELN Lock Nut, 1/2-13 Nyloc, Zp for AP15 Plate Compactors by MBW Genuine Parts
$2.39
34
F08LW Lock Washer, 1/2” for GP3000-15H Plate Compactors by MBW Genuine Parts
$2.39
35
F08SW Flat Washer, 1/2 Zp for AP15 Plate Compactors by MBW Genuine Parts
Call for Price call for price call for price
36
M12ETLW Lock Washer, M12 External Tooth for GP5800H Plate Compactors by MBW Genuine Parts
$3.42
6
16908 Shock Mount, 2" Od X 2-1/8" Lg for AP15 Plate Compactors by MBW Genuine Parts
$19.19
8
20537 Bumper, 1" Dia for AP15 Plate Compactors by MBW Genuine Parts
$5.82
22
F052406FSS Flat Head Screw 5/16-24 X 3/4" for AP15 Plate Compactors by MBW Genuine Parts
$3.42
27
Call for Price call for price call for price
View full details

Frequently asked questions

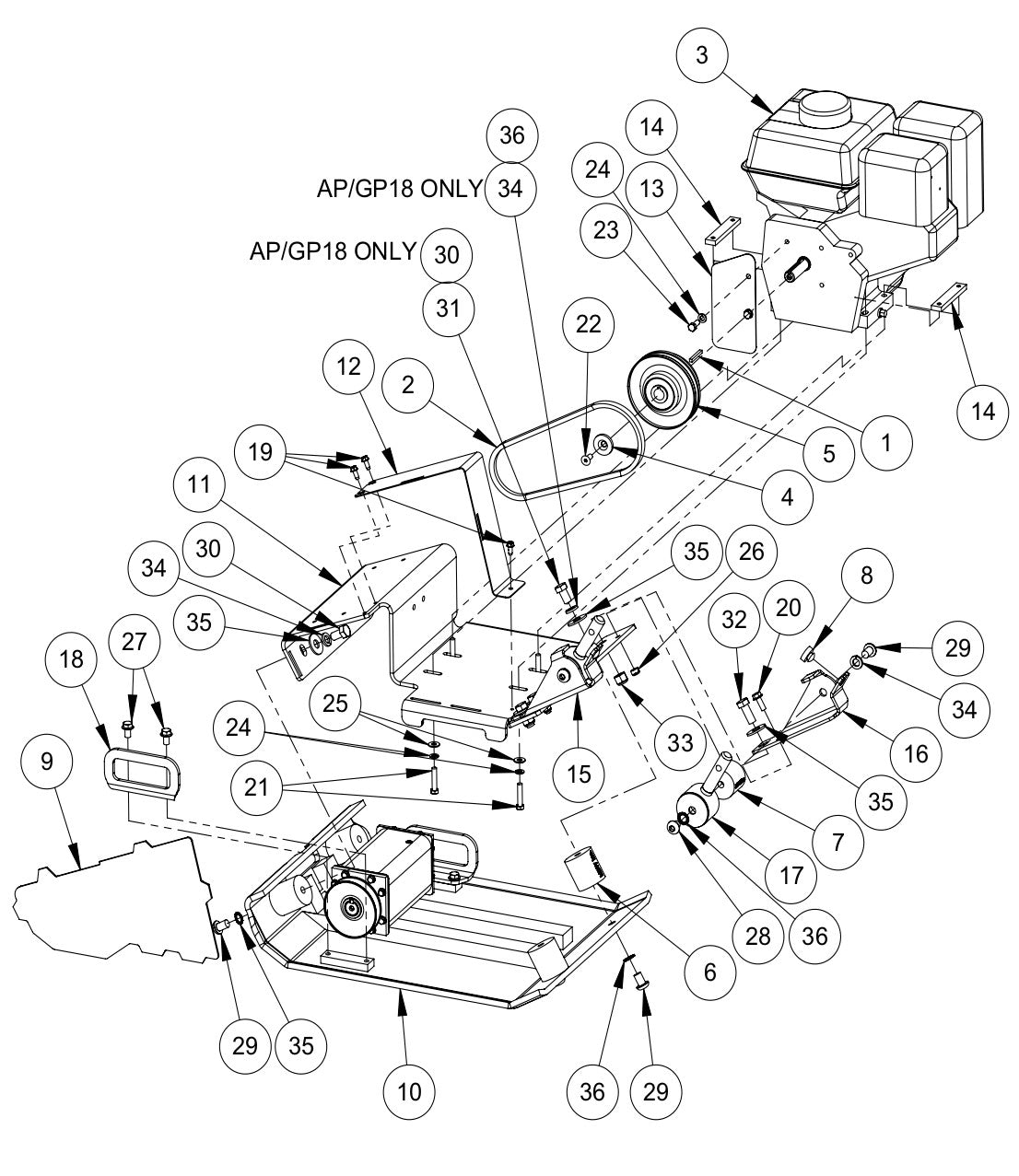

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
