AP2000H 3550 Exciter Assembly Parts By MBW

AP2000H 3550 Exciter Assembly Parts By MBW

  • AP2000H 3550 Exciter Assembly Parts By MBW
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
00001 Exciter Housing for AP2000H Plate Compactors by MBW Genuine Parts
Call for Price call for price call for price
2
00006 Rear Cover for AP2000H Plate Compactors by MBW Genuine Parts
Call for Price call for price call for price
3
00066 Filter Retainer for GP4000H Plate Compactors by MBW Genuine Parts
Call for Price call for price call for price
4
00259 Shim (As Needed) for GP3000-15H Plate Compactors by MBW Genuine Parts
Call for Price call for price call for price
5
01000 Retaining Ring, Internal for AP2000H Plate Compactors by MBW Genuine Parts
$7.19
6
01001 Retaining Ring, External for AP2000H Plate Compactors by MBW Genuine Parts
$3.42
7
01004 Cylindrical Roller Bearing for AP2000H Plate Compactors by MBW Genuine Parts
$69.91
8
01005 Spherical Roller Bearing for AP2000H Plate Compactors by MBW Genuine Parts
$179.40
9
01072 Filter for GP4000H Plate Compactors by MBW Genuine Parts
$3.42
10
01099 Washer for AP1400H Plate Compactors by MBW Genuine Parts
$4.79
11
06096 Gasket for AP2000H Plate Compactors by MBW Genuine Parts
$5.82
12
06098 Gasket for AP2000H Plate Compactors by MBW Genuine Parts
$7.19
13
17179 Oil Seal for AP2000H Plate Compactors by MBW Genuine Parts
Call for Price call for price call for price
-
01002 Oil Seal, Serial No. 2064574 & Lower for AP2000R Plate Compactors by MBW Genuine Parts
$49.64
14
18577 Base Plate for AP2000H Plate Compactors by MBW Genuine Parts
$876.80
15
18700 Hhcs, 5/8-11 X 6 Grade 8 for AP2000H Plate Compactors by MBW Genuine Parts
$11.11
16
18701 Hex Nut, 5/8-11, Grade 8 for AP2000H Plate Compactors by MBW Genuine Parts
$4.79
17
19135 Key, 1/4” Sq. X 3/4 Square Ends for AP2000H Plate Compactors by MBW Genuine Parts
$7.19
-
01283 Key, 1/4 Square X 1-1/4, Round Ends for GP1400H Plate Compactors by MBW Genuine Parts
$7.19
18
19628 Front Cover for AP2000H Plate Compactors by MBW Genuine Parts
$44.77
-
00005 Front Cover, Serial No. 2064574 & Lower for AP2000H Plate Compactors by MBW Genuine Parts
$44.77
19
19629 Pulley, 4-3/8 Dia X 1.0 I.D., Ap2000 (Asphalt Version) for AP2000H Plate Compactors by MBW Genuine Parts
$38.02
-
00003 Pulley, 4-3/8 Dia X 1-1/8 I.D., Ap2000 (Asphalt Plate) Ser. No. 2064574 & Lower for AP2018H Plate Compactors by MBW Genuine Parts
Call for Price call for price call for price
20
19912 Exciter Shaft for AP2000H Plate Compactors by MBW Genuine Parts
$216.66
-
18692 Exciter Shaft, Serial No. 3551199 & Lower for AP2000H Plate Compactors by MBW Genuine Parts
$536.79
21
F0205SP Pin, Spirol, 1/8 X 5/8 Rd for GP1400H Plate Compactors by MBW Genuine Parts
$3.42
22
F051804HCS Hex Head Cap Screw, 5/16-18 X 1/2" for GP4000H Plate Compactors by MBW Genuine Parts
$3.42
23
F051806FWS Flange Locking Screw, 5/16-18 X 1 Lg for GP2000R Plate Compactors by MBW Genuine Parts
$4.79
24
F051808FWS Flange Locking Screw, 5/16-18 X 1 Lg for AP2000H Plate Compactors by MBW Genuine Parts
$3.42
26
F0612SP Pin, Spirol for AP2000H Plate Compactors by MBW Genuine Parts
$7.19
27
F0618SPP Socket Head Pipe Plug, 3/8-18 for GP1400H Plate Compactors by MBW Genuine Parts
$4.79
28
F10LW Lock Washer, 5/8” for GP3000-15H Plate Compactors by MBW Genuine Parts
$2.39
29
F10PW Washer, 5/8 for AP2000H Plate Compactors by MBW Genuine Parts
Call for Price call for price call for price
-
00062 Washer Seal, Pulley ( Not Shown) Serial No. 2064574 And Lower for AP2000H Plate Compactors by MBW Genuine Parts
Call for Price call for price call for price
-
19913 Exciter Assembly ( Complete) for GP2000H Plate Compactors by MBW Genuine Parts
$1,087.28
-
18758 Bottom Plate for AP2000H Plate Compactors by MBW Genuine Parts
$997.61
25
F05BFW Brass Flat Washer, 5/16" for GP4000H Plate Compactors by MBW Genuine Parts
$3.42
View full details

Frequently asked questions

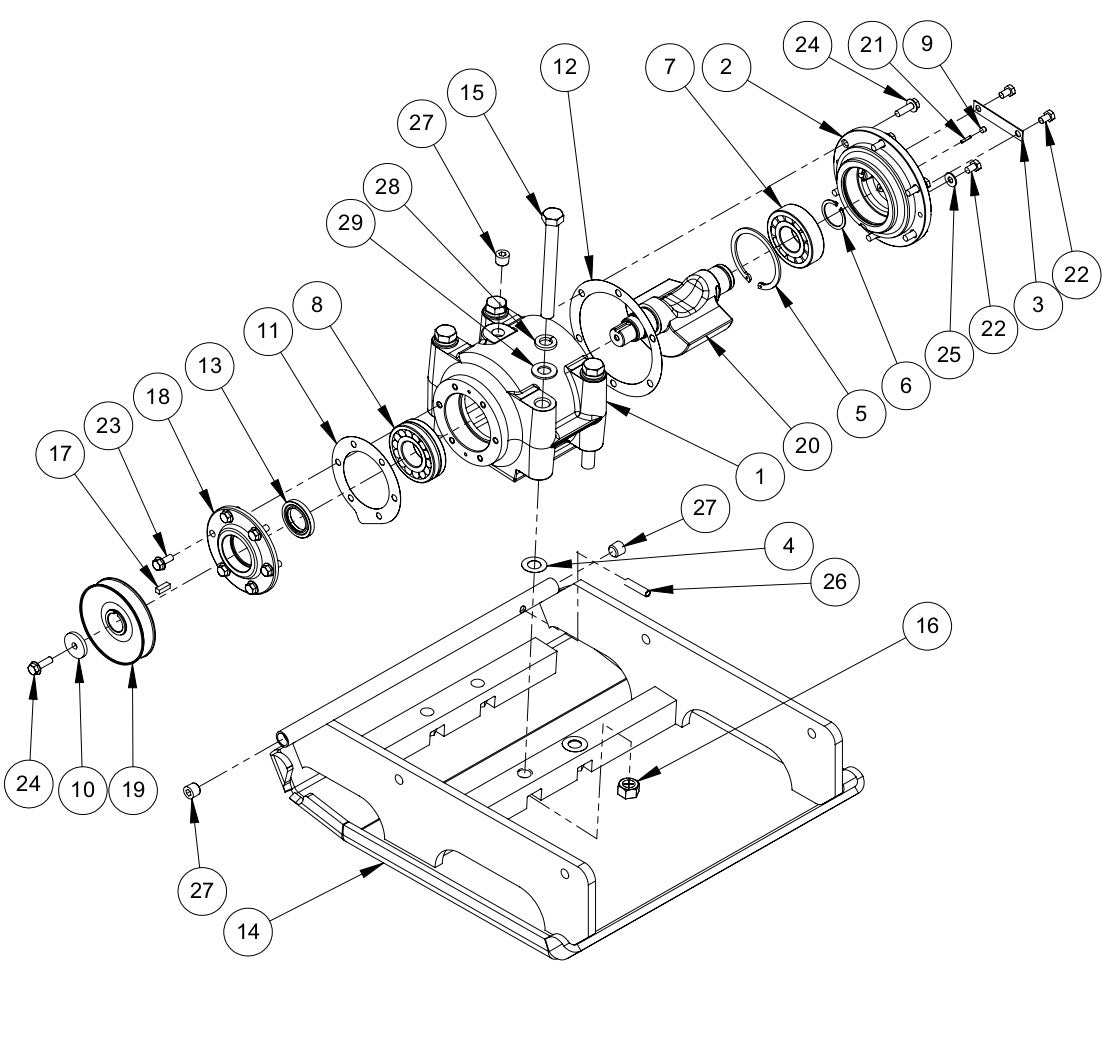

How do I use this diagram?
