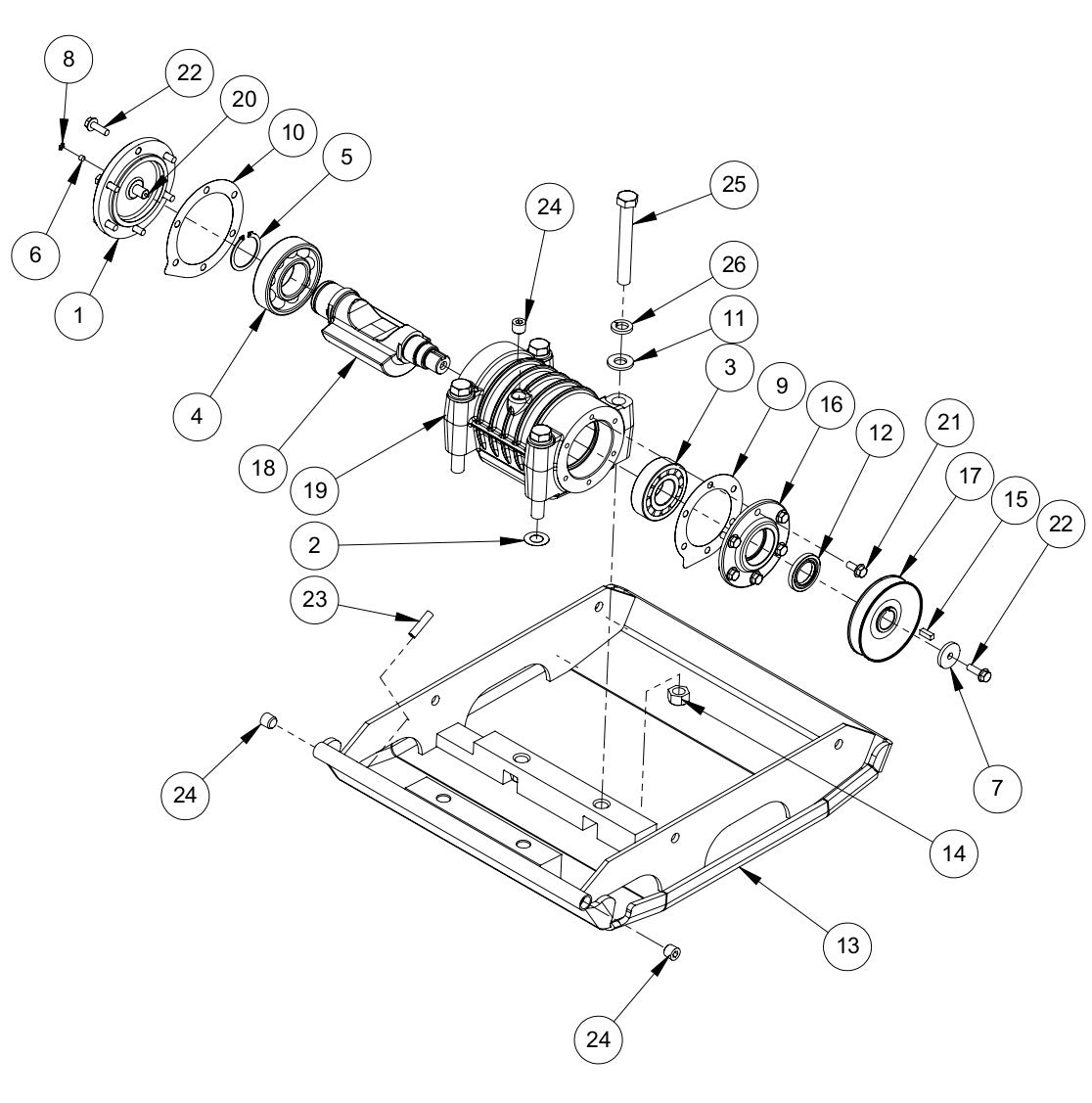

AP2000H Exciter Assembly Parts By MBW

AP2000H Exciter Assembly Parts By MBW

  • AP2000H Exciter Assembly Parts By MBW
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
00206 Rear Cover for AP2000H Plate Compactors by MBW Genuine Parts
$48.11
2
00259 Shim (As Needed) for GP3000-15H Plate Compactors by MBW Genuine Parts
Call for Price call for price call for price
3
01004 Bearing, Cylindrical Roller for GP3000-15H Plate Compactors by MBW Genuine Parts
$69.91
4
01070 Ball Bearing for AP1400H Plate Compactors by MBW Genuine Parts
$50.38
5
01071 Retaining Ring, External for AP2000H Plate Compactors by MBW Genuine Parts
$4.79
6
01072 Filter for GP4000H Plate Compactors by MBW Genuine Parts
$3.42
7
01099 Washer for AP1400H Plate Compactors by MBW Genuine Parts
$4.79
8
01191 Retaining Ring, Interna for GP2000H Plate Compactors by MBW Genuine Parts
Call for Price call for price call for price
9
06096 Gasket for AP2000H Plate Compactors by MBW Genuine Parts
$5.82
10
06097 Gasket for AP2000H Plate Compactors by MBW Genuine Parts
$7.19
11
13451 Washer, 5/8, A325, Structural for AP2000H Plate Compactors by MBW Genuine Parts
$3.42
12
17179 Oil Seal for AP2000H Plate Compactors by MBW Genuine Parts
Call for Price call for price call for price
-
01002 Oil Seal, Serial No. 2064574 & Lower for AP2000R Plate Compactors by MBW Genuine Parts
$49.64
13
18697 Baseplate for AP2000H Plate Compactors by MBW Genuine Parts
$990.00
14
18701 Hex Nut, 5/8-11, Grade 8 for AP2000H Plate Compactors by MBW Genuine Parts
$4.79
15
19135 Key, 1/4” Sq. X 3/4 Square Ends for AP2000H Plate Compactors by MBW Genuine Parts
$7.19
-
01283 Key, 1/4 Sq X 1-1/4 Rd Ends for GP3000-15H Plate Compactors by MBW Genuine Parts
$7.19
16
19628 Front Cover for AP2000H Plate Compactors by MBW Genuine Parts
$44.77
-
00005 Front Cover, Serial No. 2064574 & Lower for AP2000H Plate Compactors by MBW Genuine Parts
$44.77
17
19629 Pulley, 4-3/8 Dia X 1.0 I.D., Ap2000 (Asphalt Version) for AP2000H Plate Compactors by MBW Genuine Parts
$38.02
-
19630 Pulley, 3-7/8 Dia X 1.0 I.D., Gp2000 (Soil Version & Ap2000+) for AP2000H Plate Compactors by MBW Genuine Parts
$26.34
-
00003 Pulley, 4-3/8 Dia X 1-1/8 I.D., Ap2000 (Asphalt Plate) Ser. No. 2064574 & Lower for AP2018H Plate Compactors by MBW Genuine Parts
Call for Price call for price call for price
-
00348 Pulley, 3-7/8 Dia X 1-1/8 I.D., Gp2000 (Soil & 2000+ Plate) Ser. No. 2064574 & Lower for AP1400H Plate Compactors by MBW Genuine Parts
$176.60
18
19835 Exciter Shaft for AP2000H Plate Compactors by MBW Genuine Parts
$176.60
-
00202 Exciter Shaft, Serial No. 2064574 And Lower for AP2000H Plate Compactors by MBW Genuine Parts
$176.60
19
20944 Exciter Housing for AP2000H Plate Compactors by MBW Genuine Parts
$212.50
20
F0205SP Pin, Spirol, 1/8 X 5/8 Rd for GP1400H Plate Compactors by MBW Genuine Parts
$3.42
21
F051806FWS Flange Locking Screw, 5/16-18 X 1 Lg for GP2000R Plate Compactors by MBW Genuine Parts
$4.79
22
F051808FWS Flange Locking Screw, 5/16-18 X 1 Lg for AP2000H Plate Compactors by MBW Genuine Parts
$3.42
23
F0612SP Pin, Spirol for GP1400H Plate Compactors by MBW Genuine Parts
$7.19
24
F0618SPP Socket Head Pipe Plug, 3/8-18 for GP1400H Plate Compactors by MBW Genuine Parts
$4.79
25
21099 Hex Head Cap Screw, 5/8-11 X 4-3/4 Lg, Grade 8 for AP2000H Plate Compactors by MBW Genuine Parts
$8.60
-
18696 Hhcs, 5/8-11 X 5-3/4, Grade 8,: Serial No. 2070149/2180195 And Lower for AP2000H Plate Compactors by MBW Genuine Parts
$8.17
26
F10LW Lock Washer, 5/8 for GP5800H Plate Compactors by MBW Genuine Parts
$2.39
-
00062 Washer Seal, Pulley ( Not Shown) Serial No. 2064574 And Lower for AP2000H Plate Compactors by MBW Genuine Parts
Call for Price call for price call for price
-
19836 Exciter Assembly (Does Not Include Items 7, 15, 17 & 22) for AP2018H Plate Compactors by MBW Genuine Parts
$651.37
-
18757 Bottom Plate, Ap/Gp2000 (Includes Items: 2, 11, 14, 23 Thru 26) for AP2000H Plate Compactors by MBW Genuine Parts
$787.12
