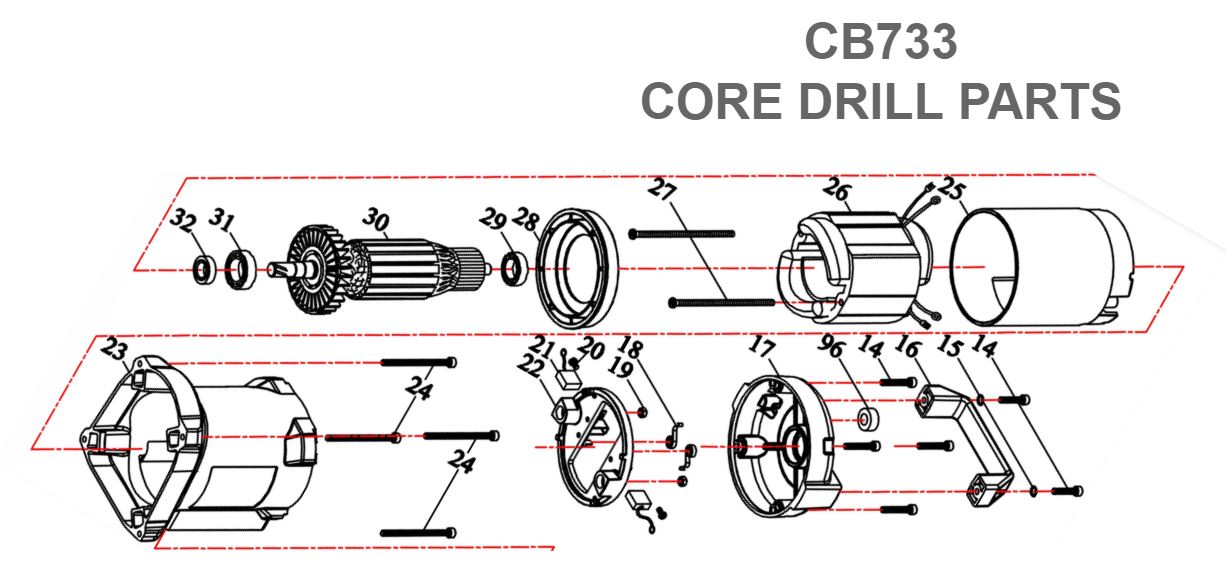

Armature, Stator and Motor Housing Parts for CB733 Core Drill by Core Bore Diamond Products

Armature, Stator and Motor Housing Parts for CB733 Core Drill by Core Bore Diamond Products

  • Armature, Stator and Motor Housing Parts for CB733 Core Drill by Core Bore Diamond Products
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
14
2709008 Socket Cap Screw M5 x 25 for CB733 and CB744 Drill by Core Cut Diamond Products
$3.99
15
2709009 Flat Washer Ø5 x Ø12 x 1 for CB733 and CB744 Drill by Core Cut Diamond Products
$3.99
16
2709010 Top Handle for CB733 and CB744 Drill by Core Cut Diamond Products
$8.77
18
6078411 Brush Spring 0.4 x 4 x 3T for CB733 and CB744 Drill by Core Cut Diamond Products
$19.18
19
2709012 Nylon Nut M5 for CB733 and CB744 Drill by Core Cut Diamond Products
$3.99
20
2709013 Panhead Machine Screw M4 x 6 for CB733 and CB744 Drill by Core Cut Diamond Products
$3.99
21
6078414 Carbon Brush 7 x 17 x 19 for CB515, CB733 and CB744 Drill by Core Cut Diamond Products
$12.91
22
2709014 Brush Holder Plate Assembly for CB733 and CB744 Drill by Core Cut Diamond Products
$46.27
23
2709015 Motor Housing for CB733 and CB744 Drill by Core Cut Diamond Products
$113.35
24
2709016 SOCKET CAP SCREW M6 x 75 for CB744 Concrete Drill Core Cut by Diamond Products
$6.99
25
2709017 MOTOR INSULATION SLEEVE for CB744 Concrete Drill Core Cut by Diamond Products
$32.28
27
2709019 PANHEAD MACHINE SCREW M5 x 110 for CB744 Concrete Drill Core Cut by Diamond Products
$4.99
28
2709020 FAN SHROUD for CB744 Concrete Drill Core Cut by Diamond Products
$11.78
29
6078427 Ball Bearing fits CB744 Core Drill by Core Cut Diamond Products
$35.50
30
2709021 ARMATURE 110V-100 x 54.1 x 75 for CB744 Concrete Drill Core Cut by Diamond Products
$211.20
31
6078430 BALL BEARING 6202 for CB744 Concrete Drill Core Cut by Diamond Products
$33.31
32
2709022 OIL SEAL Ø14 x Ø25 x 7 for CB744 Concrete Drill Core Cut by Diamond Products
$40.05
96
2709070 BULLS-EYE LEVEL for CB744 Concrete Drill Core Cut by Diamond Products
$10.38
17
Call for Price call for price call for price
26
Call for Price call for price call for price
View full details
