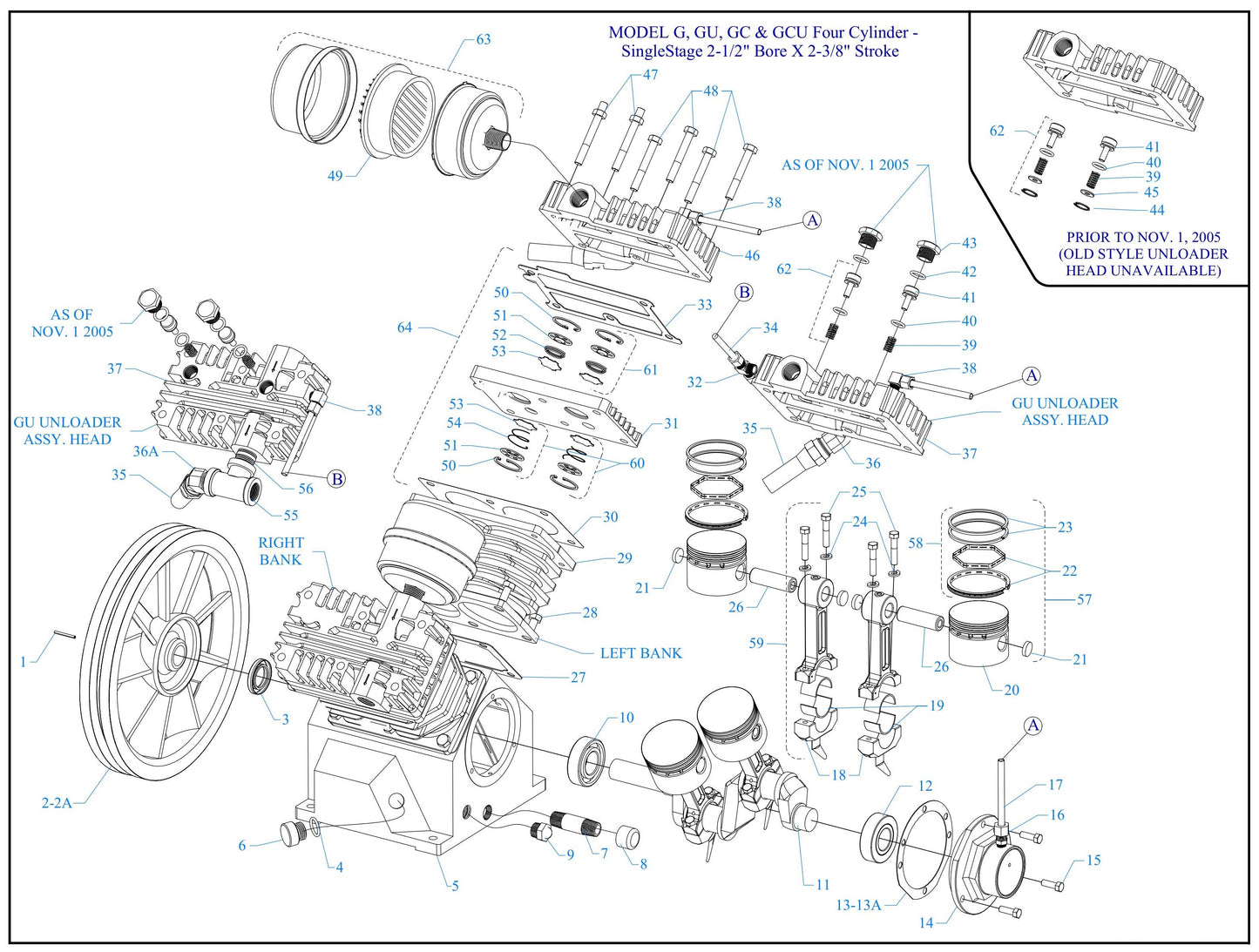

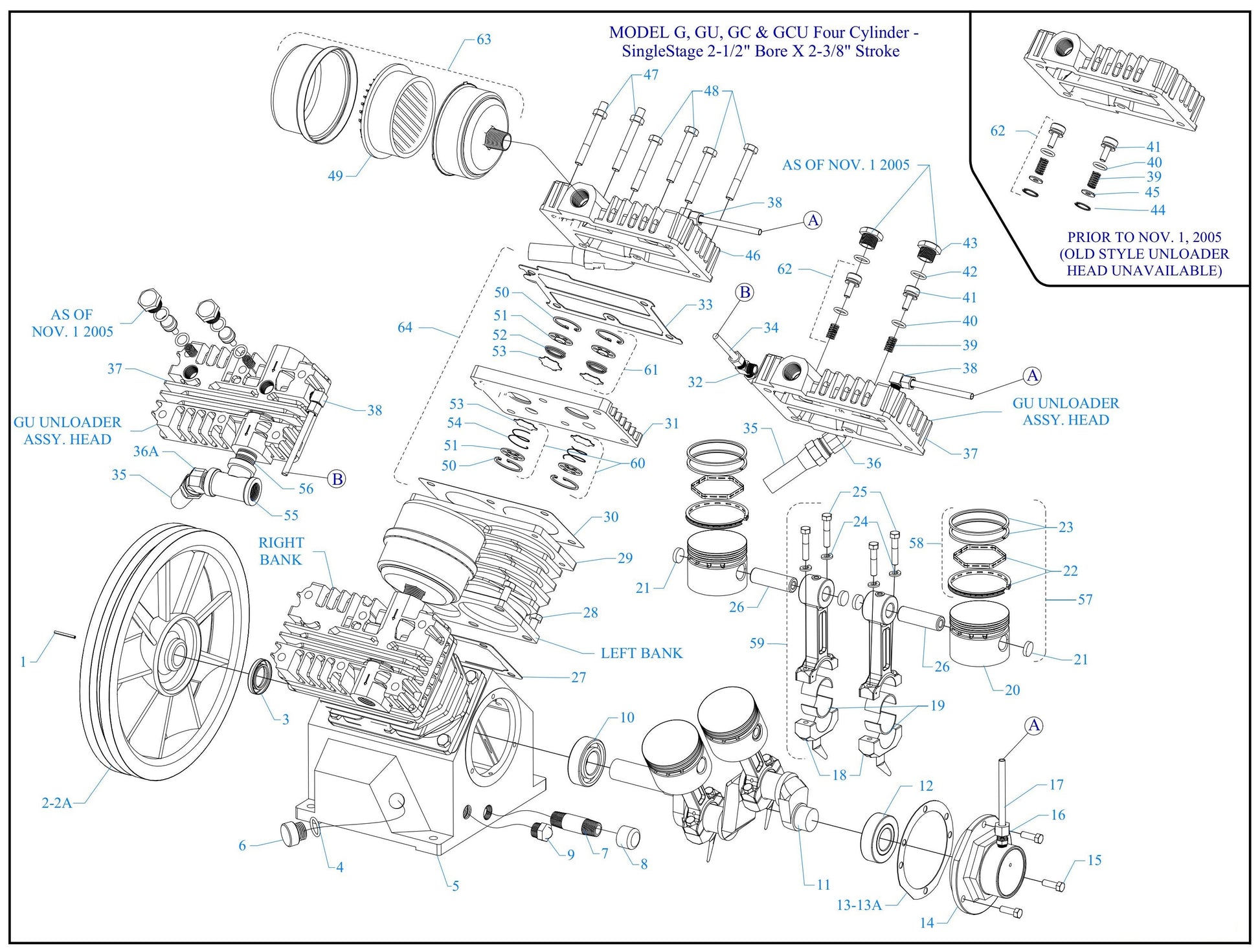

G13HGA-17P-3000W Model G, GU, GC & GCU Four Cylinder - Single Stage 2-1/2" Bore X 2-3/8" Stroke Assembly Parts By Jenny

G13HGA-17P-3000W Model G, GU, GC & GCU Four Cylinder - Single Stage 2-1/2" Bore X 2-3/8" Stroke Assembly Parts By Jenny

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
120-1163 Pin, Rolled, Coiled, Stl, Blk, 1/4Odx1L, K25 for Jenny Air Compressors K25 1201163
$3.99
2
2201095 Flywheel G Pump Ci 10-3/8 2 Groove L23A for Jenny Air Compressors 220-1095
$234.36
2A
2201090 Flywheel Gt Pump Ci 13-1/4 2 Groove G23 for Jenny Air Compressors 220-1090
Call for Price call for price call for price
3
150-1036 Seal, Oil, Lip, Single, 0.875 Dia, K11E for Jenny Air Compressors K11E 1501036
$8.71
4
104-1016 Ring, O, Buna-N, 5/8”Idx13/16”Odx3/32”Thk for Jenny Air Compressors K15 1041016
$3.99
5
2201034 Crankcase Y Pump Ci Machined Y1A for Jenny Air Compressors 220-1034
$408.65
6
610-1029 Plug, Crankcase, Fill, Oil, W/O-Ring, K14 for Jenny Air Compressors K14 6101029
$5.99
7
1221037 Nipple Steel Sch 40 3/8" X 2" L for Jenny Air Compressors 122-1037
$18.81
8
1221084 Cap Female Mi 3/8"Npt for Jenny Air Compressors 122-1084
$32.44
9
1601052 Gauge Sight Level Oil 1/2"Npt for Jenny Air Compressors 160-1052
$56.31
10
150-1000 Bearing, Ball, K9 for Jenny Air Compressors K9 1501000
$14.66
11
2201079 Crankshaft G Pump Ci Machined D20 for Jenny Air Compressors 220-1079
$709.65
12
150-1008 Bearing, Ball, L9 for Jenny Air Compressors L9 1501008
$16.04
13
104-1000-01 Gasket, Cap, Bearing, F&K&G Pump, 1/32Thk, L3 for Jenny Air Compressors L3 104100001
$3.99
13A
104100002 Gasket Cap Bearing F&K&G Pump 1/64Thk L4 for Jenny Air Compressors 104-1000-02
$5.99
14
2201076 Cap Bearing D Pump Ci Machined D2 for Jenny Air Compressors 220-1076
$158.88
15
1201004 Screw Cap Hexhd Gr5 St Blk 1/4-20X3/4 (10 Ftlb) for Jenny Air Compressors 120-1004
$9.84
16
121-1025 Connector Male Compression Br 1/4Tbx1/8" for Jenny Air Compressors 1211025
$16.90
17
610-1137 Tube, Breather, Bent, Cu, Mgu&Gcu&Gtu, L18 for Jenny Air Compressors L18 6101137
$14.93
18
3101043 Rod Connecting With Bearng Insert L21L and L21K 1 Includes 12 13 14(2) 15(2) for Jenny Air Compressors 310-1043
Call for Price call for price call for price
19
1501011 Bearing Rod Connecting Pump F K G for Jenny Air Compressors 150-1011
$17.09
20
220-1005 Piston, Pump, Aluminum, Machined, K32 for Jenny Air Compressors K32 2201005
$19.66
21
104-1103 Bumper, Pin, Wrist, Plastic, K36A for Jenny Air Compressors K36A 1041103
Call for Price call for price call for price
22
610-1065 Kit, Ring, Oil, W/Expander, Assy, K34 for Jenny Air Compressors K34 6101065
$10.33
23
150-1003 Ring, Compression, Piston, Steel, Eba 22, K33 for Jenny Air Compressors K33 1501003
$12.49
24
120-1068 Washer, Lock, Split, St, Blk, High Cllr, 1/4” for Jenny Air Compressors L22B 1201068
$2.99
25
1201010 Washer Lock Split St Blk High Cllr 1/4" for Jenny Air Compressors 120-1010
Call for Price call for price call for price
26
150-1005 Pin, Wrist, Piston, Steel, Hardened, K35 for Jenny Air Compressors K35 1501005
$11.09
27
104-1006 Gasket, Cylinder, K&G&W Pump, 1/32Thk, K31 for Jenny Air Compressors K31 1041006
$4.95
28
1201017 Screw Cap Hexhd Gr5 St Blk 5/16-18X3/4 ( 15 Ft - Lb. ) by Jenny Air Compressors 120-1017
$5.39
29
360-1150 Cylinder, K Pump, Ci, Painted, Blue, K30 for Jenny Air Compressors K30 3601150
$134.61
30
104-1007 Gasket, Plate, Valve, K&G&W Pump, 1/32Tk, L41 for Jenny Air Compressors L41 1041007
$12.83
31
2201013 Plate Valve L Pump Ci Machined L40 for Jenny Air Compressors 220-1013
$19.66
32
1211039 Tee Branch Brass 1/4"Tbx1/4"Tbx1/8"Nptm for Jenny Air Compressors 121-1039
$38.68
33
104-1008 Gasket, Head, K&G&W Pump, 1/32Thk, L51 for Jenny Air Compressors L51 1041008
$12.14
34
610-1121 Tube, Unloader, Head-Head, Cu, Mgu Pump, Lu88 for Jenny Air Compressors LU88 6101121
$13.30
35
610-1334 Tube, Manifold, Copper, G, W/Nut, 5/8, Ms, Mg59 for Jenny Air Compressors MG59 6101334
$32.48
36
1211015 Elbow Male Brass 5/8-45Saex1/2"Nptm for Jenny Air Compressors 121-1015
$57.87
36A
1211021 Elbow Brass Male 45Deg 5/8-45Saex1/2"Npt for Jenny Air Compressors 121-1021
$80.37
37
310-1008 Head, Unloading, K&G, W/1/2”Prt, 7 Hle, Lu180 for Jenny Air Compressors LU180 3101008
$145.93
38
121-1032 Elbow Male Compression Br 1/4Tbx1/8"Nptm for Jenny Air Compressors 1211032
$28.44
39
150-1020 Spring, Valve, Unloader, Intake, Ku83 for Jenny Air Compressors KU83 1501020
$3.99
40
104-1020 Ring, O, Silicon, 7/16”Idx5/8”Odx3/32”Thk for Jenny Air Compressors KU82 1041020
$3.99
41
150-1028 Piston, Unloader, Valve, Brass, Ku81 for Jenny Air Compressors KU81 1501028
$6.82
42
104-1015 Ring, O, Buna-N, 1/2”Idx11/16”Odx3/32”Thk for Jenny Air Compressors F15 1041015
$3.99
43
1221051 Plug Hex Brass 11/16-16 Un-2B X .550 for Jenny Air Compressors 122-1051
$24.71
44
120-1167 Retainer, Internal, St, 0.035X 0.665, Ku85 for Jenny Air Compressors KU85 1201167
$2.99
45
150-1042 Washer, Brass, 1/32X 0.605Odx1/4 Id, Ku84 for Jenny Air Compressors KU84 1501042
$3.99
46
310-1004 Head, Start/Stop, G Pump, Ci, Painted, L50 for Jenny Air Compressors L50 3101004
Call for Price call for price call for price
47
120-1252 Bolt, Stud, Hex, St, 5/16-18X2-1/4X5/8, K52-1 for Jenny Air Compressors K52-1 1201252
$6.68
48
120-1028 Screw, Cap, Hexhd, Gr5, St, Blk, 5/16-18X2-1/4 for Jenny Air Compressors K52 1201028
$3.99
49
150-1104 Element, Filter, Air, Compressor, Jenny, G54E for Jenny Air Compressors G54E 1501104
$17.04
50
150-1041 Retainer, Valve, Steel, Pas, 0.062”Thk, K43 for Jenny Air Compressors K43 1501041
$3.99
51
109-1010 Valve, Check, Bumper, Steel, K44 for Jenny Air Compressors K44 1091010
$5.99
52
150-1018 Spring, Cone, Ss, Valve, Discharge, K46 for Jenny Air Compressors K46 1501018
$3.99
53
109-1011 Valve, Check, Disc, Stainless Steel, K47 for Jenny Air Compressors K47 1091011
$4.95
54
150-1017 Spring, Cone, Ss, Valve, Intake, K45 for Jenny Air Compressors K45 1501017
$3.99
55
1221060 Tee Female Mi Pltd 1/2"Npt for Jenny Air Compressors 122-1060
$54.89
56
1221042 Nipple Close Steel Sch 80 1/2"Nptm for Jenny Air Compressors 122-1042
$18.81
57
610-1028 Piston, W/Rings&Pin, Assy, K132 for Jenny Air Compressors K132 6101028
$65.44
58
610-1020 Kit, Pump, Ring, Piston, F&K&G&W Pump, K133 for Jenny Air Compressors K133 6101020
$42.64
59
610-1411 Rod, Connecting, W/Bearng Insert, L21L&L21K for Jenny Air Compressors L21L&L21K 6101411
$44.88
60
610-1031 Valve, Suction, Assy, K145 for Jenny Air Compressors K145 6101031
$12.10
61
610-1032 Valve, Discharge, Assy, K146 for Jenny Air Compressors K146 6101032
$12.10
62
610-1042 Valve, Unloader, Head, Pump, Assy, Ku181 for Jenny Air Compressors KU181 6101042
$12.07
63
320-1121 Filter, W/Decal, Assy, G154S for Jenny Air Compressors G154S 3201121
$96.39
64
610-1045 Plate, Valve, L Pump, W/Valves&Gaskets, L140 for Jenny Air Compressors L140 6101045
$134.87
65
610-1044 Kit, Gasket, L Pump, Assy, L100 for Jenny Air Compressors L100 6101044
Call for Price call for price call for price
66
610-1298 Kit, Basic, Repair, G Pump, G101 for Jenny Air Compressors G101 6101298
$211.67
-
610-1297 Kit, Basic, Repair, Gu&Gcu Pump, Gu101 for Jenny Air Compressors GU101 6101297
$247.54
-
105-1209 Oil, Pump, Synthetic, Blue, 1 Quart, Esq for Jenny Air Compressors ESQ 1051209
$29.47
-
610-1226 Kit, Filter, Assy, G154, Pkg Of 4, G154P for Jenny Air Compressors G154P 6101226
$127.88
-
610-1186 Kit, Element, Filter, L54E, Pkg Of 4, L54Ep for Jenny Air Compressors L54EP 6101186
$83.97
-
150-1010 Element, Filter, Air, Compressor, Jenny, L54E for Jenny Air Compressors L54E 1501010
$21.09
