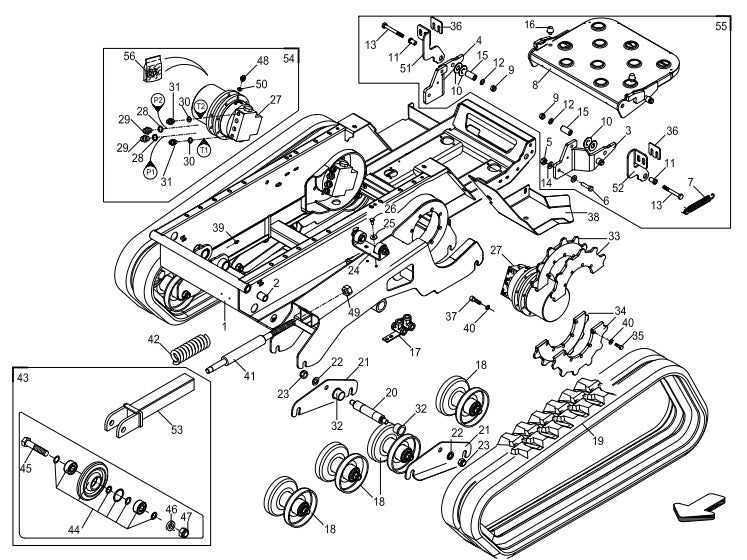

AT14F & AT14S Frame Assembly Illustration Parts By Allen Engineering

AT14F & AT14S Frame Assembly Illustration Parts By Allen Engineering

  • AT14F & AT14S Frame Assembly Illustration Parts By Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
7
076780 SPRING, 03730003 by Allen Engineering
$20.40
16
065583 VIBRATION-DAMPING by Allen Engineering
$15.60
18
065250 Roller Assembly (Tab 01-01 Pos 18) by Allen Enginnering
$573.70
19
065251 Track F/At14 Buggy by Allen Enginnering
$1,008.45
20
065585 AXE by Allen Engineering
$46.80
24
065257 Upper Roller (Tab 01-01 Pos 24) by Allen Enginnering
$420.19
26
070065 Fstn, Screw M8X30 8.8. by Allen Enginnering
$3.99
27
065252 Driving Motor (Tab 01-01 Pos 27) by Allen Enginnering
$4,257.90
33
065253 FIRST SIDE SPROCKET WHEEL IN HARDOX by Allen Engineering
$124.80
34
065254 SECOND SIDE SPROCKET WHEEL IN HARDO by Allen Engineering
$124.80
41
075331 PIN, 45070957 by Allen Engineering
$170.40
42
075332 SPRING, 03730930 by Allen Engineering
$108.00
44
065256 Idler Wheel (Tab 01-01 Pos 44) by Allen Enginnering
$407.00
45
073501 Pin by Allen Enginnering
$61.01
46
068662 Fstn, Flat Washer For M20 Bolt by Allen Enginnering
$3.99
47
073502 Nut by Allen Enginnering
$4.99
49
075333 FSTN, M20 NUT 03371120 by Allen Engineering
$3.99
56
065255 SEAL KIT, AT14 MOTOR (TAB 01-01 POS 38) by Allen Engineering
$463.20
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
