AW21, AW21-H Fuel System, Engine Electric Start Assembly Parts By Allen Engineering

AW21, AW21-H Fuel System, Engine Electric Start Assembly Parts By Allen Engineering

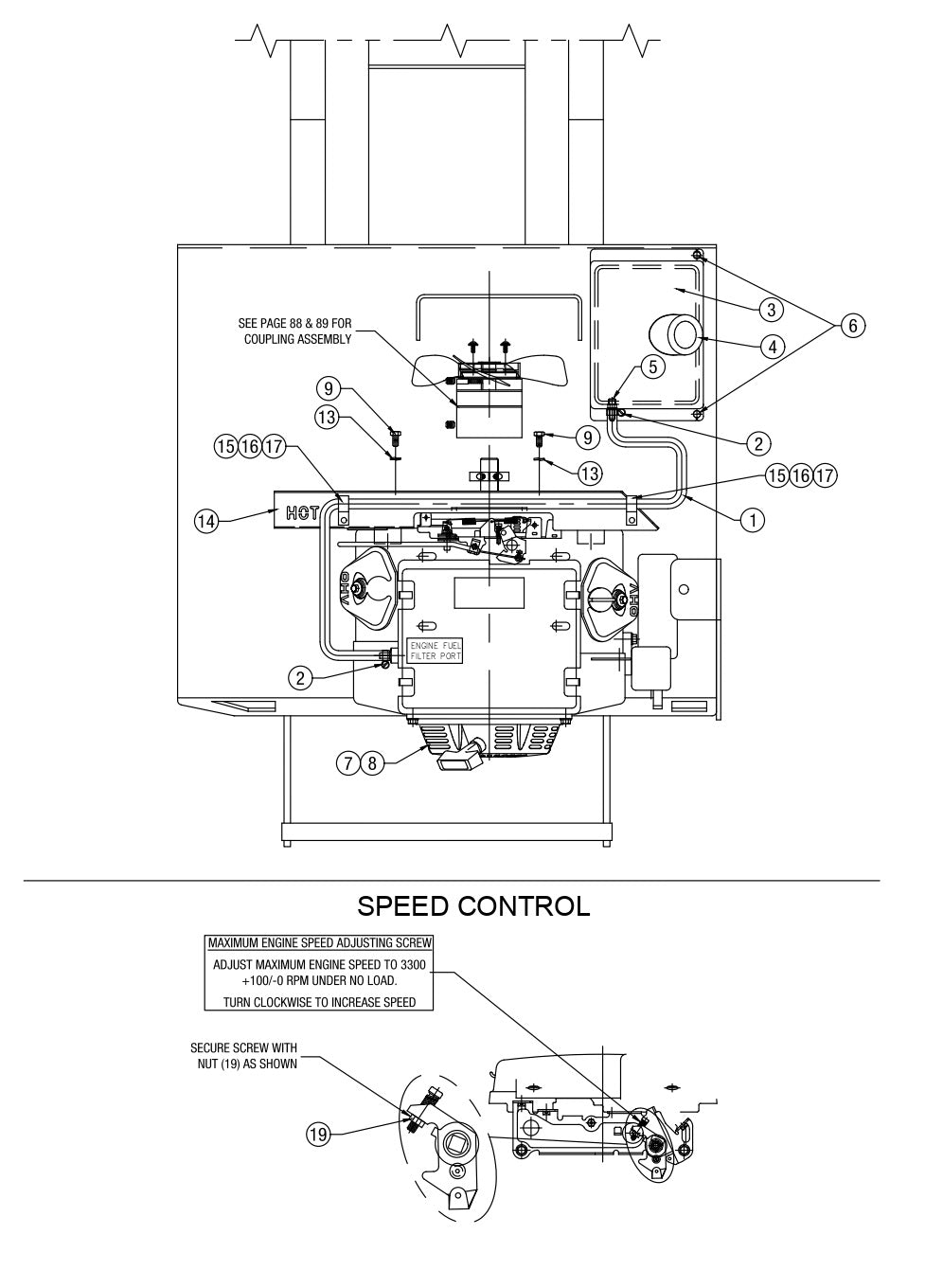

  • AW21 Fuel System, Kohler 20.5HP Engine (Electric Start) Assembly Parts By Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
019430 Fstn, Clamp Size 4 Mini Hose by Allen Enginnering
$6.23
3
42123-10 Fuel Tank, 2.2 Gallon Less Cap, Mb2 by Allen Enginnering
$751.86
4
42123-18 Fuel Cap - Mb21 (Not Illustrated) fits MB16 Miller Curber Concrete by Miller Curber 4212318
$30.00
7
45320-09 Engine, Honda 20Hp F/B-21 Elec Gx63 by Allen Enginnering
$5,602.50
9
010035 Fstn, Hhcs 3/8-16 X 3/4 Grd8 by Allen Enginnering
$4.95
12
010194 Ftg, 3/8X1/4 Male Push-On Hose by Allen Enginnering
$9.00
13
010091 Fstn, Lw 3/8 Grd8 by Allen Enginnering
$4.95
17
40112-68 Clamp, 1/2"/#8 Loom W/Rubber Jacket by Allen Enginnering
$6.23
20
020542 Fstn, Nut Stover Lock 1/4-20 by Allen Enginnering
$4.95
1
039155 HOSE, 1/4" FUEL - GATES 27313 by Allen Engineering
$14.40
5
42123-22 FITTING BRASS BARBED 1/4X1/8 by Allen Engineering
$11.34
6
42123-22 FITTING BRASS BARBED 1/4X1/8 by Allen Engineering
$11.34
8
42124-02 MUFFLER, SIDE MOUNT ASSY F/20HP HO by Allen Engineering
$727.20
14
42124-46 HEAT SHIELD FOR GX630 MB21 by Allen Engineering
$160.80
16
42124-19 SPACER, HEAT SHIELD by Allen Engineering
$10.80
View full details
