B6050 (0601135535) Bosch 3 Bosch Electric Drill Parts Diagram

B6050 (0601135535) Bosch 3 Bosch Electric Drill Parts Diagram

  • B6050 (0601135535) Bosch 3 Bosch Electric Drill Parts Diagram
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
3
2606610027 Fan | Genuine OEM Bosch Part
$3.91
60
2606610027 Fan | Genuine OEM Bosch Part
$3.91
5
3604460555 Cord | Genuine OEM Bosch Part
$10.84
6
2600707060 Grommet | Genuine OEM Bosch Part
$5.09
13
2600905032 Deep-groove Ball Bearing by Bosch
$3.91
14
1600910018 Needle Bushing by Bosch
$3.91
18
2603410001 Cheese Head Screw by Bosch
$4.89
32
2603490025 Torx Oval-head Screw by Bosch
$3.91
39
2600100627 Shim | Genuine OEM Bosch Part
$3.91
45
2916650001 C-clip | Genuine OEM Bosch Part
$3.91
46
3608571511 Chuck Wrench by Bosch
$4.89
7
3608571511 Chuck Wrench by Bosch
$4.89
51
2604448060 Connecting Cable by Bosch
$3.91
53
2604448132 Connector Cable by Bosch
$3.91
54
2604448034 Connecting Cable by Bosch
$3.91
56
2604448147 Connecting Cable by Bosch
$3.91
201
2604448115 Connector Cable by Bosch
$3.91
816
2601322017 Ratchet Cap | Genuine OEM Bosch Part
$3.91
06
2601322017 Ratchet Cap | Genuine OEM Bosch Part
$3.91
825
2910611006 Sheet Metal Screw by Bosch
$3.91
827
1617200062 Change-over Switch by Bosch
$27.97
828
2910611020 Sheet Metal Screw by Bosch
$4.89
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

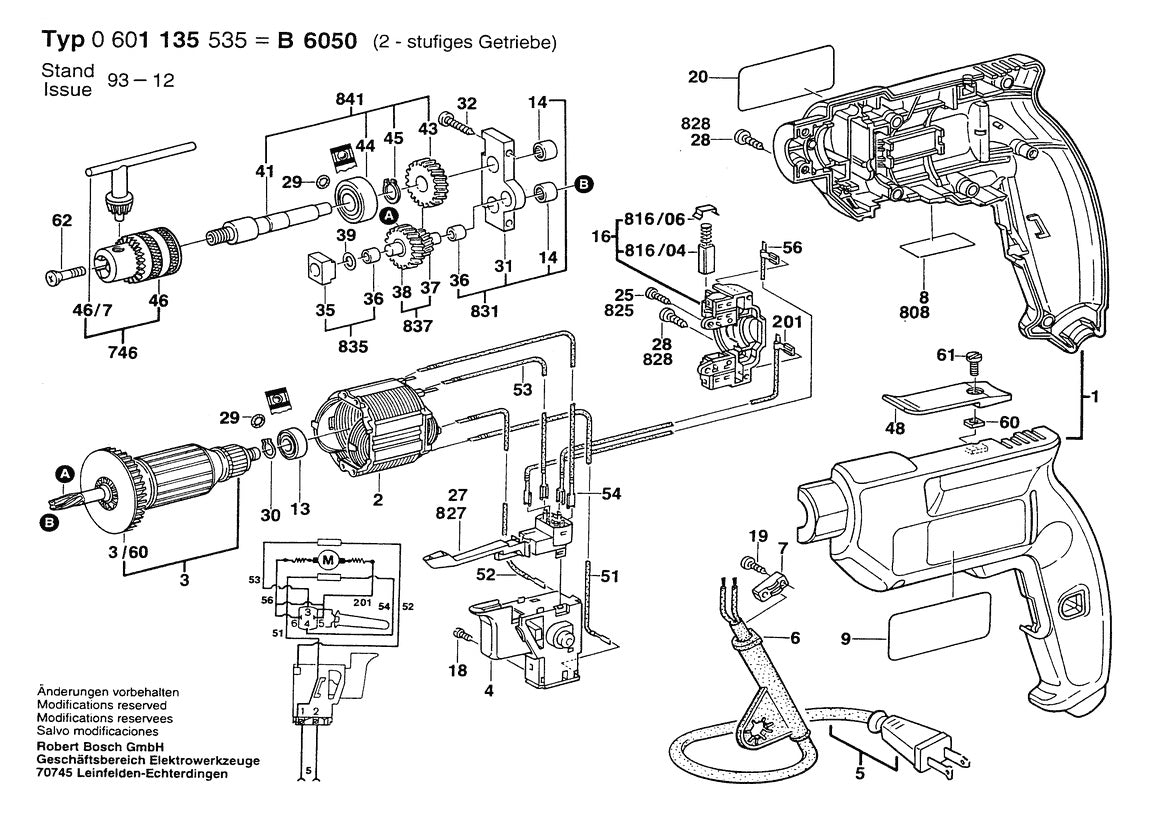

View the Bosch 0601135535 Bosch 3 parts diagram with labeled components and matching parts list. Easily find the part number you need to order.
