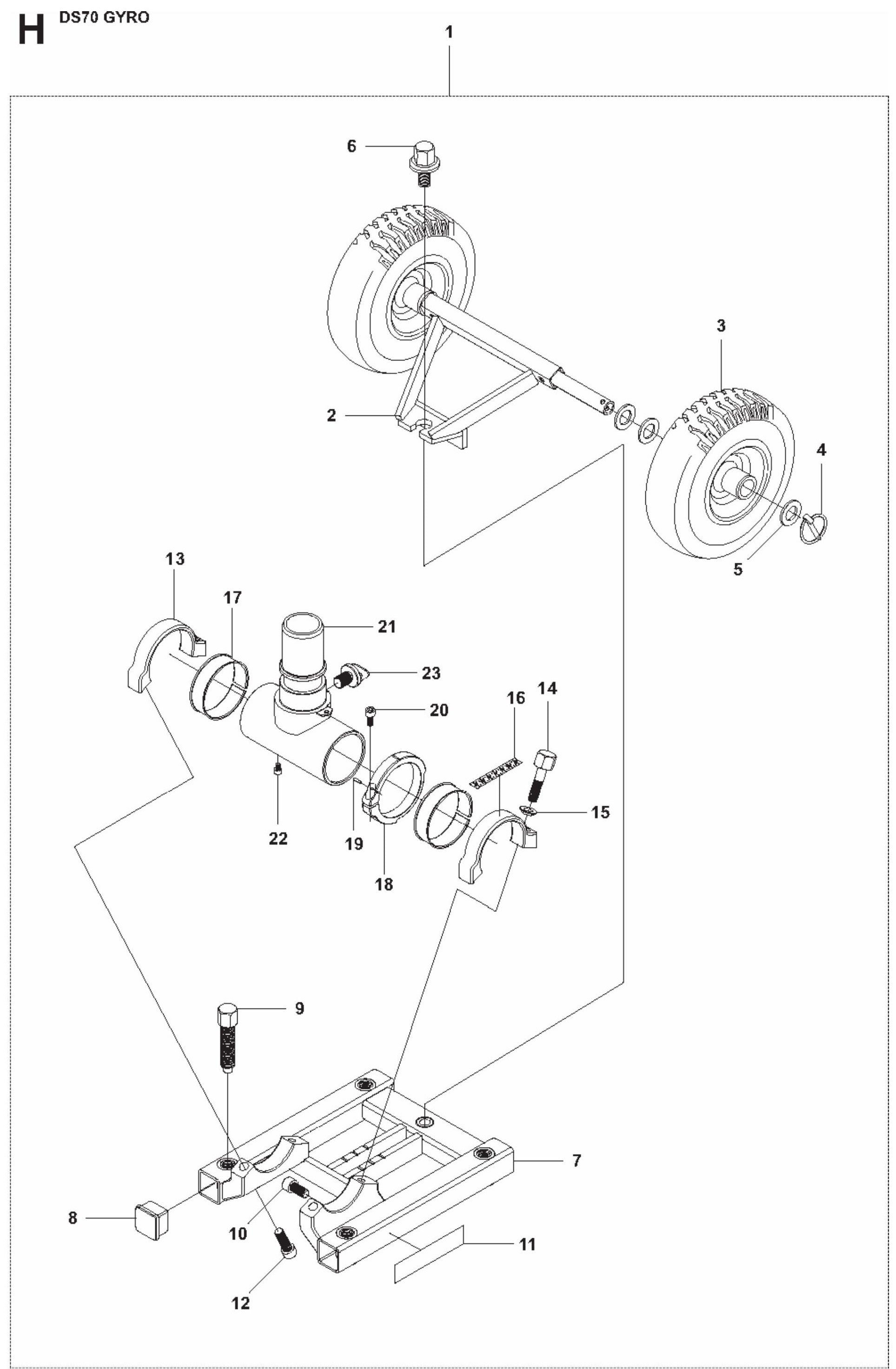

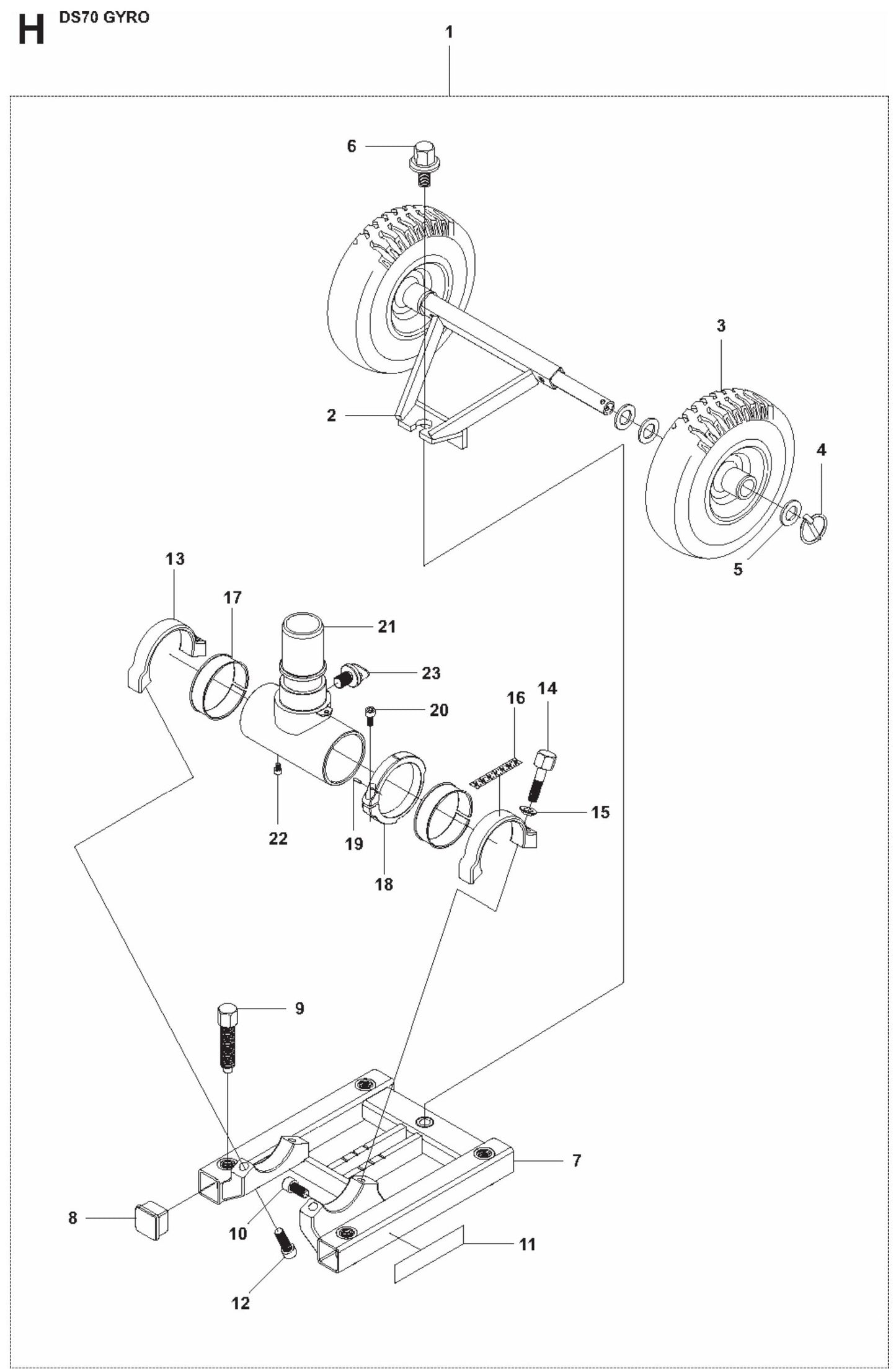

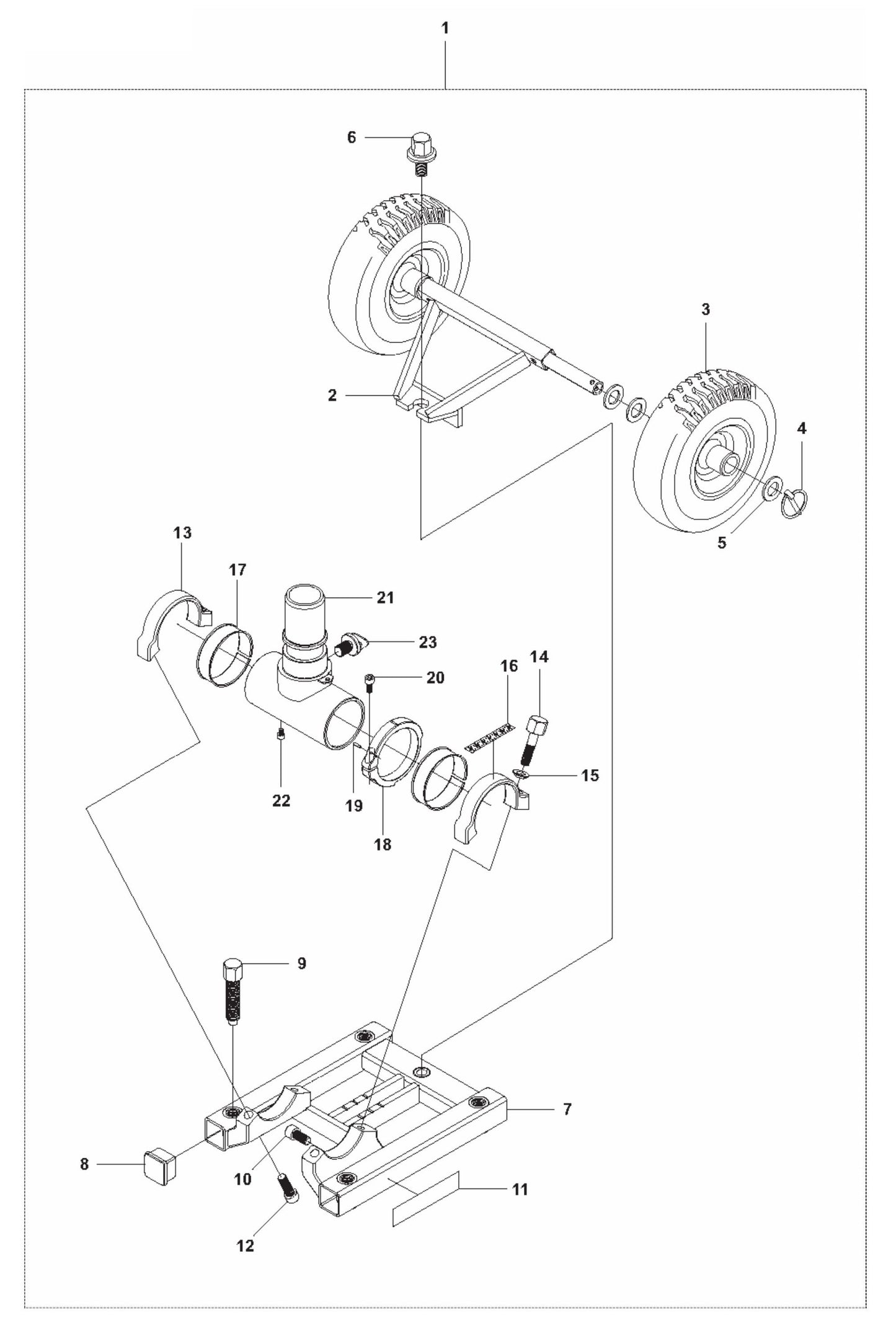

DS70 Gyro Base Plate Assembly-2 Parts

DS70 Gyro Base Plate Assembly-2 Parts

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
504909101 Foot Plate for DS 70 GYRO Core Drill Stand by Husqvarna
Call for Price call for price call for price
2
504909114 Plate for DS 70 GYRO Core Drill Stand by Husqvarna
Call for Price call for price call for price
3
531140624 WHEEL FOR CORE DRILL BY HUSQVARNA
$117.97
4
531140623 R-CLIP FOR CORE DRILL BY HUSQVARNA
$7.26
5
531140627 WASHER FOR CORE DRILL BY HUSQVARNA
$8.70
6
531140743 SCREW FOR CORE DRILL BY HUSQVARNA
$61.21
7
504909111 Foot Plate for DS 70 GYRO Core Drill Stand by Husqvarna
Call for Price call for price call for price
8
531140620 PLUG FOR CORE DRILL BY HUSQVARNA
$5.75
9
531140618 ADJUSTMENT SCREW FOR CORE DRILL BY HUSQVARNA
$19.63
10
504909113 Foot Plate for DS 70 GYRO Core Drill Stand by Husqvarna
$10.14
11
504021002 DECAL FOR CORE DRILL BY HUSQVARNA
$32.72
12
504909112 Foot Plate for DS 70 GYRO Core Drill Stand by Husqvarna
Call for Price call for price call for price
13
504909103 Plate for DS 70 GYRO Core Drill Stand by Husqvarna
Call for Price call for price call for price
14
504900601 SCREW FOR CORE DRILL BY HUSQVARNA
$36.73
15
504909102 WASHER FOR CORE DRILL BY HUSQVARNA
$25.40
16
504909110 Plate for DS 70 GYRO Core Drill Stand by Husqvarna
Call for Price call for price call for price
17
504909104 BRASS RING FOR CORE DRILL BY HUSQVARNA
$198.65
18
504909106 Plate for DS 70 GYRO Core Drill Stand by Husqvarna
Call for Price call for price call for price
19
504909108 STOP PIN FOR CORE DRILL BY HUSQVARNA
$4.99
20
504909107 SCREW FOR CORE DRILL BY HUSQVARNA
$5.86
21
504904601 Guide for DS 70 GYRO Core Drill Stand by Husqvarna
Call for Price call for price call for price
22
504909109 SCREW FOR CORE DRILL BY HUSQVARNA
$3.85
23
504909105 SCREW FOR CORE DRILL BY HUSQVARNA
$4.95
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
