BBX7600N Volute Case, Cushion, Fuel Tank Assembly Parts

BBX7600N Volute Case, Cushion, Fuel Tank Assembly Parts

Skip to product information
1 of 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
6671007001 VOLUTE CASE 1 ASS'Y, BBX7600 BY MAKITA
$58.00
2
6671005010 SQUARE NUT, BBX7600 BY MAKITA
$3.99
20
6671005010 SQUARE NUT, BBX7600 BY MAKITA
$3.99
3
0140059220 SCREW ASSY M5X65, BBX7600 BY MAKITA
$5.99
4
6671002000 DAMPER 1 COMP., BBX7600 BY MAKITA
$22.62
5
0200059910 WASHER M5, BBX7600 BY MAKITA
$5.99
6
0043105400 P.H. SCREW M5X40, BBX7600 BY MAKITA
$3.99
7
0150059730 TAPPING SCREW 5X25, BBX7600 BY MAKITA
$5.99
8
6671001000 INLET COVER COMP., BBX7600 BY MAKITA
$10.32
9
0150059800 TAPING SCREW M5X18, BBX7600 BY MAKITA
$5.99
10
6671003000 DAMPER 2 COMPL., BBX7600 BY MAKITA
$11.91
11
0119069690 S.H. BOLT M6X40, BBX7600 BY MAKITA
$5.99
12
2401381 IMPELLER, BBX7600 BY MAKITA
$37.42
13
0563379990 WIRE BAND, BBX7600 BY MAKITA
$5.99
14
6671500400 ELBOW, BBX7600 BY MAKITA
$10.29
15
2136457 O RING 93, PM7650H BY MAKITA
$5.99
15
0240989990 O RING, BBX7600 BY MAKITA
$5.99
16
2666498 S.H. BOLT M6X30, BBX7600 BY MAKITA
$5.99
17
6671500200 BASE 1, BBX7600 BY MAKITA
$7.76
18
6671500300 BASE 2, BBX7600 BY MAKITA
$7.76
19
6671008002 VOLUTE CASE 2 ASS'Y, BBX7600 BY MAKITA
$50.60
21
9312026 HEX NUT M5, LS1016L BY MAKITA
$3.99
21
0170059950 NUT M5, BBX7600 BY MAKITA
$5.99
31
4121197 TUBE GUARD 20160, BBX7600 BY MAKITA
$5.99
32
1683966 BREATHER, BBX7600 BY MAKITA
$8.03
33
1254729 FUEL TANK CAP ASS'Y, BHX2500 BY MAKITA
$22.86
34
1687871 TUBE CPL., BBX7600 BY MAKITA
$29.50
34
0851339960 TUBE, BBX7600 BY MAKITA
$10.91
35
3459204 HOSE CLAMP, EM4251 BY MAKITA
$3.99
36
1635329 FUEL FILTER, BBX7600 BY MAKITA
$18.30
36
5806502900 FUEL FILTER, BBX7600 BY MAKITA
$10.17
37
1234210 FUEL TANK ASS'Y, BBX7600 BY MAKITA
$123.25
37
6673006001 FUEL TANK ASS'Y, BBX7600CA BY MAKITA
$91.00
37
6673006000 FUEL TANK ASS'Y, BBX7600CA BY MAKITA
$57.80
38
6672500300 ROCK RIVET, BBX7600 BY MAKITA
$5.99
189
6672500300 ROCK RIVET, BBX7600 BY MAKITA
$5.99
39
6672002000 GUARD COMPL, BBX7600 BY MAKITA
$10.32
40
0043706120 SCREW ASSY M6X12, BBX7600 BY MAKITA
$3.99
41
0023706000 FLANGE NUT, BBX7600 BY MAKITA
$5.99
42
6672001000 FRAME COMPL., BBX7600 BY MAKITA
$52.48
43
0140059210 SCREW ASSY M5X16, BBX7600 BY MAKITA
$5.99
44
6672500200 ROCK RIVET, BBX7600 BY MAKITA
$5.99
45
6672003000 CUSHION CPL., BBX7600 BY MAKITA
$28.54
188
6672500400 FAN COVER, BBX7600 BY MAKITA
$5.99
22
Call for Price call for price call for price
22
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

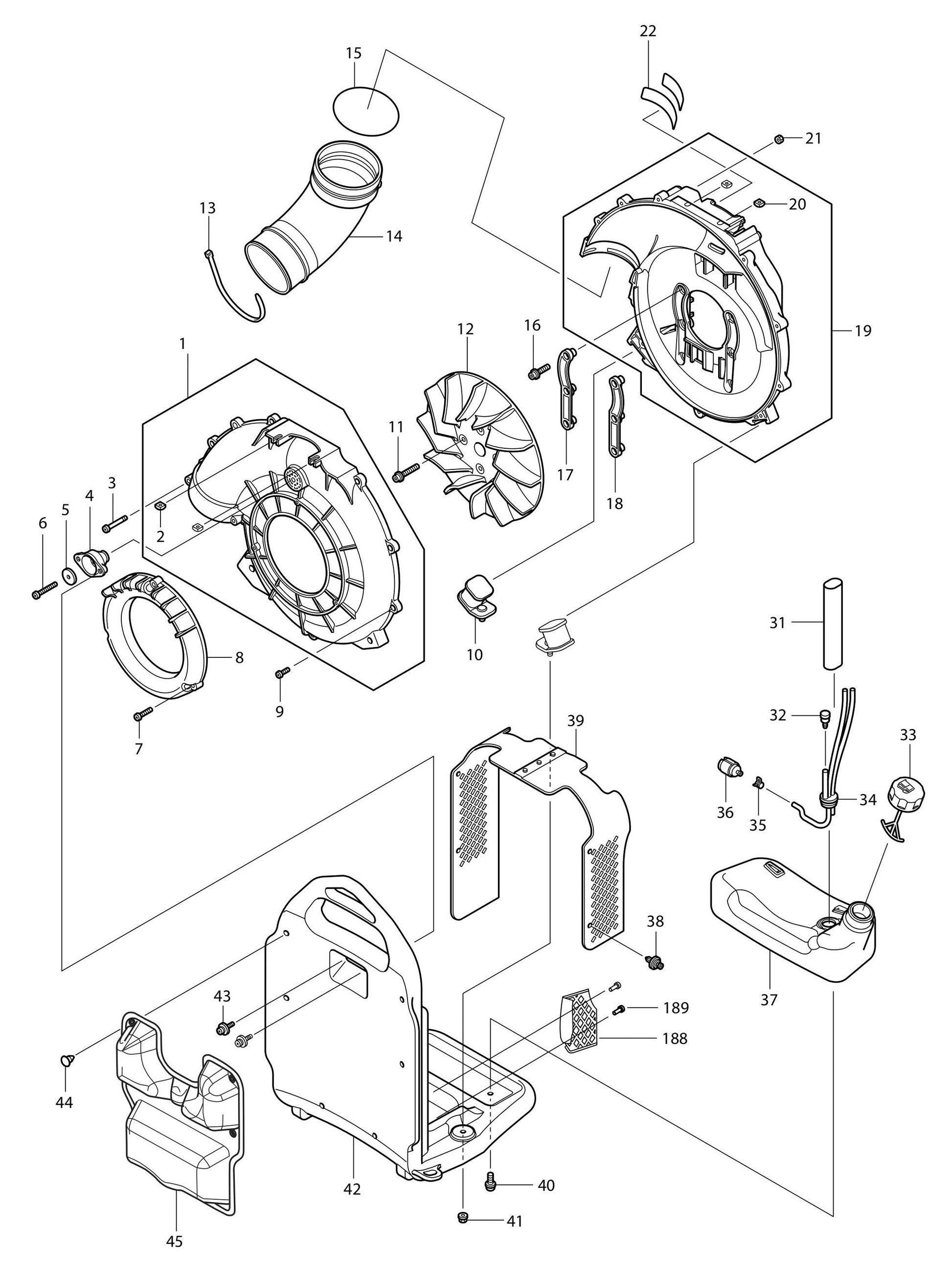

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
