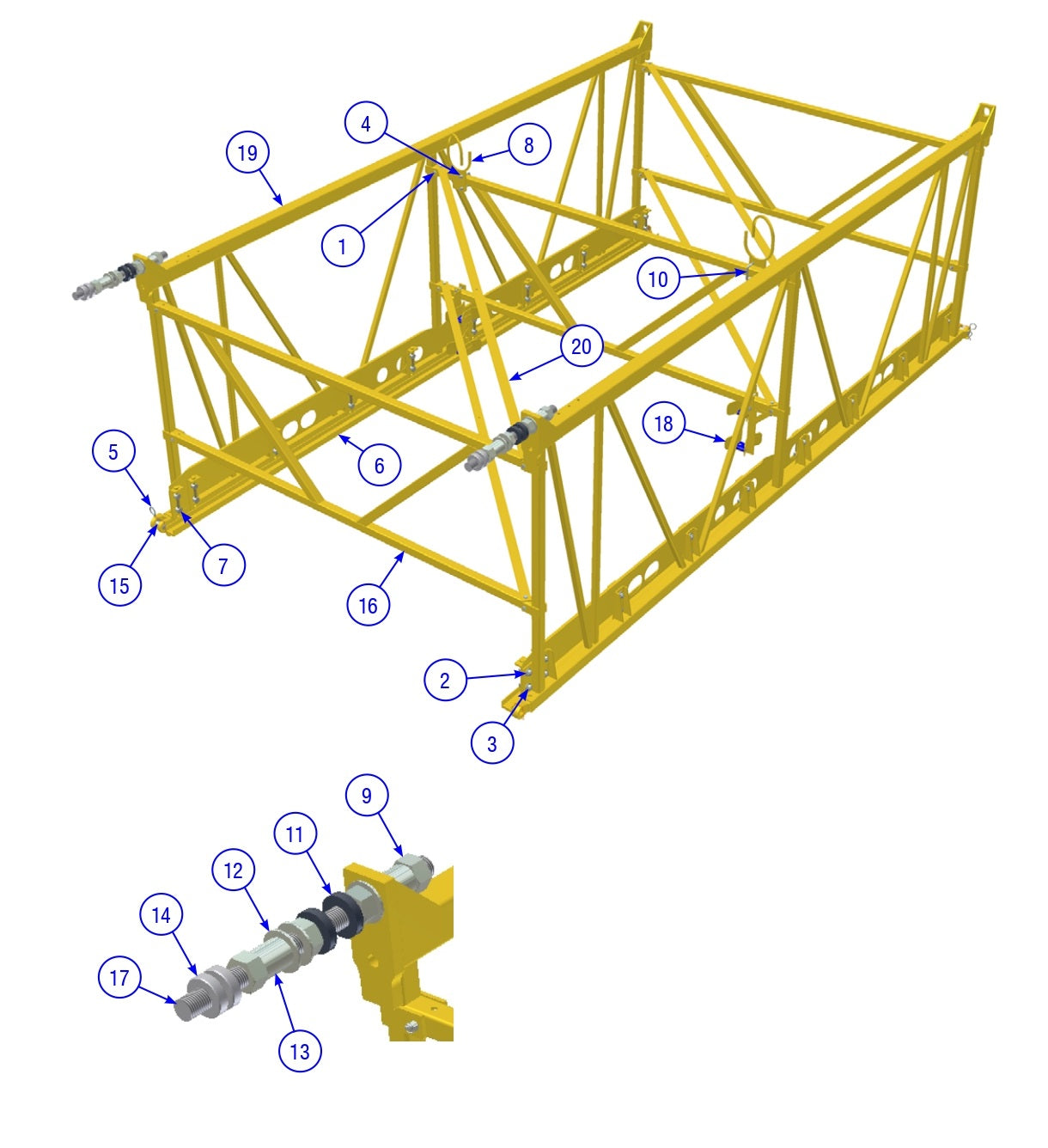

BDF6048B 12’ Frame Assembly Parts by Allen Engineering

BDF6048B 12’ Frame Assembly Parts by Allen Engineering

  • BDF6048B 12’ Frame Assembly Parts by Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
010085 Fstn, Fw 1/2 Grd8 (Od 1.25) by Allen Enginnering
$4.95
3
010106 Fstn, Nut Hex 1/2-13 Grd8 by Allen Enginnering
$4.95
4
010464 Fstn, Nut Nylok 3/8-16 Gr 8 by Allen Enginnering
$4.95
5
022110 Fstn, Pin Hair 3/16 X 3-3/4 by Allen Enginnering
$5.40
7
052108 Lug, Adjusting, Bdf Track Rail by Allen Enginnering
$39.84
9
052156 Fstn, Hex Nut 1 1/4-7 Gr8 by Allen Enginnering
$9.96
11
052168 Washer Set, 1-5/16 Spherical by Allen Enginnering
$154.63
12
052169 Fstn, Fw 1-1/4 (Wsae125) by Allen Enginnering
$7.20
13
052171 Spacer, 1-3/4 X 3/16 X 2 Bdf by Allen Enginnering
$31.13
14
052172 Bearing, Thrust 1 1/4 by Allen Enginnering
$161.35
15
052233 Wldmt, Clevis Pin Bdf by Allen Enginnering
$98.60
16
052418 Wldmt, Cross Frame 6048 by Allen Enginnering
$717.12
17
052472 All Thread, 1 1/4-7 Gr8 X 18 Bdf by Allen Enginnering
$186.00
18
052516 Assy, Chain Hanger 6048 Bdf by Allen Enginnering
$1,716.00
1
010042 FSTN, HHCS 3/8-16 X 2-1/2 GR 8 by Allen Engineering
$3.99
6
052107 WLDMT, 12 FT RAIL ASSY BDF by Allen Engineering
$2,695.20
20
052604 BRACE, ANGLE 100.15" F/ 12 FT 6048B by Allen Engineering
$193.20
View full details
