BDF6048B 4’ Frame Assembly Parts by Allen Engineering

BDF6048B 4’ Frame Assembly Parts by Allen Engineering

  • BDF6048B 4’ Frame Assembly Parts by Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
010036 Fstn, Hhcs 3/8-16 X 1 Grd8 by Allen Enginnering
$4.95
2
010042 FSTN, HHCS 3/8-16 X 2-1/2 GR 8 by Allen Engineering
$3.99
3
010085 Fstn, Fw 1/2 Grd8 (Od 1.25) by Allen Enginnering
$4.95
4
010106 Fstn, Nut Hex 1/2-13 Grd8 by Allen Enginnering
$4.95
5
010464 Fstn, Nut Nylok 3/8-16 Gr 8 by Allen Enginnering
$4.95
6
022110 Fstn, Pin Hair 3/16 X 3-3/4 by Allen Enginnering
$5.40
7
052108 Lug, Adjusting, Bdf Track Rail by Allen Enginnering
$39.84
8
052156 Fstn, Hex Nut 1 1/4-7 Gr8 by Allen Enginnering
$9.96
9
052168 Washer Set, 1-5/16 Spherical by Allen Enginnering
$154.63
10
052169 Fstn, Fw 1-1/4 (Wsae125) by Allen Enginnering
$7.20
11
052171 Spacer, 1-3/4 X 3/16 X 2 Bdf by Allen Enginnering
$31.13
12
052172 Bearing, Thrust 1 1/4 by Allen Enginnering
$161.35
14
052233 Wldmt, Clevis Pin Bdf by Allen Enginnering
$98.60
15
052418 WLDMT, CROSS FRAME 6048 by Allen Engineering
$768.00
16
052472 All Thread, 1 1/4-7 Gr8 X 18 Bdf by Allen Enginnering
$186.00
View full details

Frequently asked questions

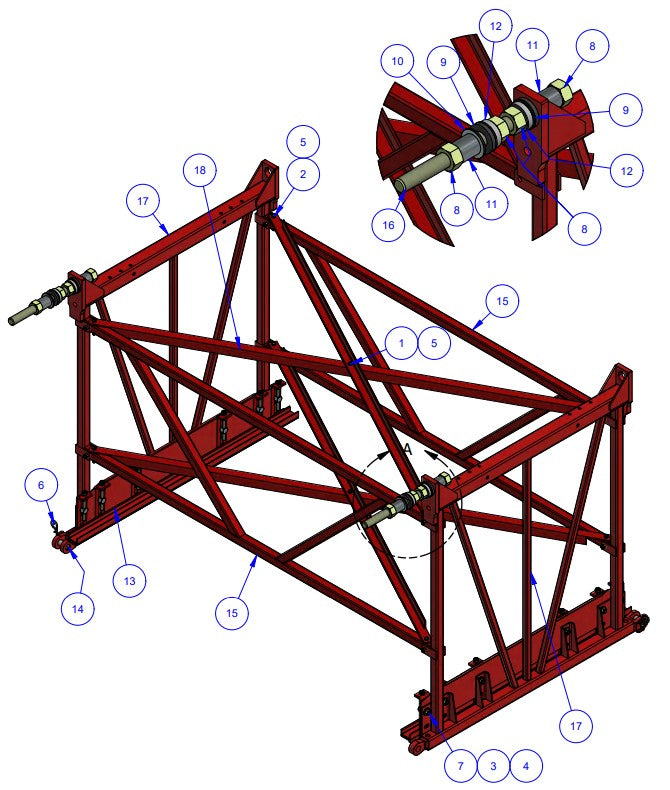

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
