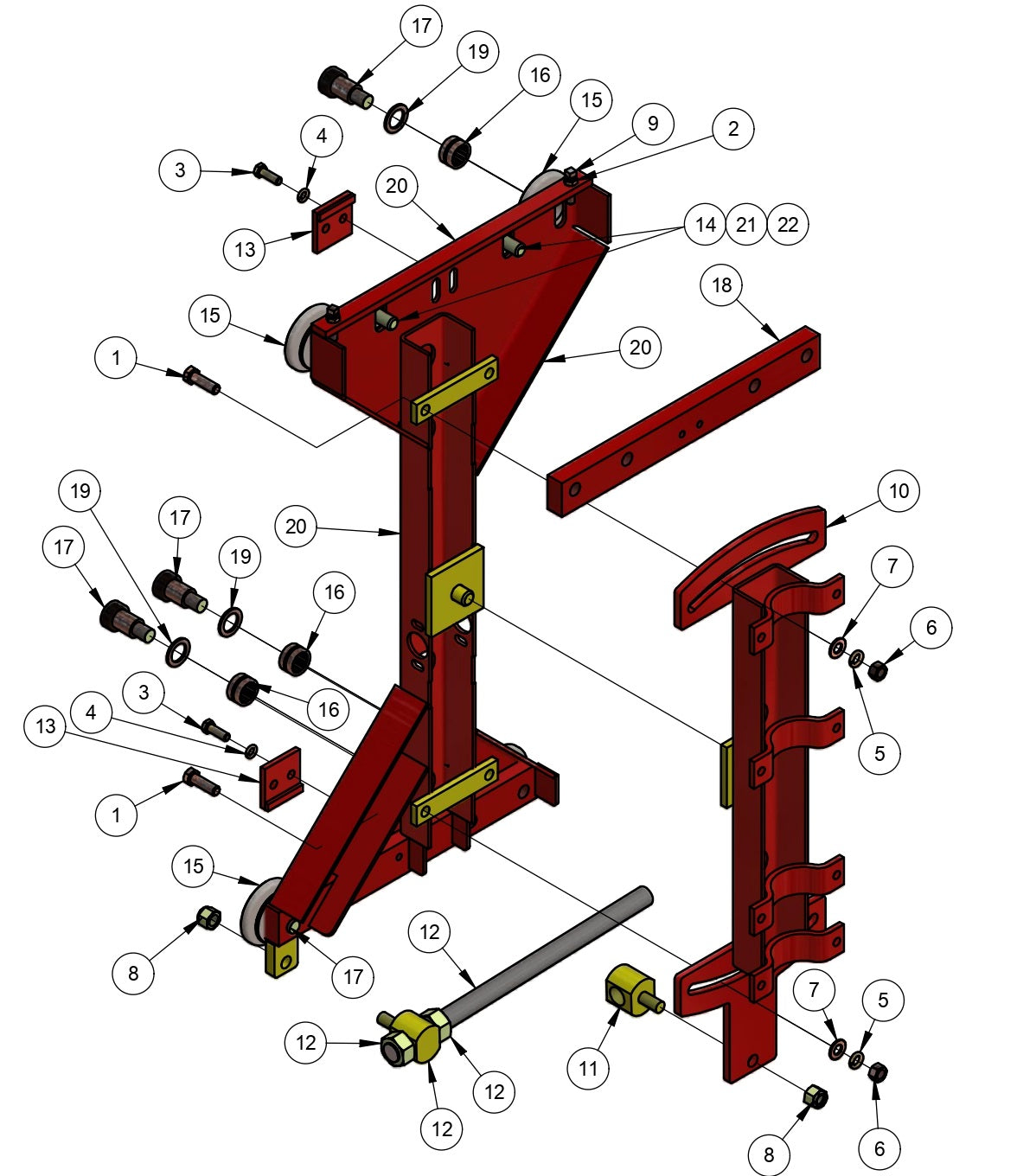

BDF6048B 6” Pivot Jack Plate Assembly Parts by Allen Engineering

BDF6048B 6” Pivot Jack Plate Assembly Parts by Allen Engineering

  • BDF6048B 6” Pivot Jack Plate Assembly Parts by Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
010002 Fstn, Hhcs 1/4-20 X 3/4 Gr8 by Allen Enginnering
$2.99
2
010050 Fstn, Nut Hex Jam 1/2-13 Grd8 by Allen Enginnering
$3.99
3
010069 Fstn Hhcs 1/2-13 X 1-1/2 Grd8 by Allen Enginnering
$4.95
4
010093 Fstn, Lw 1/2 Gr8 by Allen Enginnering
$4.95
5
010095 Fstn, Lw 5/8 Grd8 by Allen Enginnering
$4.95
6
010110 Fstn, Nut Hex 5/8-11 Gr 8 by Allen Enginnering
$4.95
9
050233 Fstn, Shss Bolt 1/2-13 X 2 (Zinc) by Allen Enginnering
$7.20
11
052153 Adj. Lug, Threaded Bdp by Allen Enginnering
$280.13
15
053401 Wheel, Leg Plate - Bdf by Allen Enginnering
$160.23
8
049351 FSTN, NUT 3/4-10 GR 8 NYLOCK HEX by Allen Engineering
$5.99
13
052166 WELDT, CLAMP PLATE BDP by Allen Engineering
$63.60
16
053402 BEARING, MR20 MCGILL BDP by Allen Engineering
$82.80
17
053404 FSTN, SHLDR BLT 1-1/4X1-1/2 7/8-9TH by Allen Engineering
$220.80
19
053411 WASHER, 1-1/4 ID X 10 GA. by Allen Engineering
$12.00
20
053409 LEG PLATE, PIVOT LH 36" FRAME by Allen Engineering
$1,749.60
20
053410 LEG PLATE, PIVOT RH 36" FRAME by Allen Engineering
$1,648.80
