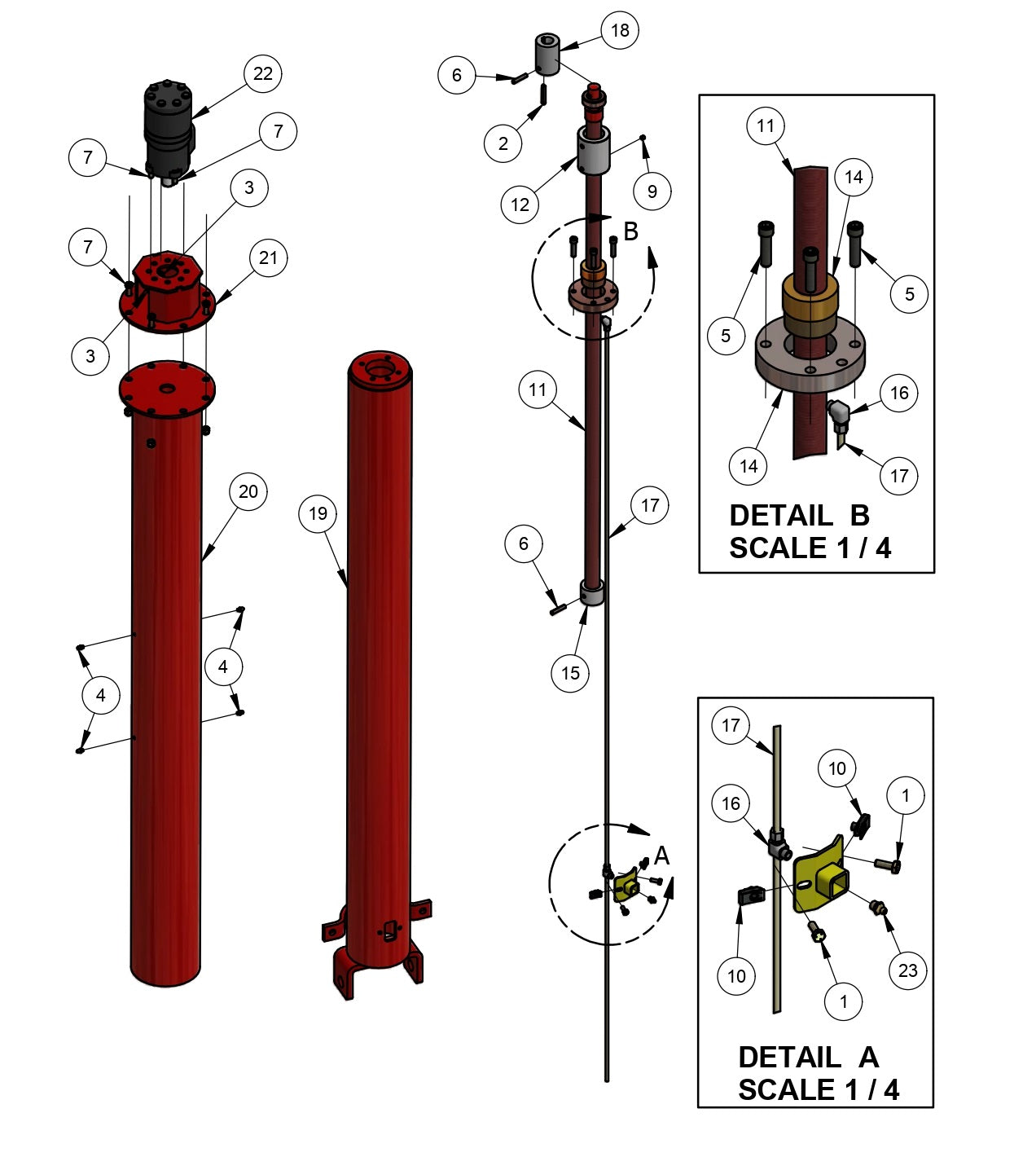

BDF6048B 6” Power Jack Assembly Parts by Allen Engineering

BDF6048B 6” Power Jack Assembly Parts by Allen Engineering

  • BDF6048B 6” Power Jack Assembly Parts by Allen Engineering
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
010002 Fstn, Hhcs 1/4-20 X 3/4 Gr8 by Allen Enginnering
$2.99
2
010307 Key, 1/4" Sq X 2" Lg by Allen Enginnering
$3.99
3
010464 Fstn, Nut Nylok 3/8-16 Gr 8 by Allen Enginnering
$4.95
4
010513 Fitting, 1/4-28 Straight Grease by Allen Enginnering
$2.99
7
032875 Fstn, Hhcs 3/8-16 X 1 1/4 Gr 8 by Allen Enginnering
$3.99
8
040280 Bearing, Thrust For Pitch Control by Allen Enginnering
$77.31
11
052120 Wldmt, Jack Screw Bdf by Allen Enginnering
$1,051.03
14
052434 Assembly, Bushing 6048 Bdf by Allen Enginnering
$1,233.67
23
201163 Fitting, 1/8-27 Npt Straight Grease by Allen Enginnering
$4.95
5
016877 FSTN, SHCS 3/8-16 X 1-1/2 by Allen Engineering
$3.99
12
052121 STOP, UPPER BDF by Allen Engineering
$372.00
13
052142 WLDMT, GREASE PLATE 6048 BDF by Allen Engineering
$324.00
15
052436 STOP, JACK F/BDF by Allen Engineering
$153.60
16
052439 FTG, 90 DEG COMP 1/8" X 1/4" by Allen Engineering
$63.60
17
052440 TUBING, 1/4" NYLON by Allen Engineering
$5.99
21
053413 WELDT, MOTOR MOUNT F/ BDJ JACKS by Allen Engineering
$336.00
22
059707 MOTOR, HYDRAULIC BDF RH by Allen Engineering
$1,700.40
