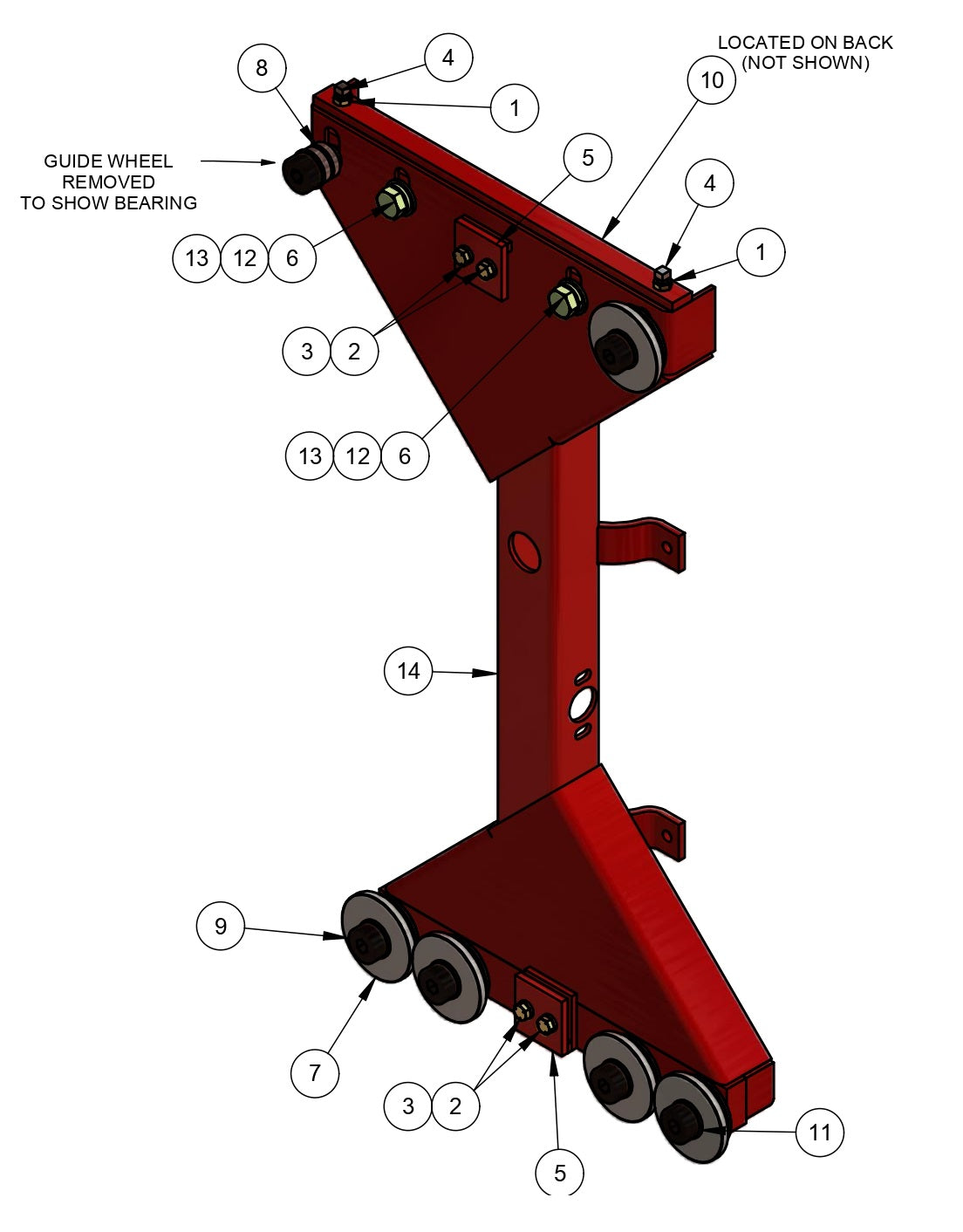

BDF6048B 6” Rigid Jack Plate Assembly Parts by Allen Engineering

BDF6048B 6” Rigid Jack Plate Assembly Parts by Allen Engineering

  • BDF6048B 6” Rigid Jack Plate Assembly Parts by Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
010050 Fstn, Nut Hex Jam 1/2-13 Grd8 by Allen Enginnering
$3.99
2
010069 Fstn Hhcs 1/2-13 X 1-1/2 Grd8 by Allen Enginnering
$4.95
3
010093 Fstn, Lw 1/2 Gr8 by Allen Enginnering
$4.95
4
050233 Fstn, Shss Bolt 1/2-13 X 2 (Zinc) by Allen Enginnering
$7.20
7
053401 Wheel, Leg Plate - Bdf by Allen Enginnering
$160.23
5
052166 WELDT, CLAMP PLATE BDP by Allen Engineering
$63.60
8
053402 BEARING, MR20 MCGILL BDP by Allen Engineering
$82.80
9
053404 FSTN, SHLDR BLT 1-1/4X1-1/2 7/8-9TH by Allen Engineering
$220.80
11
053411 WASHER, 1-1/4 ID X 10 GA. by Allen Engineering
$12.00
View full details
