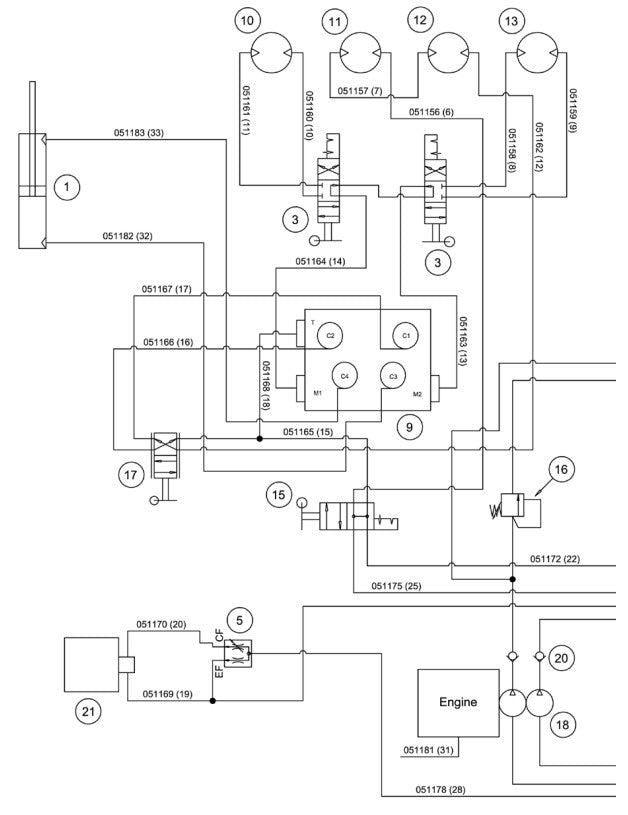

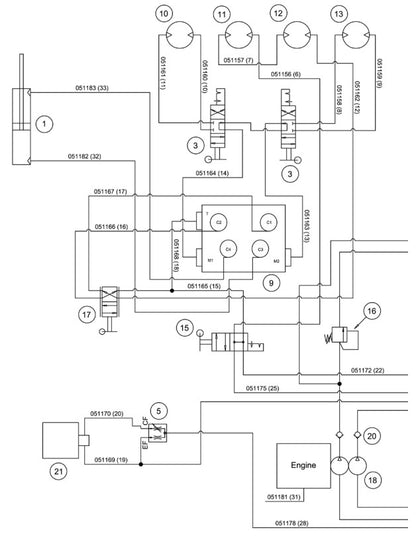

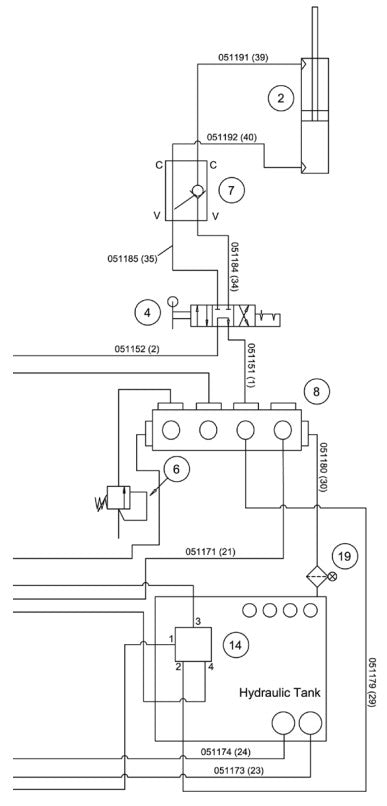

BDF6048B Carriage Hydraulic Schematic Assembly Parts by Allen Engineering

BDF6048B Carriage Hydraulic Schematic Assembly Parts by Allen Engineering

  • BDF6048B Carriage Hydraulic Schematic Assembly Parts by Allen Engineering
  • BDF6048B Carriage Hydraulic Schematic Assembly Parts by Allen Engineering
1 2
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
050303 SKEW CYLINDER 1-1/2"X6"X.75" by Allen Engineering
$742.80
3
050450 Valve, Control (Brand A010T4Ld) by Allen Enginnering
$692.47
4
050450 Valve, Control (Brand A010T4Ld) by Allen Enginnering
$692.47
5
050451 Valve, Flow Control (Brand Fc-10Sae by Allen Enginnering
$518.79
6
050453 VALVE, RELIEF (BRAND RL10-2000) by Allen Engineering
$426.00
9
050462 Manifold Assembly Block (Daman) by Allen Enginnering
$5,824.36
10
050464 Motor, Hydraulic Bdf by Allen Enginnering
$1,176.53
11
050464 Motor, Hydraulic Bdf by Allen Enginnering
$1,176.53
12
050464 Motor, Hydraulic Bdf by Allen Enginnering
$1,176.53
13
050464 Motor, Hydraulic Bdf by Allen Enginnering
$1,176.53
15
050467 VALVE, DIRECTIONAL BRAND A010004-JD by Allen Engineering
$720.00
18
050459 PUMP, TANDEM (BDP) by Allen Engineering
$4,084.80
19
045134 Filter, Return Line Rtf25N-D10B/S2/ by Allen Enginnering
$380.42
20
050686 CHECK VALVE BDP 1908C-1 FEMALE #8 by Allen Engineering
$475.20
21
050418 Vibrator, Rotary Hyd Series W/Motor by Allen Enginnering
$3,936.32
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
