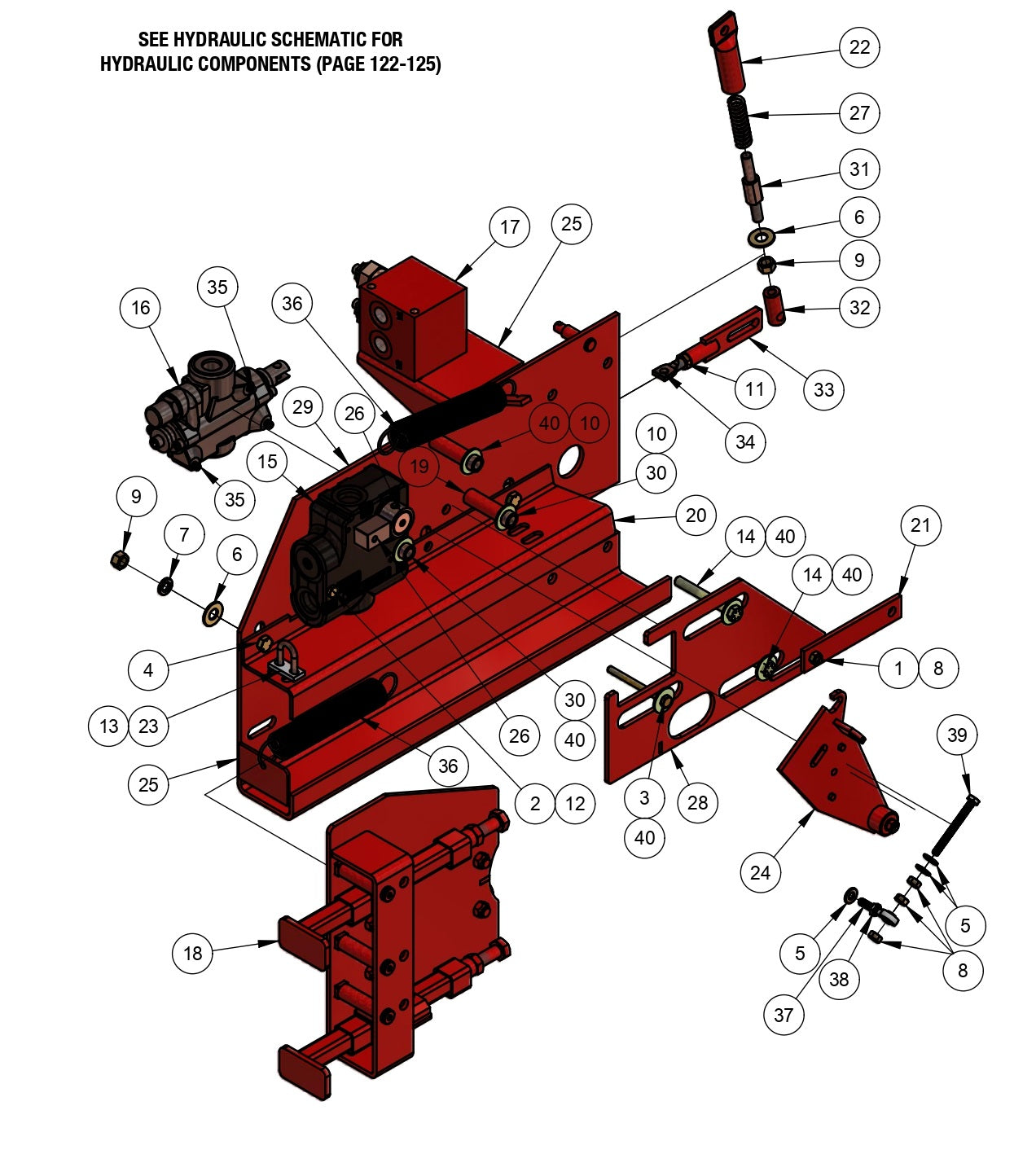

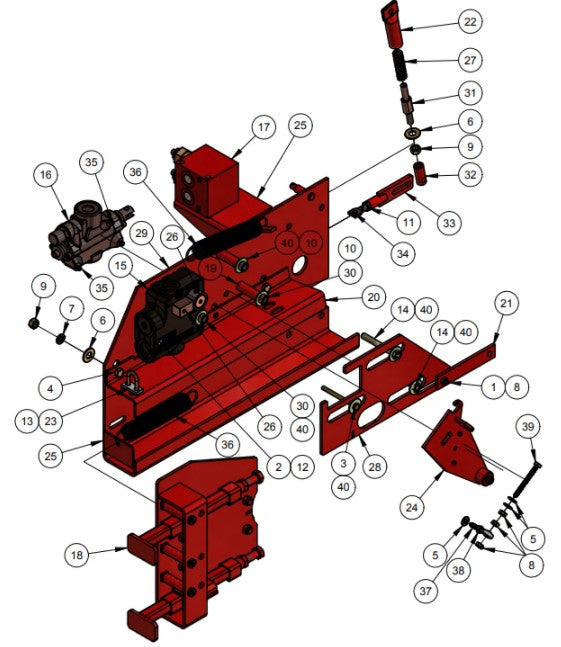

BDF6048B Carriage Shifting Mechanism Assembly Parts by Allen Engineering

BDF6048B Carriage Shifting Mechanism Assembly Parts by Allen Engineering

  • BDF6048B Carriage Shifting Mechanism Assembly Parts by Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
010002 Fstn, Hhcs 1/4-20 X 3/4 Gr8 by Allen Enginnering
$2.99
2
010009 Fstn, Hhcs 1/4-20 X 2-1/2 Grd8 by Allen Enginnering
$4.95
4
010036 Fstn, Hhcs 3/8-16 X 1 Grd8 by Allen Enginnering
$4.95
5
010081 Fstn, Fw 1/4 Grd8 by Allen Enginnering
$4.95
7
010091 Fstn, Lw 3/8 Grd8 by Allen Enginnering
$4.95
8
010098 Fstn, Nut Hex 1/4-20 Grd8 by Allen Enginnering
$4.95
9
010102 Fstn, Nut Hex 3/8-16 Grd8 by Allen Enginnering
$2.99
10
010464 Fstn, Nut Nylok 3/8-16 Gr 8 by Allen Enginnering
$4.95
11
015684 Fstn, Nut Hex Jam 3/8-16 Gr8 by Allen Enginnering
$4.95
12
020542 Fstn, Nut Stover Lock 1/4-20 by Allen Enginnering
$4.95
15
050451 Valve, Flow Control (Brand Fc-10Sae by Allen Enginnering
$518.79
16
050452 Valve, Control (Brand A01004Anr35) by Allen Enginnering
$1,457.77
23
052361 Plate, Control Cable Spacer F/Sw Pla by Allen Enginnering
$28.64
27
052380 Spring, Compression 2 3/8 by Allen Enginnering
$26.40
28
052383 Wldmt, Carriage Control Slide Bdf by Allen Enginnering
$172.56
36
060766 Spring, Extention 1"X5"X0.100 ( Use 068959) by Allen Enginnering
$115.41
18
052347 ASSEMBLY, SWITCH SLIDE by Allen Engineering
$1,063.20
19
052348 TUBE, SPACER 5/8 X 12GA X 1-15/16 by Allen Engineering
$34.80
20
052355 TRACK, TOP CONTROL CABLE MNT by Allen Engineering
$122.40
21
052357 LINK, MANUAL CONTROL CARRIAGE BDF by Allen Engineering
$68.40
22
052360 HOUSING, CARRIAGE CONTROL SPRING BDF by Allen Engineering
$132.00
25
052365 WELDT, DUAL CHAIN CONTROLLER RAIL BDF by Allen Engineering
$387.60
29
052384 PLATE, FLOW CONTROL MNT by Allen Engineering
$116.40
31
052387 BUSHING, OUTER F/CARRIAGE CONTROL by Allen Engineering
$207.60
32
052388 PIN, CARR. CONTROL OVER CENTER PIVOT by Allen Engineering
$126.00
33
052396 WLDMT, ADJ. LINKAGE CARRIAGE CONT by Allen Engineering
$489.60
34
052491 EYE BOLT, 3/8 BRIDGE DECK PAVER by Allen Engineering
$21.60
13
038444 FSTN, U-BOLT F/12QD HYD TANK by Allen Engineering
$3.99
