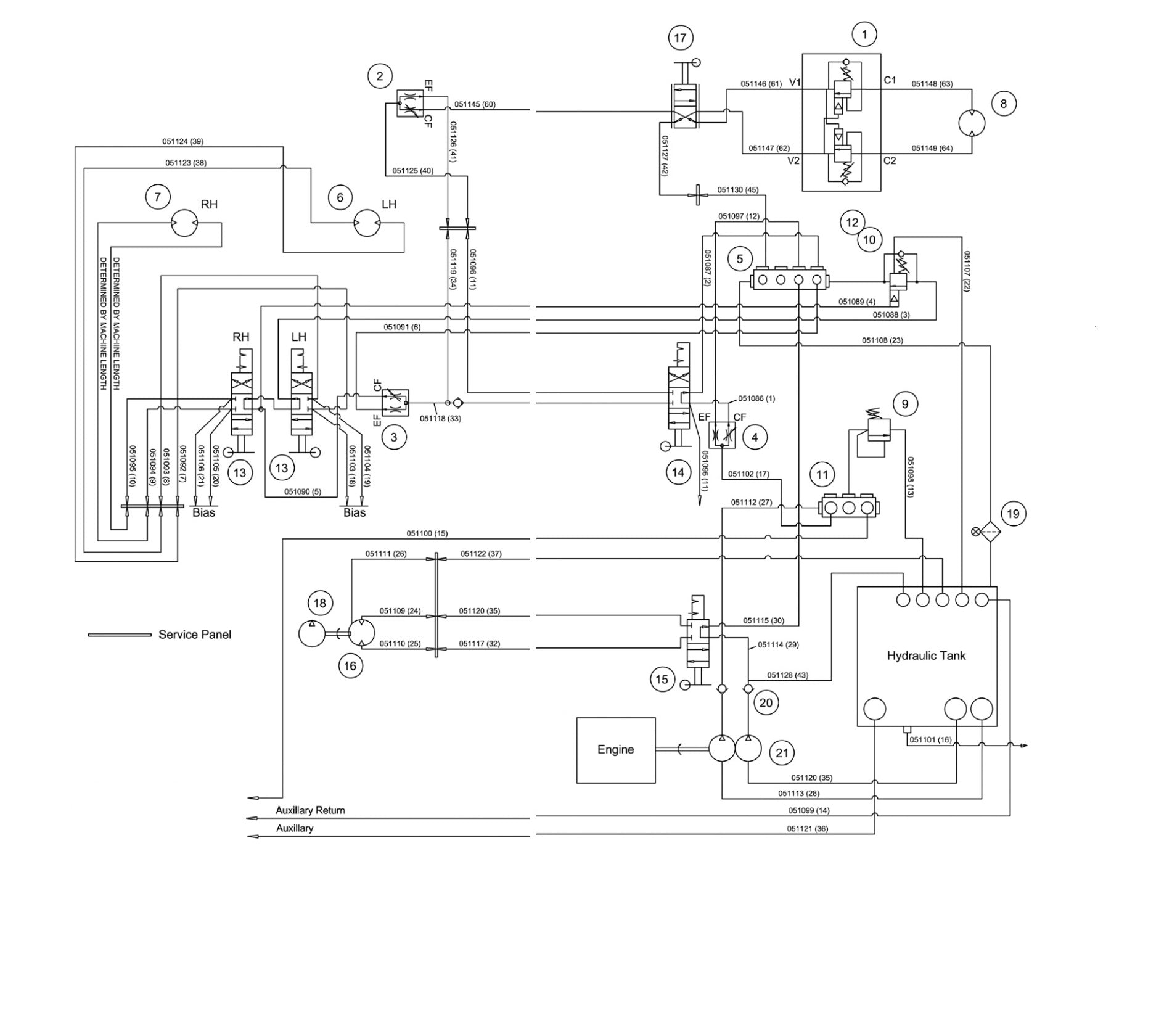

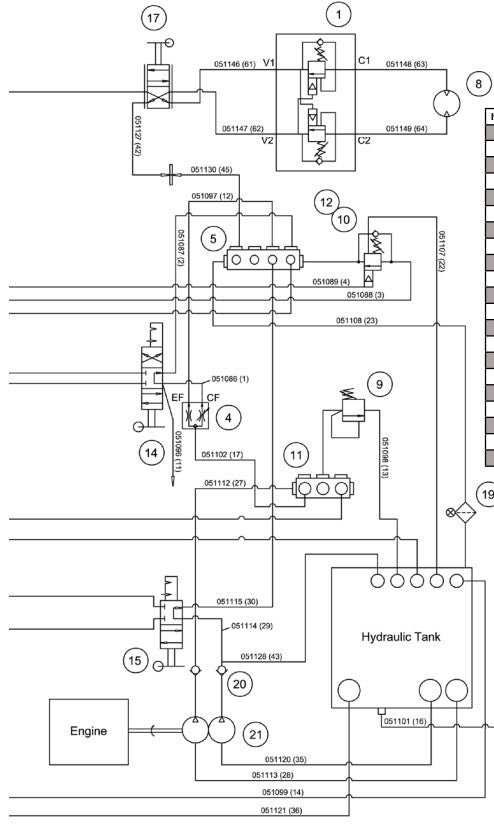

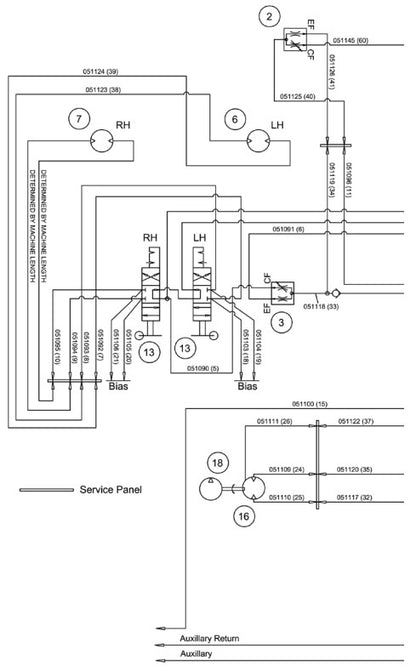

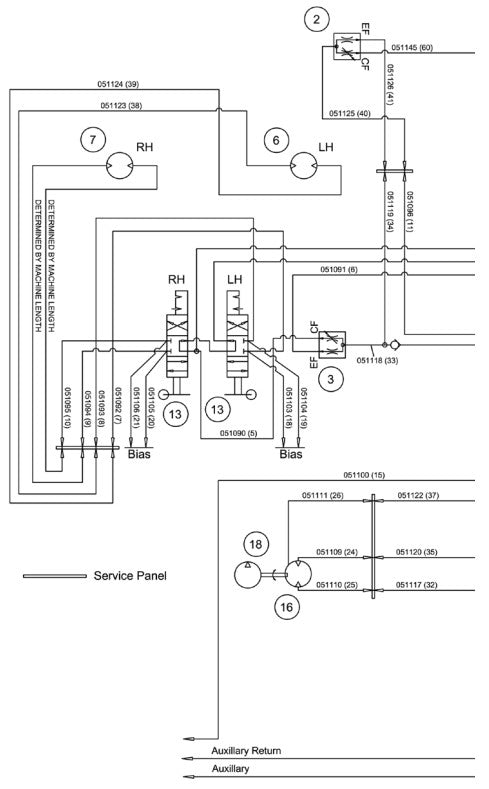

BDF6048B Mainframe Hydraulic Schematic Assembly Parts by Allen Engineering

BDF6048B Mainframe Hydraulic Schematic Assembly Parts by Allen Engineering

  • BDF6048B Mainframe Hydraulic Schematic Assembly Parts by Allen Engineering
  • BDF6048B Mainframe Hydraulic Schematic Assembly Parts by Allen Engineering
1 2
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
050452 Valve, Control (Brand A01004Anr35) by Allen Enginnering
$1,457.77
2
050458 VALVE, FLOW CONTROL(BRAND FC5110-37 by Allen Engineering
$610.80
3
050458 VALVE, FLOW CONTROL(BRAND FC5110-37 by Allen Engineering
$610.80
4
050458 VALVE, FLOW CONTROL(BRAND FC5110-37 by Allen Engineering
$610.80
6
050468 Motor, Hydraulic Bdf by Allen Enginnering
$1,253.84
7
050468 Motor, Hydraulic Bdf by Allen Enginnering
$1,253.84
8
050469 Motor, Hydraulic Vickers146-1019-00 by Allen Enginnering
$1,145.15
11
050478 HEADER, MANIFOLD (DAMAN AH0900308S) by Allen Engineering
$514.80
13
050485 VALVE, CONTROL by Allen Engineering
$841.20
14
050485 VALVE, CONTROL by Allen Engineering
$841.20
15
050485 VALVE, CONTROL by Allen Engineering
$841.20
18
029418 Pump, 6500C-R by Allen Enginnering
$713.76
19
045134 Filter, Return Line Rtf25N-D10B/S2/ by Allen Enginnering
$380.42
20
050686 CHECK VALVE BDP 1908C-1 FEMALE #8 by Allen Engineering
$475.20
21
050459 PUMP, TANDEM (BDP) by Allen Engineering
$4,084.80
View full details
