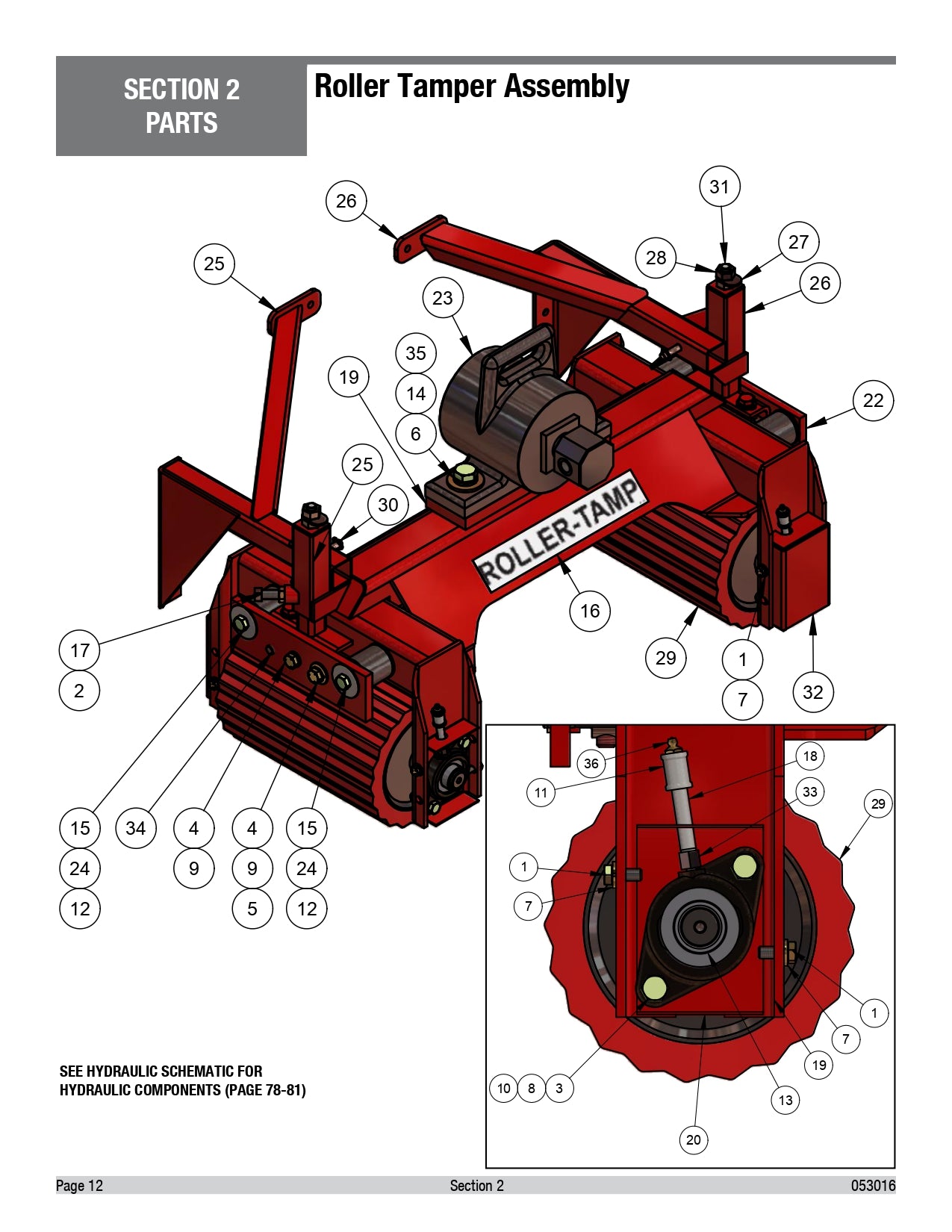

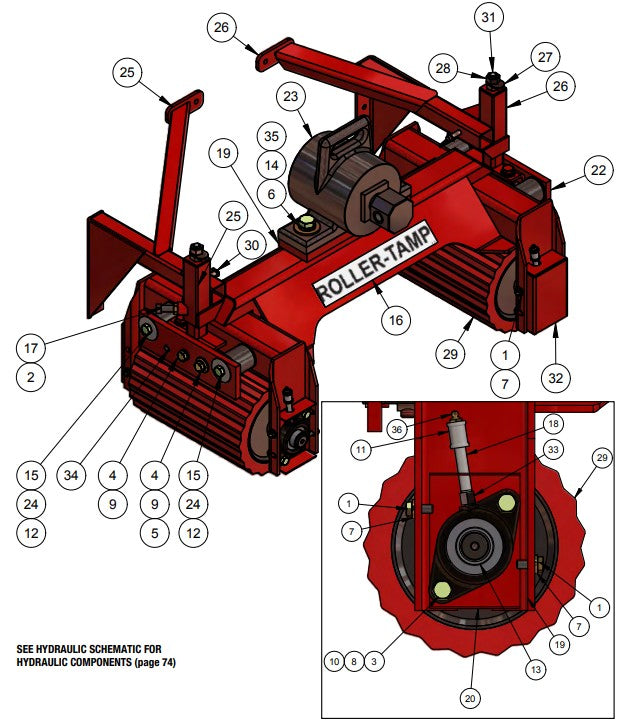

BDF6048B Roller Tamper Assembly Parts by Allen Engineering

BDF6048B Roller Tamper Assembly Parts by Allen Engineering

  • BDF6048B Roller Tamper Assembly Parts by Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
010019 Fstn, Hhcs 5/16-18 X 3/4 Gr8 by Allen Enginnering
$4.95
2
010050 Fstn, Nut Hex Jam 1/2-13 Grd8 by Allen Enginnering
$3.99
3
010054 Fstn, Hhcs 7/16-14 X 1-1/2 by Allen Enginnering
$3.99
4
010069 Fstn Hhcs 1/2-13 X 1-1/2 Grd8 by Allen Enginnering
$4.95
5
010085 Fstn, Fw 1/2 Grd8 (Od 1.25) by Allen Enginnering
$4.95
6
010087 Fstn, Fw 3/4 by Allen Enginnering
$4.95
7
010091 Fstn, Lw 3/8 Grd8 by Allen Enginnering
$4.95
8
010092 Fstn, Lw 7/16 Gr8 by Allen Enginnering
$2.99
9
010093 Fstn, Lw 1/2 Gr8 by Allen Enginnering
$4.95
10
010104 Fstn, Nut Hex 7/16-14 Grd8 by Allen Enginnering
$2.99
12
012725 Isolators, Rubber Mounts by Allen Enginnering
$50.16
13
019334 Bearing 2 Bolt Flng X 1" Bore Scjt- by Allen Enginnering
$292.45
17
050233 Fstn, Shss Bolt 1/2-13 X 2 (Zinc) by Allen Enginnering
$7.20
23
050418 Vibrator, Rotary Hyd Series W/Motor by Allen Enginnering
$3,936.32
29
050438 Wldmt, Roller Tube W/Coating (Tamper) by Allen Enginnering
$766.42
33
050449 Ftg, 1/4-28X1/8" Npt Straight Greas by Allen Enginnering
$18.48
34
052108 Lug, Adjusting, Bdf Track Rail by Allen Enginnering
$39.84
36
201163 Fitting, 1/8-27 Npt Straight Grease by Allen Enginnering
$4.95
11
010333 COUPLING 1\8 NPT STD PIPE -MERCHANT STEEL by Allen Engineering
$5.99
18
050374 FTG, 1/8 X 2 GALV NIPPLE by Allen Engineering
$18.00
25
050428 WLDMT, LH ROLLER TAMPER BRKT BDF by Allen Engineering
$1,510.80
26
050429 WLDMT, RH ROLLER TAMP MNT BRKT BDF by Allen Engineering
$1,516.80
27
050431 TAB, INDICATOR F/ROLLER TAMP BDF by Allen Engineering
$51.60
30
050443 PIN, LOCK WITH RETAINER 3/8X2-1/2 by Allen Engineering
$15.60
31
050445 WLDMT, SCREW SHAFT F/ROLLER TAMPER by Allen Engineering
$145.20
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.
