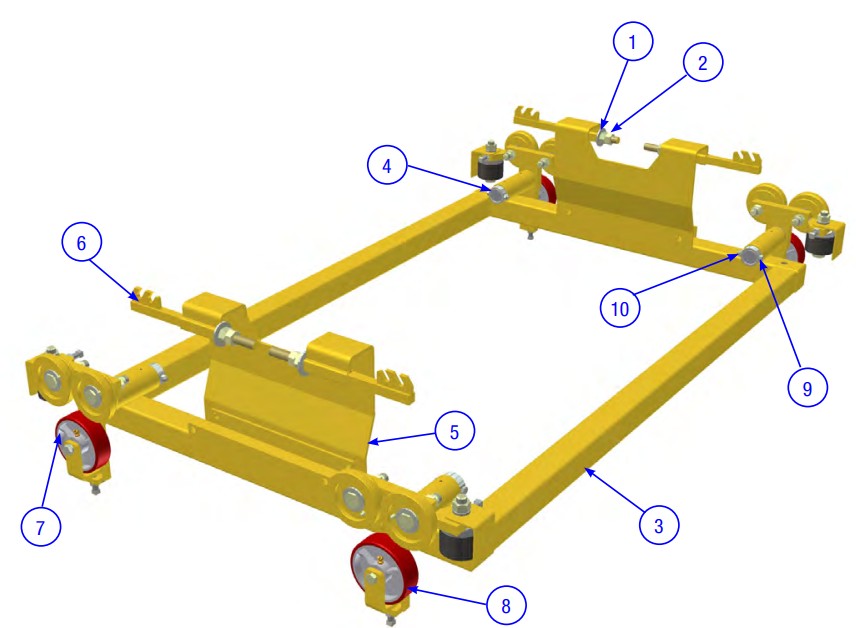

BDF6048B Top Carriage Assembly Parts by Allen Engineering

BDF6048B Top Carriage Assembly Parts by Allen Engineering

  • BDF6048B Top Carriage Assembly Parts by Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
010087 Fstn, Fw 3/4 by Allen Enginnering
$4.95
2
010112 Fstn, Nut Hex 3/4-10 Grd8 by Allen Enginnering
$3.99
6
050215 Chain Adjuster 6048 Bdf by Allen Enginnering
$136.70
7
050240 Assy, Lh Carriage Wheel & Brkt by Allen Enginnering
$2,577.15
8
050241 Assy, Rh Hand Carriage Wheel Bdf by Allen Enginnering
$2,577.15
10
020514 Fstn, Nut Stover Lock 3/8-16 by Allen Enginnering
$4.95
9
010042 FSTN, HHCS 3/8-16 X 2-1/2 GR 8 by Allen Engineering
$3.99
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
