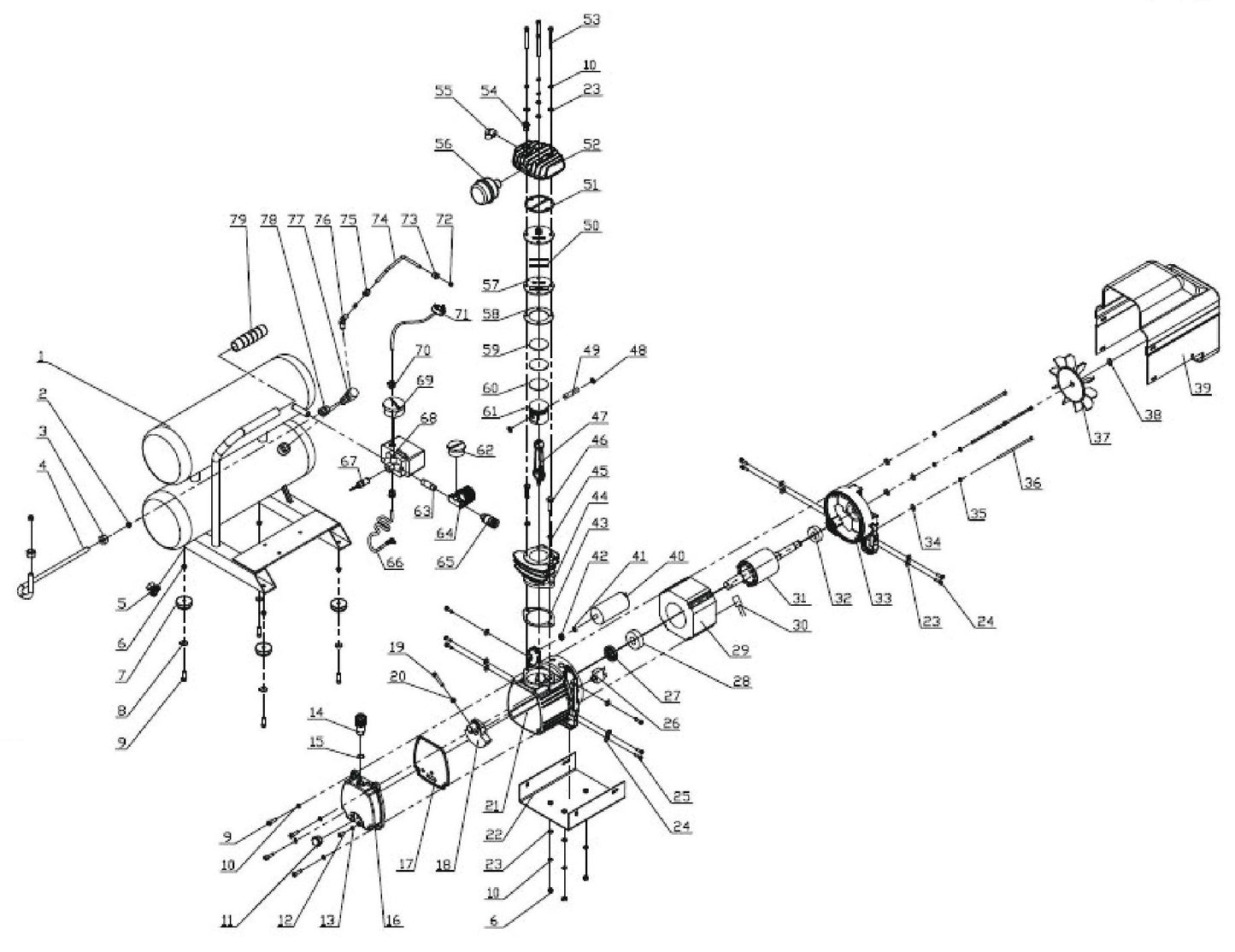

BE AC205C Air Compressor Assembly Parts by BE Power Equipment

BE AC205C Air Compressor Assembly Parts by BE Power Equipment

  • BE AC205C Air Compressor Assembly Parts by BE Power Equipment
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
42001026 METAL TUBE/ASSEMBLY - BE Power Equip.
$101.50
3
42001026 METAL TUBE/ASSEMBLY - BE Power Equip.
$101.50
4
42001026 METAL TUBE/ASSEMBLY - BE Power Equip.
$101.50
5
42001051 DRAIN VALVE - BE Power Equip.
$15.74
6
42001027 NUT / ASSEMBLY - BE Power Equip.
$10.33
7
42001027 NUT / ASSEMBLY - BE Power Equip.
$10.33
9
42001027 NUT / ASSEMBLY - BE Power Equip.
$10.33
8
42001027 WASHER /ASSEMBLY - BE Power Equip.
$10.33
10
42001028 SPRING WASHER - BE Power Equip.
$4.08
11
42001029 OIL LENS - BE Power Equip.
$1.11
12
42001030 O-RING /REAR FRAME/O-RING/BREATH VALVE/RUBBER SEALING - BE Power Equip.
$13.37
13
42001030 O-RING /REAR FRAME/O-RING/BREATH VALVE/RUBBER SEALING - BE Power Equip.
$13.37
14
42001030 O-RING /REAR FRAME/O-RING/BREATH VALVE/RUBBER SEALING - BE Power Equip.
$13.37
15
42001030 O-RING /REAR FRAME/O-RING/BREATH VALVE/RUBBER SEALING - BE Power Equip.
$13.37
16
42001030 O-RING /REAR FRAME/O-RING/BREATH VALVE/RUBBER SEALING - BE Power Equip.
$13.37
17
42001030 O-RING /REAR FRAME/O-RING/BREATH VALVE/RUBBER SEALING - BE Power Equip.
$13.37
18
42001031 CRANK SHAFT - BE Power Equip.
$9.68
21
42001032 FRAME - BE Power Equip.
$43.69
22
42001033 SUPPORT BLOCK - BE Power Equip.
$11.88
23
42001034 WASHER - BE Power Equip.
$2.59
26
42001035 OIL SEAL - BE Power Equip.
$1.29
29
42001036 THERMO PROTECTOR - BE Power Equip.
$4.49
32
42001037 FRONT FRAME - BE Power Equip.
$20.61
33
42001037 FRONT FRAME - BE Power Equip.
$20.61
34
42001037 FRONT FRAME - BE Power Equip.
$20.61
35
42001037 FRONT FRAME - BE Power Equip.
$20.61
38
42001038 COVER - BE Power Equip.
$18.92
39
42001039 SPRING WASHER /CAPACITOR - BE Power Equip.
$34.01
40
42001039 SPRING WASHER /CAPACITOR - BE Power Equip.
$34.01
53
42001040 EASY START VALVE - BE Power Equip.
$10.11
55
42001041 FILTER - BE Power Equip.
$5.45
56
42001042 VALVE PLATE - BE Power Equip.
$3.37
60
42001043 PISTON - BE Power Equip.
$5.03
62
42001044 CONNECTION - BE Power Equip.
$1.76
64
42001045 QUICK COUPLER - BE Power Equip.
$19.21
66
42001046 SAFETY VALVE/PRESSURE SWITCH - BE Power Equip.
$35.49
67
42001046 SAFETY VALVE/PRESSURE SWITCH - BE Power Equip.
$35.49
68
42001047 GAUGE - BE Power Equip.
$9.87
69
42001048 STRAIN RELIEF BUSHING - BE Power Equip.
$0.75
71
42001049 METAL TUBE/CONNECTION/NUT/FERRULE - BE Power Equip.
$53.73
72
42001049 METAL TUBE/CONNECTION/NUT/FERRULE - BE Power Equip.
$53.73
73
42001049 METAL TUBE/CONNECTION/NUT/FERRULE - BE Power Equip.
$53.73
74
42001049 METAL TUBE/CONNECTION/NUT/FERRULE - BE Power Equip.
$53.73
75
42001049 METAL TUBE/CONNECTION/NUT/FERRULE - BE Power Equip.
$53.73
76
42005066 CHECK VALVE - BE Power Equip.
$22.39
77
42001050 CONNECTION - BE Power Equip.
$2.45
