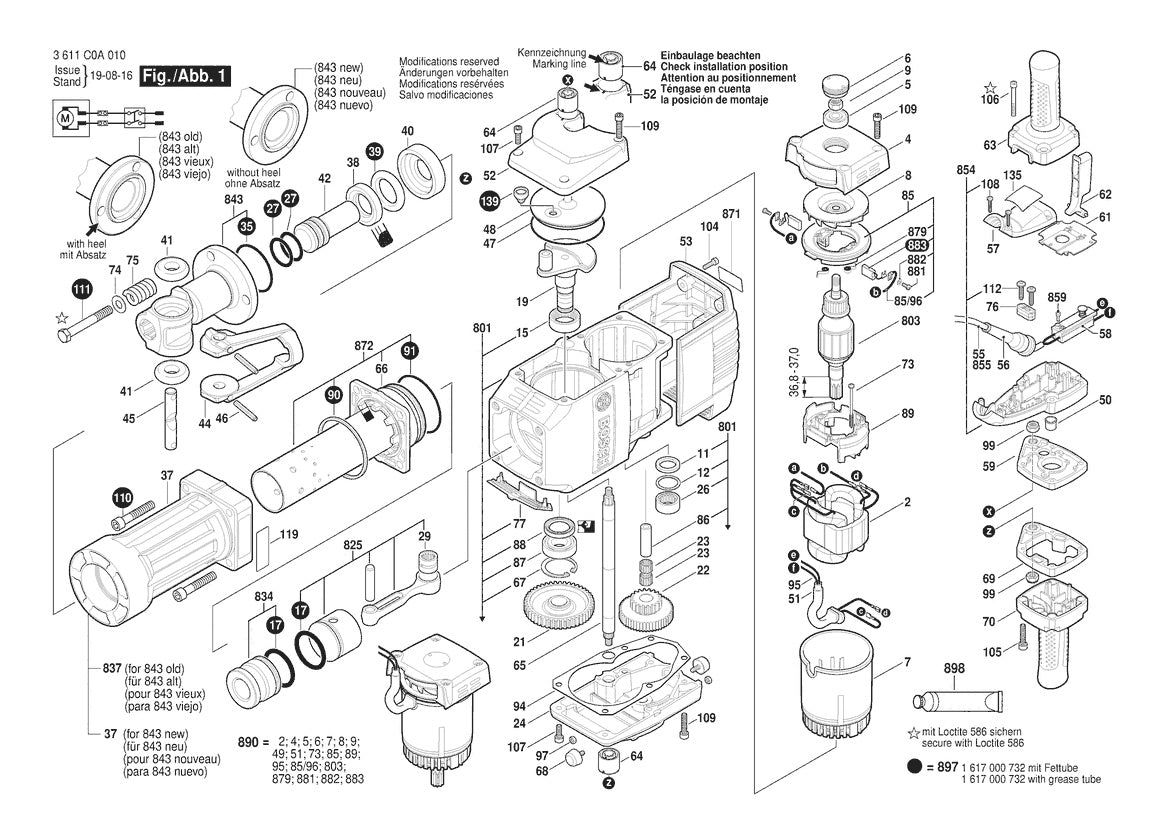

BH2770VCD Bosch 1-1 Bosch Demolition Hammer Parts Diagram

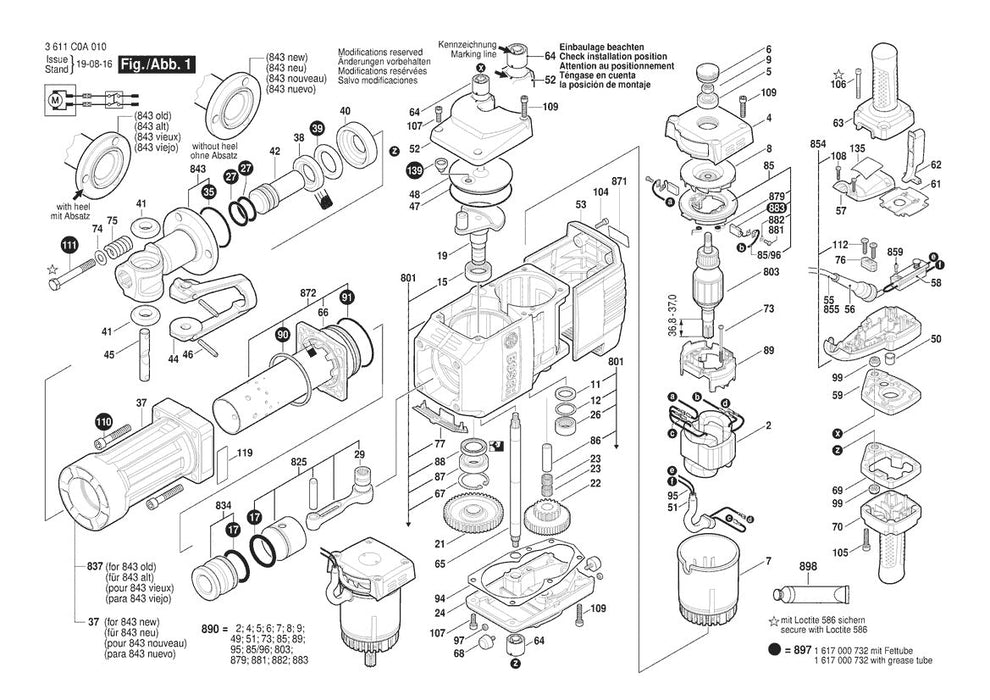

BH2770VCD Bosch 1-1 Bosch Demolition Hammer Parts Diagram

Skip to product information
1 of 1
Ref. Details
2
160422052T Field | Genuine OEM Bosch Part
$85.41
4
1615805073 Cover | Genuine OEM Bosch Part
$74.45
5
1610900015 Deep-groove Ball Bearing by Bosch
$43.77
6
1615500214 Screw Plug | Genuine OEM Bosch Part
$25.15
7
1615108104 Insulating Housing by Bosch
$34.04
8
1616610091 Fan | Genuine OEM Bosch Part
$19.68
9
1613313000 Hexagon Nut | Genuine OEM Bosch Part
$4.89
11
1610108013 Felt Washer | Genuine OEM Bosch Part
$4.89
12
1610102616 Supporting Disc by Bosch
$4.89
15
1610910091 Needle-roller Bearing by Bosch
$37.75
17
1610210210 O-ring | Genuine OEM Bosch Part
$15.93
21
1616318009 Cylindrical Gear by Bosch
$182.82
22
1616328036 Cylindrical Gear by Bosch
$157.65
23
1610913005 Needle-roller Assembly by Bosch
$8.27
24
1615500444 Gear Cover | Genuine OEM Bosch Part
$91.40
26
1610910092 Needle-roller Bearing by Bosch
$34.38
27
1610210213 O-ring | Genuine OEM Bosch Part
$6.16
29
1610910097 Needle-roller Bearing by Bosch
$34.71
35
1610210211 O-ring | Genuine OEM Bosch Part
$9.41
37
1600A01BG9 Guide Tube | Genuine OEM Bosch Part
$376.52
38
1610102094 Supporting Disc by Bosch
$8.10
39
1610290103 Damping Ring by Bosch
$19.68
40
1615700061 Intermediate Flange by Bosch
$24.90
41
1610210008 O-ring | Genuine OEM Bosch Part
$6.16
42
1600A014TU Striker Pin | Genuine OEM Bosch Part
$93.23
44
1618045026 Retaining Bracket by Bosch
$247.57
45
1613103004 Locking Bolt by Bosch
$60.21
46
2917760187 Clamping Sleeve by Bosch
$4.89
47
1900210172 O-ring | Genuine OEM Bosch Part
$10.95
48
1610516017 Sealing Cap | Genuine OEM Bosch Part
$21.32
50
3600421500 Protection Sleeve by Bosch
$3.91
51
1610703057 Cord Guard | Genuine OEM Bosch Part
$6.23
52
1615500417 Cover | Genuine OEM Bosch Part
$31.26
53
1615500449 Cover | Genuine OEM Bosch Part
$99.23
55
1614460102 Power Supply Cord by Bosch
$38.13
56
1610703011 Grommet | Genuine OEM Bosch Part
$17.80
57
1615500418 Switch Cover by Bosch
$6.16
58
1617200124 On-off Switch by Bosch
$48.72
59
1615700057 Plate | Genuine OEM Bosch Part
$70.95
61
1615700059 Dust Protection by Bosch
$8.18
62
1612026153 Switch-pawl | Genuine OEM Bosch Part
$5.33
63
1615132124 Handle | Genuine OEM Bosch Part
$54.47
64
1616334000 Rubber Torsion Bar by Bosch
$22.89
65
1613060005 Toothed Shaft by Bosch
$70.27
66
160022002D Thrust Ring | Genuine OEM Bosch Part
$44.19
68
1613465001 Rubber Buffer by Bosch
$6.16
69
1615700058 Plate | Genuine OEM Bosch Part
$69.56
70
1615132125 Handle | Genuine OEM Bosch Part
$60.21
73
1603435036 Self-tapping Screw by Bosch
$3.91
74
2916160010 Disc Spring | Genuine OEM Bosch Part
$3.91
75
1614614009 Compression Spring by Bosch
$10.84
76
1611302016 Fastening Clamp by Bosch
$3.91
77
1615500431 Ventilation Grid by Bosch
$4.89
85
1614336045 Brush Holder by Bosch
$38.13
85
1614448037 Connecting Cable by Bosch
$8.18
96
1614448037 Connecting Cable by Bosch
$8.18
86
1610300033 Axle Pin | Genuine OEM Bosch Part
$22.66
87
1610900027 Deep-groove Ball Bearing by Bosch
$31.26
88
1610283016 Shaft Sealing Ring by Bosch
$10.95
89
1610009008 Insulating Plate by Bosch
$3.91
90
1611015061 Rectangular Ring by Bosch
$3.91
91
1610210212 O-ring | Genuine OEM Bosch Part
$3.91
94
1611015021 Sealing Plate by Bosch
$5.09
95
1614413009 Wiring Harness by Bosch
$7.01
99
3613313500 Hexagon Nut | Genuine OEM Bosch Part
$4.89
104
2910141201 Hex-socket-head Cap Screw by Bosch
$4.89
105
2914551188 Screw | Genuine OEM Bosch Part
$4.89
106
2914551189 Microencapsulated Screw by Bosch
$4.89
107
2910141242 Hex-socket-head Cap Screw by Bosch
$4.89
108
2603490023 Torx Oval-head Screw by Bosch
$4.89
109
2910141248 Hex-socket-head Cap Screw by Bosch
$4.89
110
2910141356 Hex-socket-head Cap Screw by Bosch
$3.91
111
1613414024 Hex Screw | Genuine OEM Bosch Part
$6.16
112
1613490021 Torx Oval-head Screw by Bosch
$3.91
119
1611110D82 Warning Plate by Bosch
$3.91
135
1611110H20 Reference Plate by Bosch
$3.91
139
1610508050 Plug | Genuine OEM Bosch Part
$3.91
801
1617000726 Motor Housing by Bosch
$460.46
803
1614011092 Armature | Genuine OEM Bosch Part
$211.44
825
1617000727 Piston Assembly Group by Bosch
$70.95
834
1617000728 Striker | Genuine OEM Bosch Part
$99.23
843
1607000C8U Toolholder | Genuine OEM Bosch Part
$460.46
854
1617000730 Switch Housing by Bosch
$27.97
859
2910011088 Cheese Head Screw by Bosch
$4.89
871
160111A3H5 Label | Genuine OEM Bosch Part
$3.91
872
1617000731 Hammer Pipe | Genuine OEM Bosch Part
$460.46
879
1614652001 Spiral Spring by Bosch
$5.09
882
1610151007 Spring Lock Washer by Bosch
$3.91
883
1617000425 Carbon Brush Set by Bosch
$17.80
890
1617000A42 Motor Assembly by Bosch
$631.51
897
1617000732 Wear And Tear Part Set by Bosch
$141.85
898
1615430015 Grease | Genuine OEM Bosch Part
$43.77
