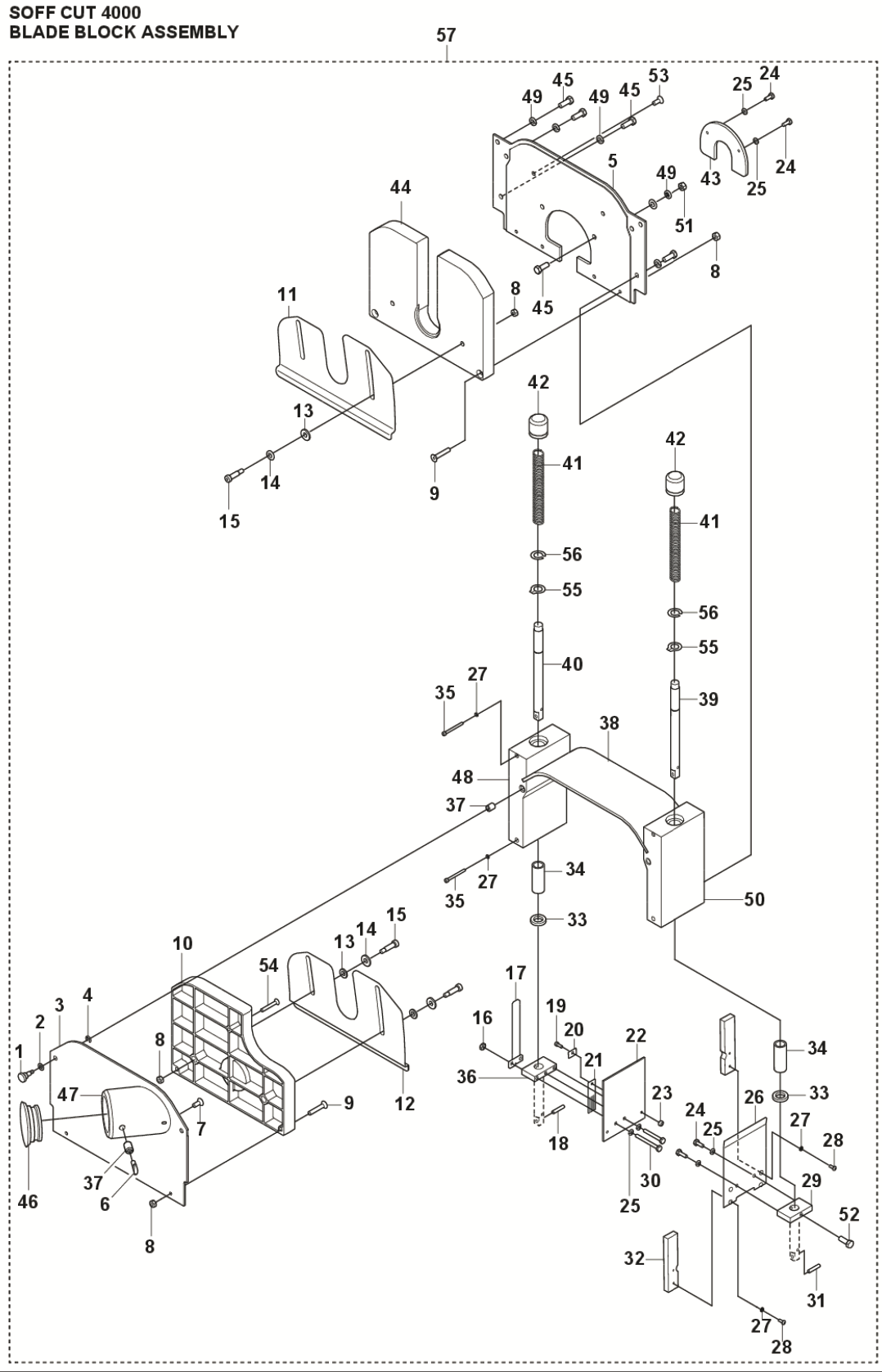

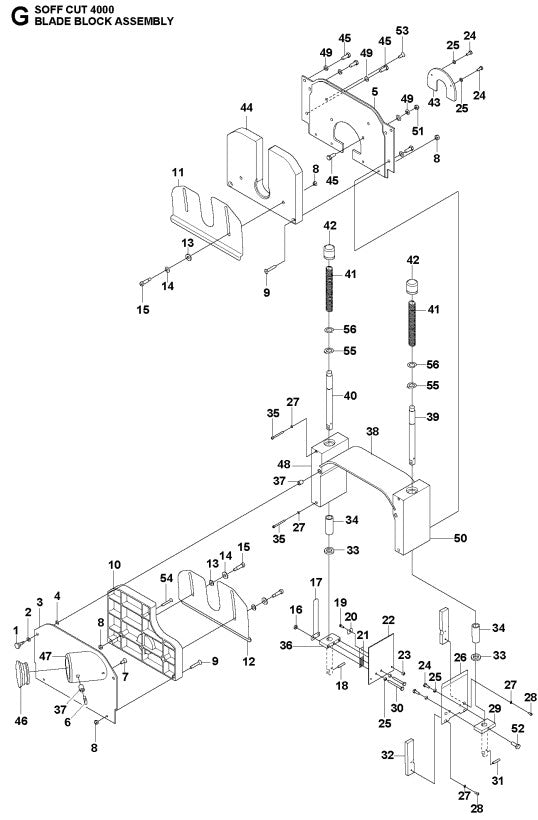

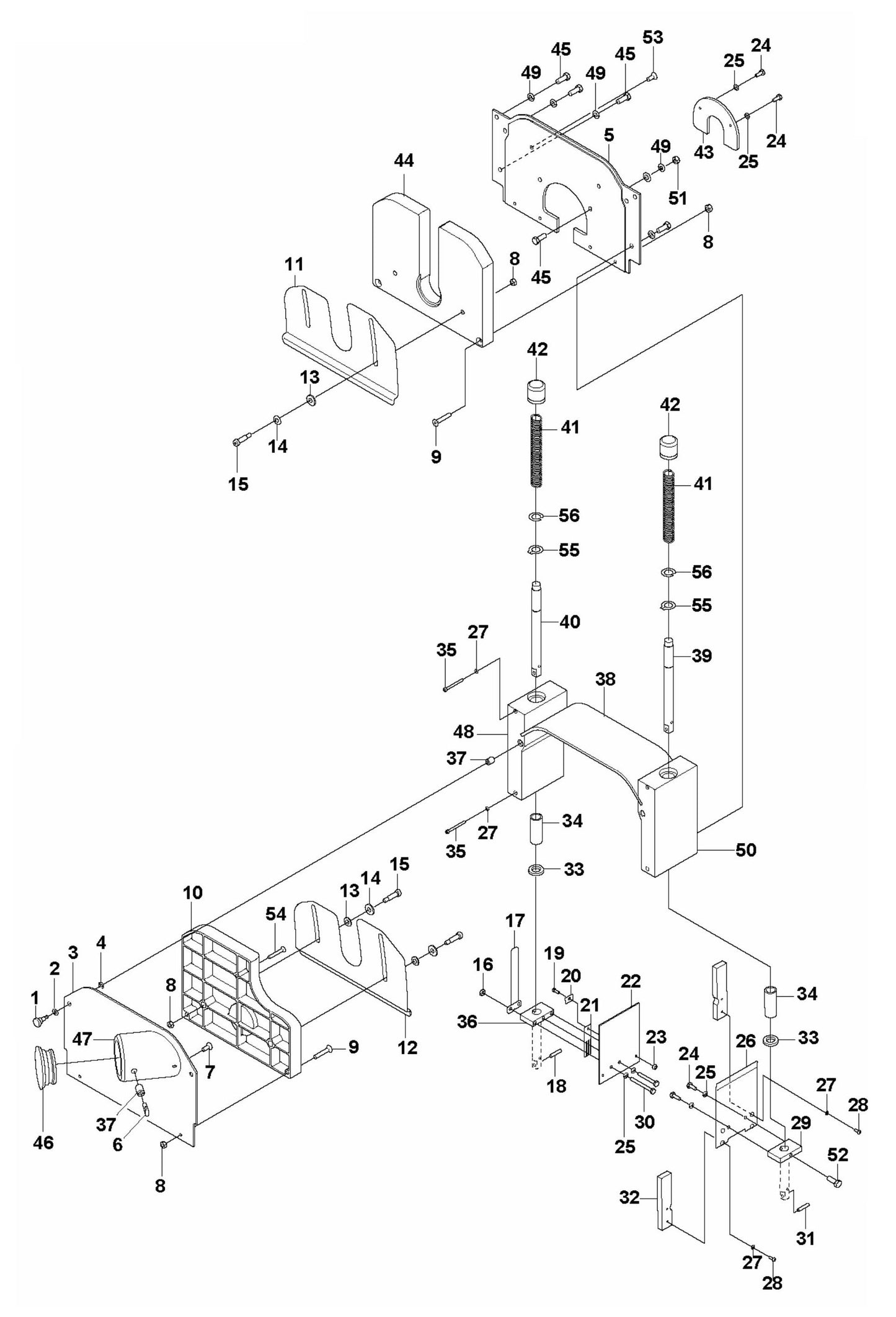

Blade Block Assembly Parts For Soff Cut 4000 by Husqvarna

Blade Block Assembly Parts For Soff Cut 4000 by Husqvarna

  • Blade Block Assembly Parts For Soff Cut 4000 by Husqvarna
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
505536301 Knob for Husqvarna Soff Cut 2000 Early Entry Saw
$18.90
2
505536401 Washer for Husqvarna Soff Cut 2000 Early Entry Saw
$13.80
3
505832401 B.B. COVER FRONT W/ DUST PORT FOR SOFF CUT 4000 SAW BY HUSQVARNA
$306.57
4
505536501 E-Clip for Husqvarna Soff Cut 2000 Early Entry Saw
$6.70
5
596934701 COVER, REAR BLADE BLOCK FOR SOFF CUT 4000 SAW BY HUSQVARNA
$149.74
6
505796101 Screw for Husqvarna Soff Cut 2000 Early Entry Saw
$7.26
7
505730501 FHS 1/4-20 X 5/8 S.S. FOR EARLY ENTRY SAW BY HUSQVARNA
$7.26
8
505732401 NUT, 5/16-18 HEX, S.S. FOR EARLY ENTRY SAW BY HUSQVARNA
$4.84
9
505833901 FHS 5/16-18 X 1 3/4 FOR EARLY ENTRY SAW BY HUSQVARNA
$3.85
10
593654101 BLOCK, MACHINED OUTER FOR SOFF CUT 4000 SAW BY HUSQVARNA
$204.37
11
529604001 Cover for Soff Cut 4000 Walk Behind Floor Saw by Husqvarna
$64.44
12
529603901 Cover for Soff Cut 4000 Walk Behind Floor Saw by Husqvarna
$56.52
13
505634501 FLAT WSHR .750X.379 X.031 DEL FOR EARLY ENTRY SAW BY HUSQVARNA
$3.99
14
505634201 Washer for Husqvarna Soff Cut 2000 Early Entry Saw
$11.10
15
510325301 SHSB 3/8 X 1 FOR EARLY ENTRY SAW BY HUSQVARNA
$14.00
16
505630701 NUT, NYLOC 1/4-20 .218"HT. FOR EARLY ENTRY SAW BY HUSQVARNA
$3.85
17
505831701 DEPTH GAUGE ARM, X4000 FOR EARLY ENTRY SAW BY HUSQVARNA
$48.87
18
587918201 PIN, GROOVE E, 1/4" X 2" FOR CONCRETE SAWS BY HUSQVARNA
$11.40
19
505772401 SHCS 10-24 X 1/2 S.S. FOR EARLY ENTRY SAW BY HUSQVARNA
$5.14
20
505769101 BAR, MOUNTING, SMALL DUST FLAP FOR EARLY ENTRY SAW BY HUSQVARNA
$11.61
21
505769201 DUST FLAP, SMALL FOR EARLY ENTRY SAW BY HUSQVARNA
$5.14
22
505828801 PLATE, REAR DIVERTER, X4000 FOR SOFF CUT 4000 SAW BY HUSQVARNA
$153.55
23
505630401 Nut for Husqvarna Soff Cut 2000 Early Entry Saw
$4.99
24
505627501 Bolt for Husqvarna Soff Cut 2000 Early Entry Saw
$7.26
25
505632801 LK WASH 1/4 SPLIT SS for Husqvarna Soff Cut 2500 Walk Behind Saw
$5.90
26
505828701 PLATE, FRONT DIVERTER, VACUUM FOR EARLY ENTRY SAW BY HUSQVARNA
$97.00
27
505633101 Washer for Husqvarna Soff Cut 2000 Early Entry Saw
$6.90
28
505629801 SBHCS 10-32 X .5 S.S. FOR FASTENERS BY HUSQVARNA
$3.91
29
505839801 Block for Husqvarna Soff Cut 2000 Early Entry Saw
$68.49
30
505728101 Bolt for Husqvarna Soff Cut 2000 Early Entry Saw
$5.80
31
505774001 Pin for Husqvarna Soff Cut 2000 Early Entry Saw
$16.90
32
534996301 Block for Soff Cut 4000 Walk Behind Floor Saw by Husqvarna
$89.64
33
505738001 Seal for Husqvarna Soff Cut 2000 Early Entry Saw
$29.44
34
505667801 Shaft for Husqvarna Soff Cut 2000 Early Entry Saw
$42.69
35
505833701 SHCS 10-32 X 2 S.S. FOR EARLY ENTRY SAW BY HUSQVARNA
$5.14
36
505664901 BLOCK, SHAFT COLLAR, B.B. FOR EARLY ENTRY SAW BY HUSQVARNA
$59.79
37
505748301 Insert for Husqvarna Soff Cut 2000 Early Entry Saw
$44.90
38
505828501 B.B. COVER TOP FOR SOFF CUT 4000 SAW BY HUSQVARNA
$74.46
39
505828301 SHAFT, FRONT BLADE BLOCK X4000 FOR EARLY ENTRY SAW BY HUSQVARNA
$110.29
40
505828401 SHAFT, REAR BLADE BLOCK X4000 FOR EARLY ENTRY SAW BY HUSQVARNA
$95.21
41
505790701 SPRING, BLADE BLOCK, GX4000 FOR EARLY ENTRY SAW BY HUSQVARNA
$70.85
42
505831401 B.B. CAP FOR EARLY ENTRY SAW BY HUSQVARNA
$42.69
43
505815701 Belt for Husqvarna Soff Cut 2000 Early Entry Saw
$73.35
44
593654001 BLOCK, MACHINED INNER FOR SOFF CUT 4000 SAW BY HUSQVARNA
$216.51
45
505833101 Bolt for Husqvarna Soff Cut 2000 Early Entry Saw
$2.90
46
593214401 PLUG, VAC PORT FOR EARLY ENTRY SAW BY HUSQVARNA
$62.32
47
591357101 Tube for Husqvarna Soff Cut 2000 Early Entry Saw
$157.83
48
505827701 B.B. REAR BLOCK FOR EARLY ENTRY SAW BY HUSQVARNA
$251.93
49
505731001 Washer for Husqvarna Soff Cut 2000 Early Entry Saw
$5.14
50
505827801 B.B. FRONT BLOCK FOR EARLY ENTRY SAW BY HUSQVARNA
$251.93
51
539990196 Nut for Husqvarna Soff Cut 2000 Early Entry Saw
$4.99
52
505727301 BOLT for Husqvarna Soff-Cut 150 Saw
$5.80
53
505628801 FHS 5/16-18 X 3/4 S.S. FOR EARLY ENTRY SAW BY HUSQVARNA
$2.95
54
505730301 FHS 1/4-20 X 1 3/4 S.S. FOR EARLY ENTRY SAW BY HUSQVARNA
$12.78
55
505733601 SNAP RING for Husqvarna Soff Cut 2500 Walk Behind Saw
$13.54
56
541401472 Ring for Husqvarna Soff Cut 2000 Early Entry Saw
$11.70
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
