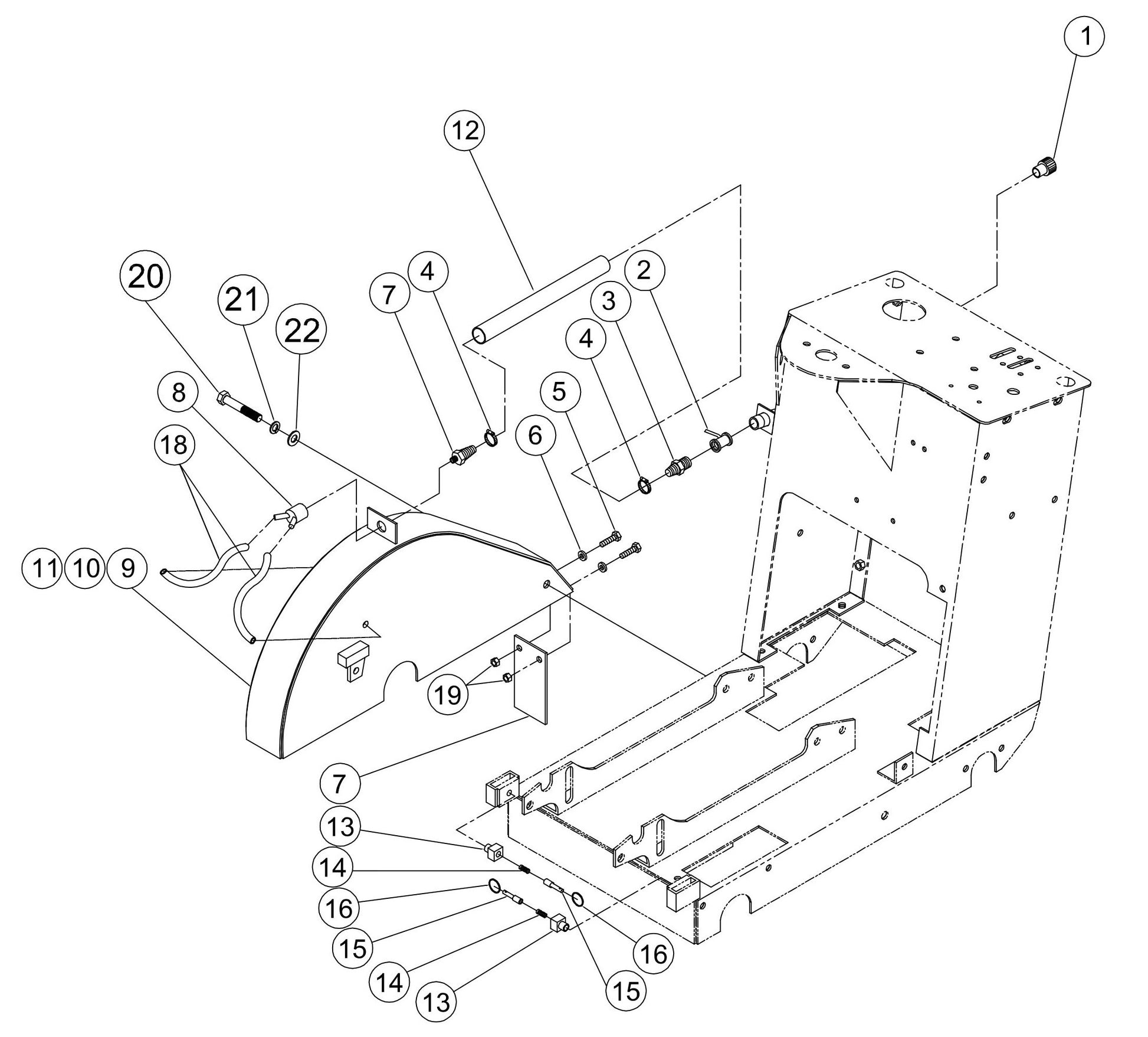

Blade Guard And Water System Group Parts By Norton Clippers

Blade Guard And Water System Group Parts By Norton Clippers

  • Blade Guard And Water System Group Parts By Norton Clippers
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
70184659115 SWIVEL HOSE 3/4 GH FEMALE x 1/2 FP FEMALE for C1316 Concrete Saws by Norton Clipper
$28.22
2
70184659097  WATER VALVE 1/2" for C1316 Concrete Saws by Norton Clipper
$49.85
3
N1D0100 HOSE BARB 1/2" for C1316 Concrete Saws by Norton Clipper
Call for Price call for price call for price
4
70184659232 HOSE CLAMP for C1316 Concrete Saws by Norton Clipper
$10.81
5
70184649879 Hexagonal head Cap Screw for C1316 Concrete Saws by Norton Clipper
$11.77
6
70184650120 WASHER 1/4 SAE for C1316 Concrete Saws by Norton Clipper
$11.77
7
70184650465 FIT BARB HOSE 1/4MPT X 1/2 for C1316 Concrete Saws by Norton Clipper
$29.23
8
00310004233  Y FITTING x 1/4FPT for C1316 Concrete Saws by Norton Clipper
$40.70
9
70184628495 BLADE GUARD 16" for C1316 Concrete Saws by Norton Clipper
$272.68
10
70184628496  BLADE GUARD 20" for C1316 Concrete Saws by Norton Clipper
$328.64
11
70184628497 BLADE GUARD 24" for C1316 Concrete Saws by Norton Clipper
$374.81
12
70184683507 Tube 1/21D X 3/40D 48" Long for C1316 Concrete Saws by Norton Clipper
$23.69
13
70184628498 GUARD LOCK for C1316 Concrete Saws by Norton Clipper
$28.22
14
70184628499 SPRING for C1316 Concrete Saws by Norton Clipper
$15.71
15
70184628500 BLADE GUARD RETAINING PIN for C1316 Concrete Saws by Norton Clipper
$17.66
16
70184628501  RING for C1316 Concrete Saws by Norton Clipper
$15.71
18
70184681299 NOZZEL WATER (Set of 2) for C1316 Concrete Saws by Norton Clipper
$42.26
19
70184628185  SPLASH GUARD (FLAP OR MUD FLAP) ONLY for C1316 Concrete Saws by Norton Clipper
$26.45
20
70184649929 Hexagonal Head Cap Screw for C1316 Concrete Saws by Norton Clipper
$91.29
21
70184650154 WASHER 1/2 SPRING LOCK for C1316 Concrete Saws by Norton Clipper
$11.77
22
70184650124 WASHER 1/2 SAE for C1316 Concrete Saws by Norton Clipper
Call for Price call for price call for price
View full details
