Blade Shaft And Engine Group Parts By Norton Clipper

Blade Shaft And Engine Group Parts By Norton Clipper

  • Blade Shaft And Engine Group Parts By Norton Clipper
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
70184628084  BLADE SHAFT for C1316 Concrete Saws by Norton Clipper
$132.66
2
70184673904 Collar Tight for C13E Concrete Saws by Norton Clipper
$94.67
3
70184674352  TIGHT COLLAR LEFT SIDE for C1316ES Concrete Saws by Norton Clipper
$126.23
4
70184674082  LOOSE COLLAR OUTER FLANGE for C1316 Concrete Saws by Norton Clipper
$126.23
5
70184673903  NUT BLADE SHAFT 3/4-16 LH x 1" LONG for C1316 Concrete Saws by Norton Clipper
$62.13
6
70184674346 Nut Blade Shaft 3/4-16 Rh for C119 Concrete Saws by Norton Clipper
$54.24
7
70184650306  BEARING Pillow Block 1-1/4 2-B for C1316 Concrete Saws by Norton Clipper
$166.88
8
70184649919 Screw for C1316 Concrete Saws by Norton Clipper
$11.77
9
70184650154 WASHER 1/2 SPRING LOCK for C1316 Concrete Saws by Norton Clipper
$11.77
31
70184650154 WASHER 1/2 SPRING LOCK for C1316 Concrete Saws by Norton Clipper
$11.77
10
70184650124 WASHER 1/2 SAE for C1316 Concrete Saws by Norton Clipper
Call for Price call for price call for price
32
70184650124 WASHER 1/2 SAE for C1316 Concrete Saws by Norton Clipper
Call for Price call for price call for price
11
70184628173 PULLEY 4.50D X 1.25B 4G 3VX for C1316 Concrete Saws by Norton Clipper
$188.85
12
9083090 Socket Set Screw 1/4-20 X 3/8 for C1316 Concrete Saws by Norton Clipper
Call for Price call for price call for price
13
70184674556 PIN DRIVE (GROOVED) 3/8X1 for C1316 Concrete Saws by Norton Clipper
$11.77
14
70184628178 BELT 3VX355 (4) for C1316 Concrete Saws by Norton Clipper
$189.76
15
70184628174 Pulley 3.15 OD x 1.00 ID 5G 3VX (13HP Only) for C1316 Concrete Saws by Norton Clipper
Call for Price call for price call for price
16
70184628176 Pulley 3.15 OD x 1.125 ID 5G 3VX (20HP 16" & 20" Only) for C1316 Concrete Saws by Norton Clipper
$155.11
33
70184628177 Pulley 2.65 OD x 1.125 ID 5G 3VX (20HP 24" Only) for C1316 Concrete Saws by Norton Clipper
$128.36
17
70184649710 KEY 1/4 X 2 1/2 for C1316 Concrete Saws by Norton Clipper
Call for Price call for price call for price
18
70184649904 Hexagonal head Cap Screw for C118 Concrete Saws by Norton Clipper
$11.77
19
70184650123 WASHER 3/8 SAE for C1316 Concrete Saws by Norton Clipper
$24.69
20
70184650373 Nut 3/8"-16 UNC Nylock for C13PE Concrete Saws by Norton Clipper
$13.74
21
70184643693 ENGINE 20 HP HONDA GX630TXF2 for C1316 Concrete Saws by Norton Clipper
$2,029.50
22
70184623818 ENGINE 13 HP ELECTRIC START (GX390K1QAE2) for C1316 Concrete Saws by Norton Clipper
$1,979.01
23
70184671620 ENGINE 13 HP MANUAL START (GX390K1QXC9) for C1316 Concrete Saws by Norton Clipper
$1,796.43
24
70184628076 ENGINE BASE for C1316 Concrete Saws by Norton Clipper
$118.06
25
70184628179 OIL DRAIN HOSE Assembly 13HP for C1316 Concrete Saws by Norton Clipper
$72.28
26
70184628180 OIL DRAIN HOSE Assembly 20HP for C1316 Concrete Saws by Norton Clipper
$72.28
27
70184649709 KEY 1/4 X 2-1/4 for C1316 Concrete Saws by Norton Clipper
$15.71
28
70184678162 Threaded Hexagonal head Cap Screw for C1316 Concrete Saws by Norton Clipper
$11.41
29
70184650358 NUT 1/2-13 JAM for C1316 Concrete Saws by Norton Clipper
$17.66
30
70184649920  Screw for C1320 Concrete Saws by Norton Clipper
$11.77
View full details

Frequently asked questions

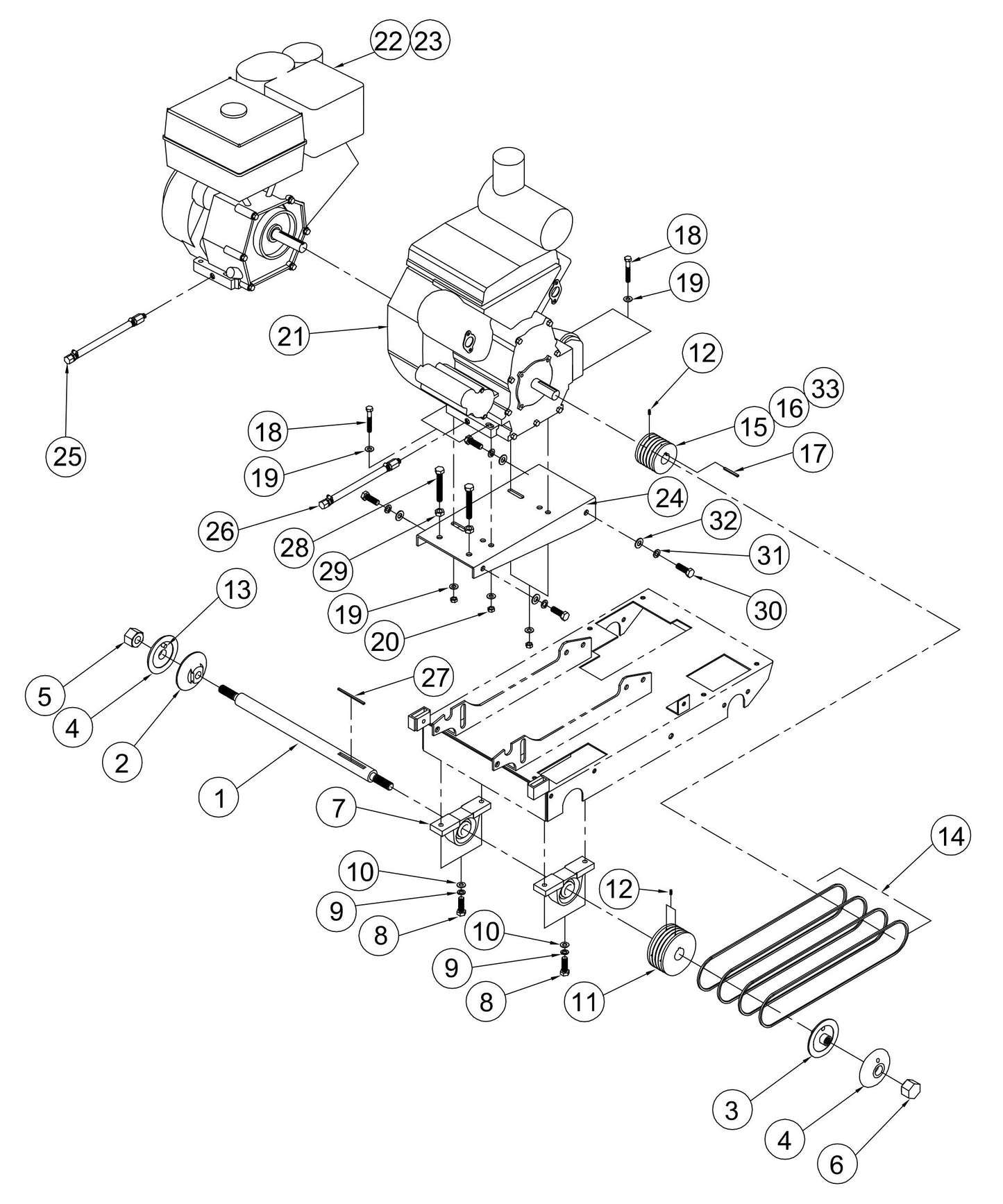

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
