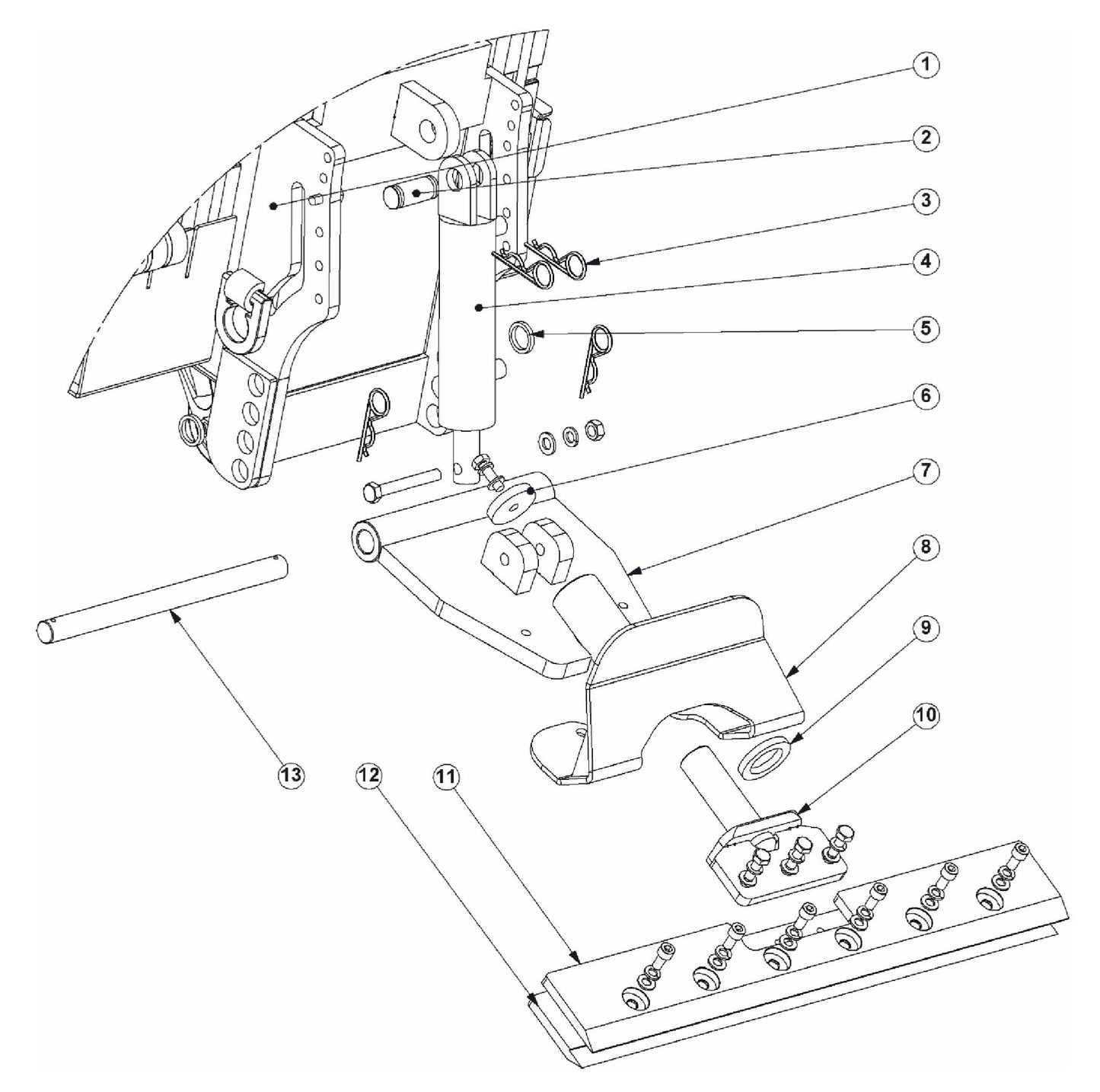

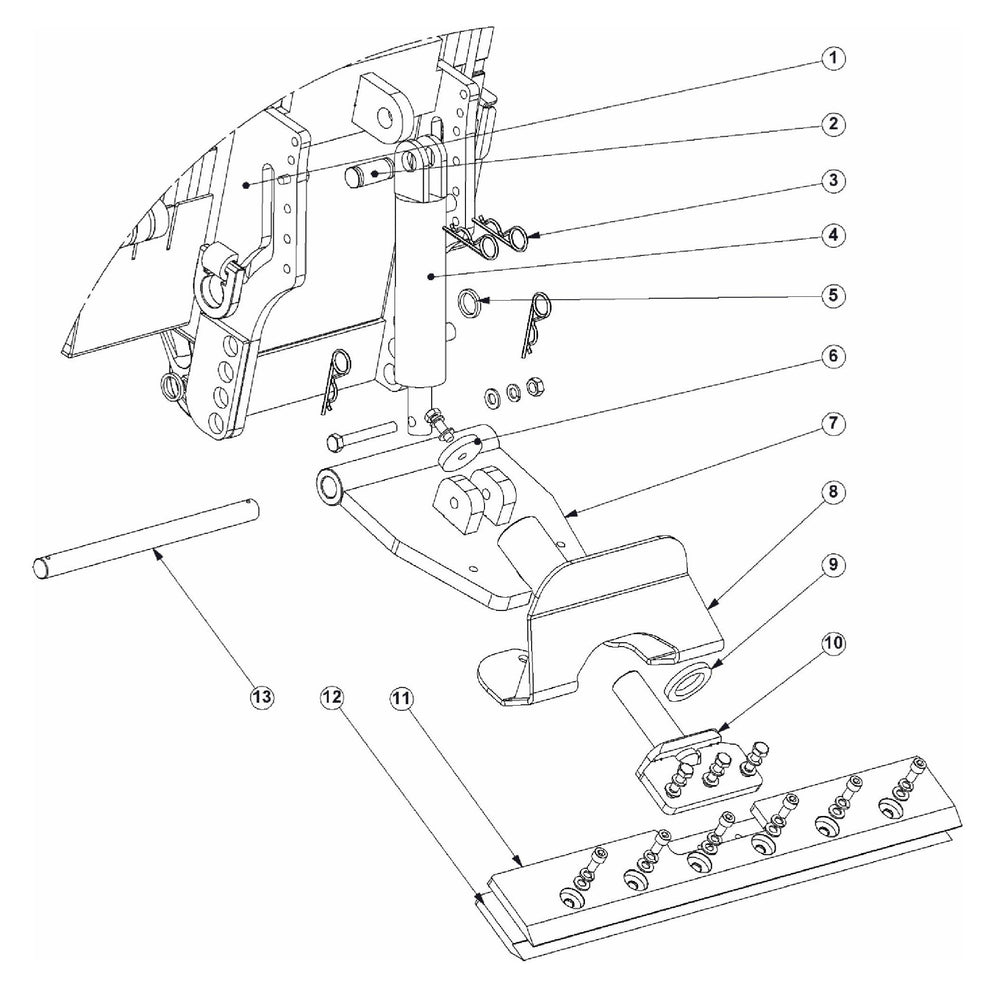

BMS-220LP-V2 Tooling Assembly Parts by Husqvarna

BMS-220LP-V2 Tooling Assembly Parts by Husqvarna

  • BMS-220LP-V2 Tooling Assembly Parts by Husqvarna
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
533738001 Cylinder Connecting Rod by Husqvarna
$47.69
4
533783401 Hydr Cylinder for BMS-220ADB by Husqvarna
$1,235.00
5
533389501 Locking Washer for BMS-220ADB by Husqvarna
$25.17
6
533670301 Tool Holder Plate Washer by Husqvarna
$79.61
9
533736301 Tool Holder Washer for BMS-220ADB by Husqvarna
$96.90
11 + 12
533073501 M12 X 30 Hexagon Head Screw by Husqvarna
$2.81
11 + 12
533288701 M12 Spring Lock Washer by Husqvarna
$1.42
11 + 12
533250701 Washer for BMG 220RC Floor Grinder by Husqvarna
$3.59
13
534080301 ROD/CUTTING Head Connecting by Husqvarna
$73.91
3
533858601 Pin for BMG 220RC Floor Grinder by Husqvarna
$8.35
