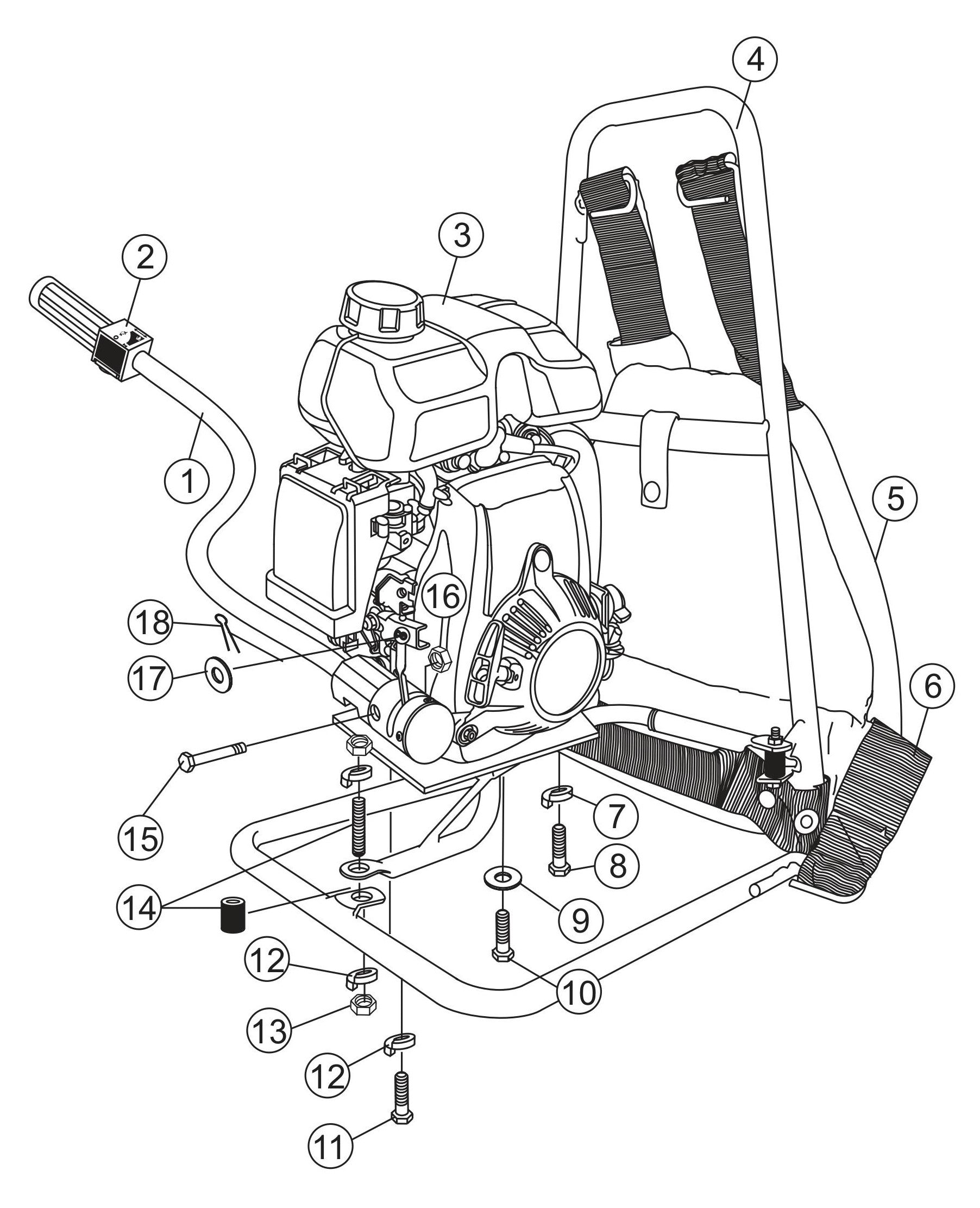

BP-25H Gasoline Vibrator- Frame Assembly Parts By Multiquip

BP-25H Gasoline Vibrator- Frame Assembly Parts By Multiquip

  • BP-25H Gasoline Vibrator- Frame Assembly Parts By Multiquip
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
ZT316AG2 Rh Throttle Arm Assy. for BP25H Flex Shaft Concrete Vibrators by Multiquip
$186.79
2
ZT177S1 Kill Switch, Momentary Pushbutton Red for BP25H CE Flex Shaft Concrete Vibrators by Multiquip
$28.77
3
ZT6850X1 Engine,Honda Gxh50 for BP25H Flex Shaft Concrete Vibrators by Multiquip
$1,024.81
4
ZT374AR1 Frame for BP25H Flex Shaft Concrete Vibrators by Multiquip
$300.61
5
ZT45B1 Backpack Pad W/Velcro Strap for BP25H Flex Shaft Concrete Vibrators by Multiquip
$187.35
6
ZT478C1 Backpack Shoulder Strap Assy. for BP25H Flex Shaft Concrete Vibrators by Multiquip
$118.57
7
ZT130A9 Washer,Split Lock Med 1/4" for BP25H Flex Shaft Concrete Vibrators by Multiquip
$4.39
8
ZT111T28 Hex Head Cap Screw M6X20Mm for BP25H Flex Shaft Concrete Vibrators by Multiquip
$4.39
9
ZT127A11 Washer,Flat Steel Zinc 1/4" for BP25H Flex Shaft Concrete Vibrators by Multiquip
$1.28
17
ZT127A11 Washer,Flat Steel Zinc 1/4" for BP25H Flex Shaft Concrete Vibrators by Multiquip
$1.28
10
ZT58A1 Hex Head Cap Screw 1/4-20X1/2" for BP25H Flex Shaft Concrete Vibrators by Multiquip
$1.85
11
ZT58A27 Hex Head Cap Screw 15/16-18X5/8" for BP25H Flex Shaft Concrete Vibrators by Multiquip
$4.39
12
ZT130A10 Washer,Split Lock 5/16" for BP25H Flex Shaft Concrete Vibrators by Multiquip
$4.39
13
ZT72F2 Nut,Hex 5/16-18X1/2" for BP25H Flex Shaft Concrete Vibrators by Multiquip
$4.39
14
ZT319D1 Rubber Shock Mount W/Stud for BP25H Flex Shaft Concrete Vibrators by Multiquip
$19.75
15
ZT58A8 Hex Head Cap Screw 1/4-20X1-3/4" for BP25H Flex Shaft Concrete Vibrators by Multiquip
$1.62
16
ZT74A8 1/4" Nylock Hex Nut for BP25H Flex Shaft Concrete Vibrators by Multiquip
$2.10
18
ZT81F8 Cotter Pin Throttle ,3/32X1/2" for BP25H Flex Shaft Concrete Vibrators by Multiquip
$4.39
