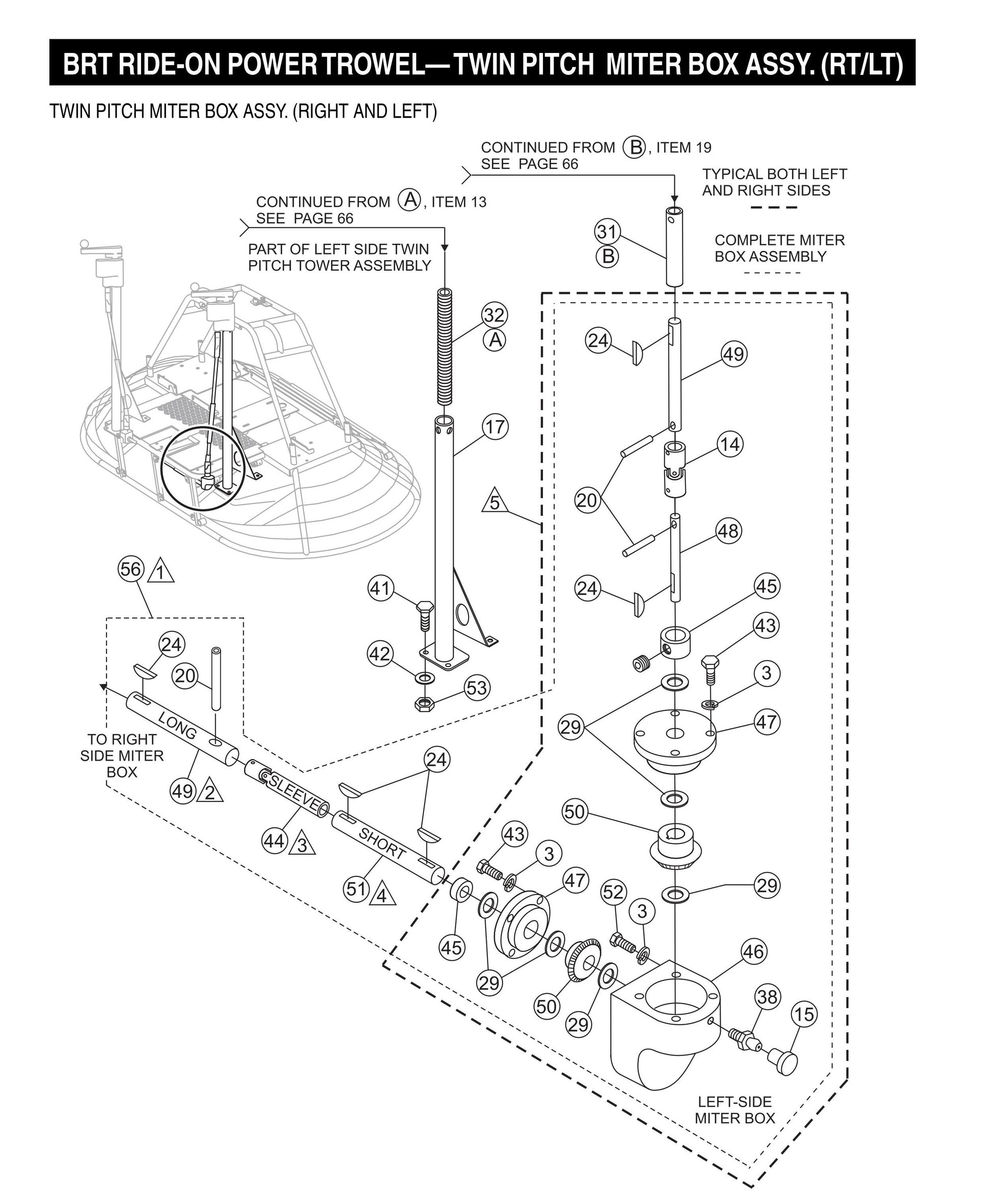

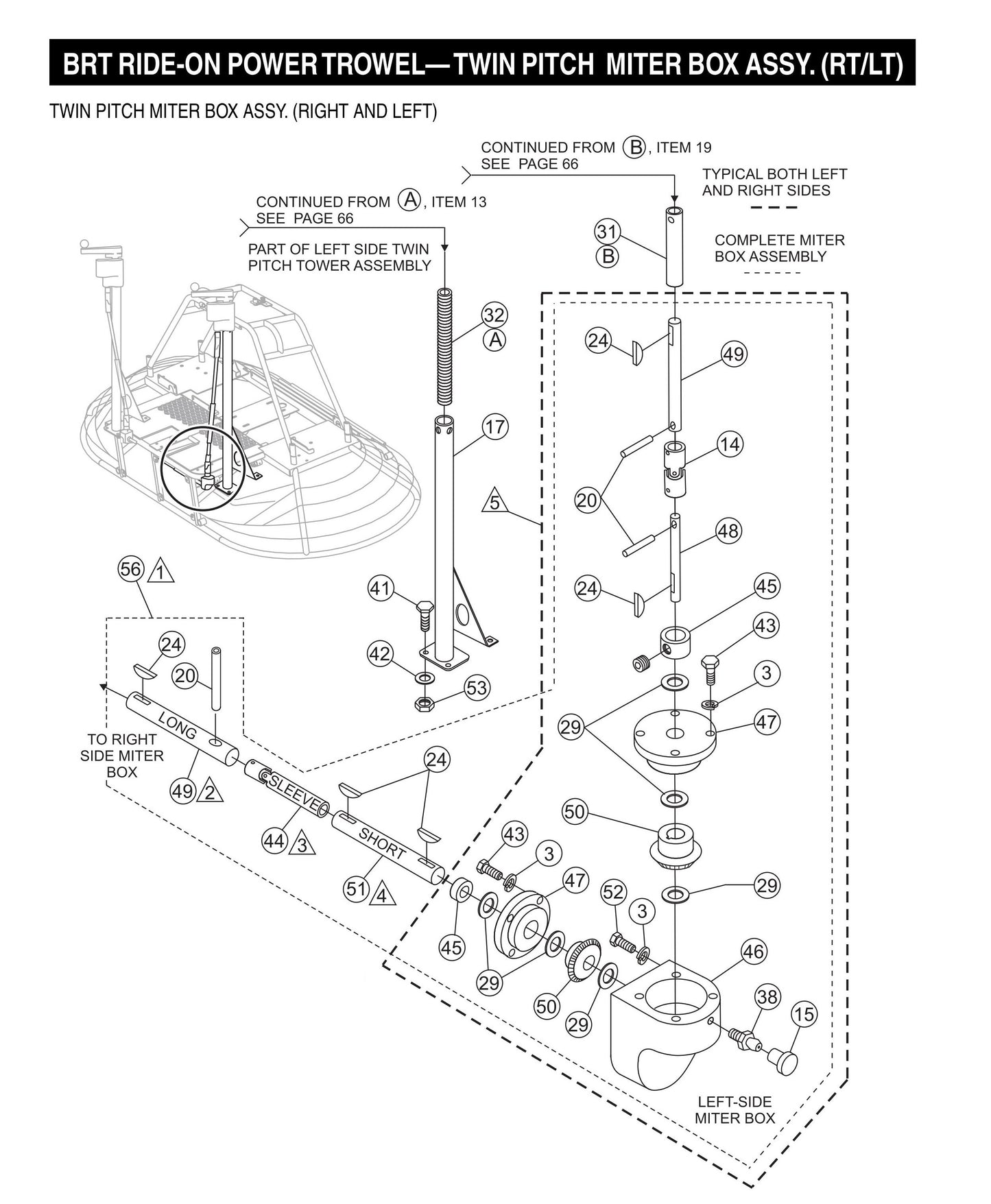

BRT Ride On Power Trowel Twin Pitch Miter Box Assembly (RT/LT) Parts by Multiquip Whiteman

BRT Ride On Power Trowel Twin Pitch Miter Box Assembly (RT/LT) Parts by Multiquip Whiteman

  • BRT Ride-On Power Trowel-Twin Pitch Miter Box Assembly (RT/LT)
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3*+%
0181B Washer, Lock 1/4 Med for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
14*+%
1536 U-Joint, Pitch Control for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$109.33
15*+%
1162 A Cap, Grease Zerk for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
17
10548 Pitch Control Tube for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$143.59
20*+%
1586 Pin Roll 1/8 X 3/4 for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
24*+%
1578 Key, Woodruff, #3 for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
29*+%
1733 Washer, 1/32 X 1/2 Harden for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
31
2012 Sleeve, Adj - Long, Rider for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$34.58
32
2156 Spring, Coil for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$23.55
38*+%
2621 Zerk, Grease Str 1/4-28 for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
41
0202 Screw, Hhc 5/16-18 X 1 for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
42
0300 B Washer, Flat 5/16 Sae for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
43*
0730 Screw, Hhc 1/4-20 X 1 for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
44*
2104 Sleeve W/U Joint for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$149.40
45*
1577 Set Collar, 1/2 for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$2.00
46*
1987 Miter Box, Pitch Control for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$30.85
47*
1988 Miter Box, Bearing Cap for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$17.90
48*
2021 Shaft, Miter Vertical for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$12.87
49*
2022 Shaft, Miter for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$17.66
50*
2062 Gear, Miter for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$68.50
51*
2049 Shaft, Miter Box Horiz. for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$43.46
52*
4514 Hhcs 1/4- 20 X 5/8” for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
53
5283 Nut, Nyloc 5/16-18 for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$75.08
56
11655 Miter Box Assembly for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$1,210.10
