BSS730SHK Cordless Circular saw Assembly Parts By Makita

BSS730SHK Cordless Circular saw Assembly Parts By Makita

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2660248 H.S.H. BOLT M6X20, 5740NB BY MAKITA
$5.99
2
2242759 OUTER FLANGE, 5007F BY MAKITA
$8.79
3
2241517 INNER FLANGE, 5007FK BY MAKITA
$11.16
4
9611555 RETAINING RING S38, 4200H BY MAKITA
$3.99
5
4173924 SAFETY COVER, BSS730SH BY MAKITA
$9.32
6
2318180 TENSION SPRING 4, 5740NB BY MAKITA
$3.99
7
5190591 ARMATURE ASS'Y, BLS712SFK BY MAKITA
$68.20
8
4169074 BAFFLE PLATE, LXSL01 BY MAKITA
$5.99
9
2418695 FAN 55, 5621DWA BY MAKITA
$5.99
10
3446813 SHAFT LOCK, XSH01 BY MAKITA
$5.99
11
2330926 COMP. SPRING 5, LXSL01 BY MAKITA
$3.99
12
210059-1 2100591 Ball Bearing 6000Ddw fits Makita HM1111C Demolition Hammer
$9.68
13
1832642 BLADE CASE SET, BSS730SH BY MAKITA
$45.66
14
819063-3 8190633 Label Da3010F fits Makita HM0860C Demolition Hammer
$3.99
15
2660191 CAP SQUARE N.BOLT M8X98,5037NB BY MAKITA
$5.99
30
2660191 CAP SQUARE N.BOLT M8X98,5037NB BY MAKITA
$5.99
16
2625026 RUBBER SLEEVE 6, 5007F BY MAKITA
$3.99
17
2512471 P.H. SCREW M6X20, 5007F BY MAKITA
$3.99
18
2136203 ORING 46, BSS730SH BY MAKITA
$3.99
19
2110162 B. BEARING 626LLB, DS4011 BY MAKITA
$12.13
20
2265127 HELICAL GEAR 60, LXSL01 BY MAKITA
$12.70
21
2575312 SLEEVE 12, 5820 BY MAKITA
$5.99
22
3174327 BEARING BOX, BSS730SH BY MAKITA
$15.07
23
2650342 C.S.H. SCREW, LS1016L BY MAKITA
$3.99
24
2111299 BALL BEARING 6201DDW, GA4030 BY MAKITA
$14.23
26
3240473 SPINDLE, BSS730SH BY MAKITA
$10.93
27
2657019 SCREW M6X14, 5177B BY MAKITA
$3.99
60
2657019 SCREW M6X14, 5177B BY MAKITA
$3.99
65
2657019 SCREW M6X14, 5177B BY MAKITA
$3.99
29
941151-9 9411519 F. Washer 6, 5007Nb fits Makita HM1211B Demolition Hammer
$3.99
63
941151-9 9411519 F. Washer 6, 5007Nb fits Makita HM1211B Demolition Hammer
$3.99
30
1634284 DEPTH CPL., BSS730SH BY MAKITA
$15.07
31
2537964 F. WASHER 10, N1900B BY MAKITA
$3.99
32
3314323 PIPE 9, BSS730SH BY MAKITA
$5.99
33
2662096 TAPPING SCREW MT 4X60, LXSL01 BY MAKITA
$3.99
34
6328284 YOKE UNIT, HRH01 BY MAKITA
$42.45
35
2100232 BALL BEARING 627DDW, RT0701C BY MAKITA
$9.68
36
1526346 MOTOR HOUSING CPL., BSS730SH BY MAKITA
$68.00
38
4166424 SWITCH LEVER, 5620DWA BY MAKITA
$3.99
39
6519883 SWITCH, BLS712SFK BY MAKITA
$13.57
40
3448988 SUPPORT PLATE, BDF460SH BY MAKITA
$5.99
42
4173160 HANDLE COVER, BSS730SH BY MAKITA
$35.54
43
4166440 SWITCH BUTTON, 5620DWA BY MAKITA
$16.56
44
2331948 COMPRESSION SPRING 4, DC18RC BY MAKITA
$3.99
45
265995-6 2659956 Tapping Screw - Kett fits Makita HM0860C Demolition Hammer
$3.99
49
265995-6 2659956 Tapping Screw - Kett fits Makita HM0860C Demolition Hammer
$3.99
46
2722305 LEVER 54, 5037NB BY MAKITA
$5.99
47
2319550 RING SPRING 12, 5037NB BY MAKITA
$3.99
48
2521410 HEX. NUT M8, BSS730SH BY MAKITA
$7.76
50
4166393 REAR COVER, LXSL01 BY MAKITA
$5.99
51
6439667 BRUSH HOLDER, LXSL01 BY MAKITA
$5.99
52
6439455 BRUSH HOLDER, LS711DWBEK BY MAKITA
$5.99
53
CB441 CARBON BRUSH SET, 1950224 BY MAKITA
$7.94
54
6439413 HOLDER CAP, BJR181 BY MAKITA
$5.99
55
9112632 P.H. SCREW M5X40, XSS02 BY MAKITA
$3.99
56
2650847 TROSS HEAD SCREW M5, XSH03 BY MAKITA
$3.99
57
2130621 O RING 9, GA7021 BY MAKITA
$3.99
58
3174042 STOPPER, BSS730SH BY MAKITA
$14.26
59
2521038 HEX. LOCK NUT M58, 5007FK BY MAKITA
$3.99
61
2313164 COMP. SPRING 7, 5005BA BY MAKITA
$3.99
62
1634072 ANGULAR CPL.,5621DWA BY MAKITA
$18.98
66
2650863 COUNTERSUNK H.S. M5X8, 5007NK BY MAKITA
$3.99
70
2650863 COUNTERSUNK H.S. M5X8, 5007NK BY MAKITA
$3.99
67
2662135 H.S.H. SCREW M5X12, 5007F BY MAKITA
$3.99
68
2662648 H.S.H.SCREW M5X8, LS1016L BY MAKITA
$3.99
69
1526825 BASE CPL., BSS730SH BY MAKITA
$30.13
25
2858580 BEARING RETAINER 1933, 4100KB BY MAKITA
$3.99
41
6439837 TERMINAL,BFT123F BY MAKITA
$5.99
37
Call for Price call for price call for price
28
Call for Price call for price call for price
64
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

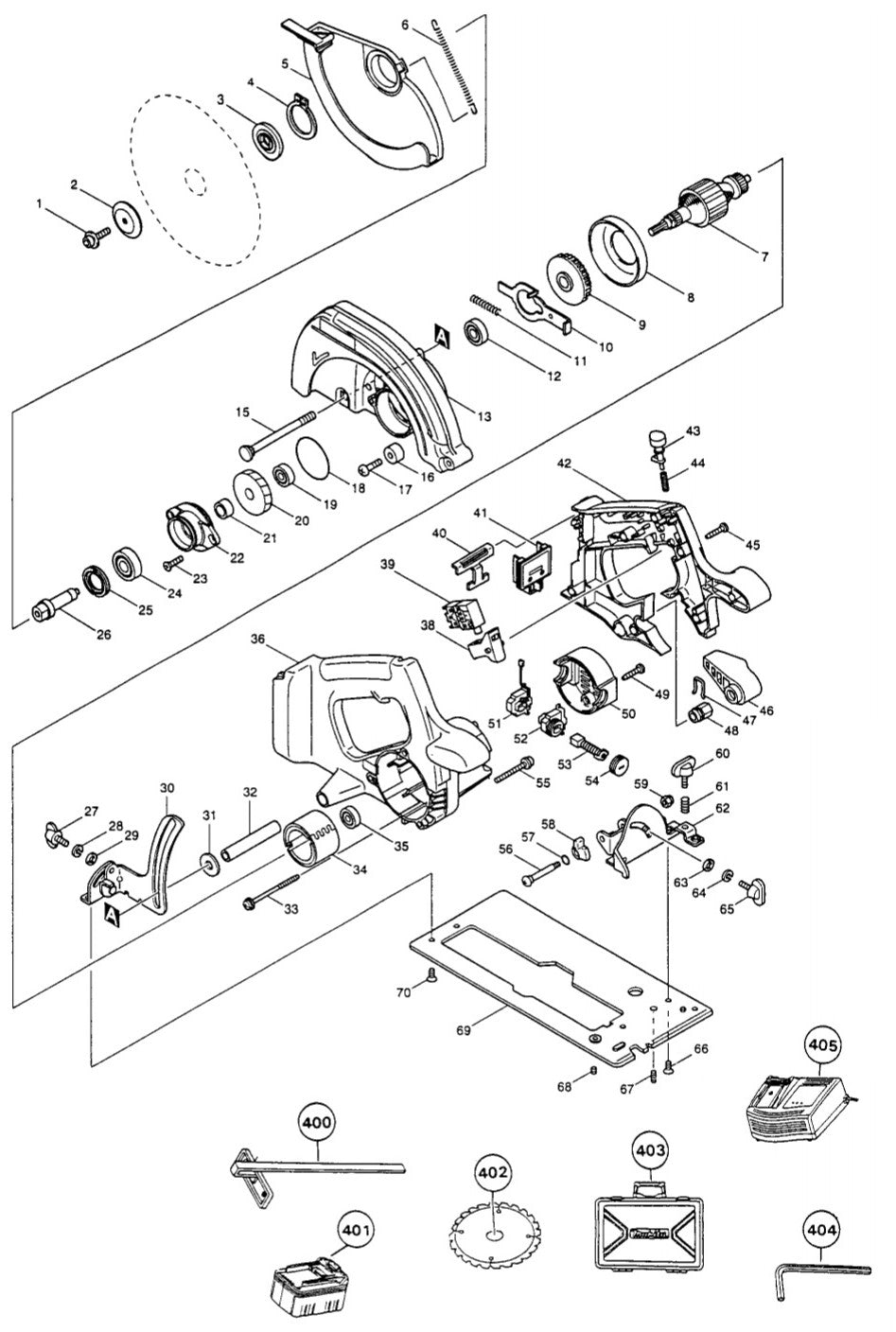

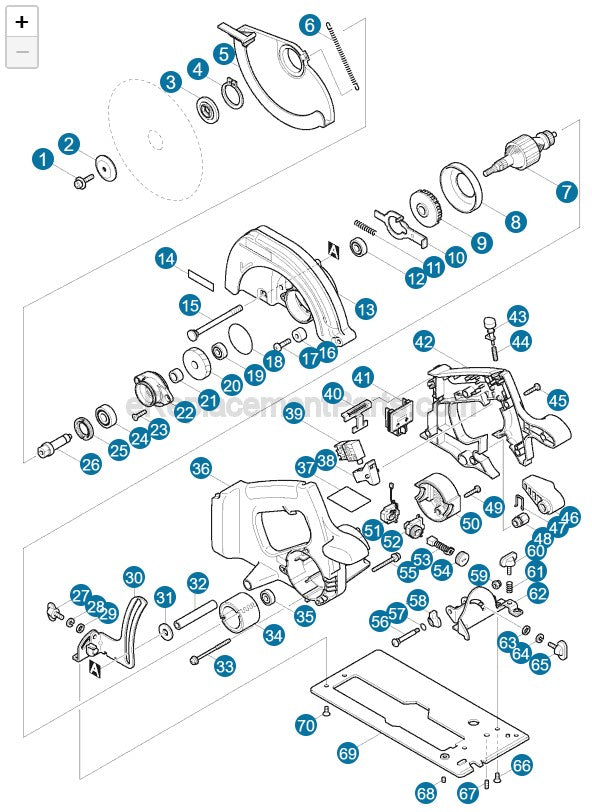

How do I use this diagram?
