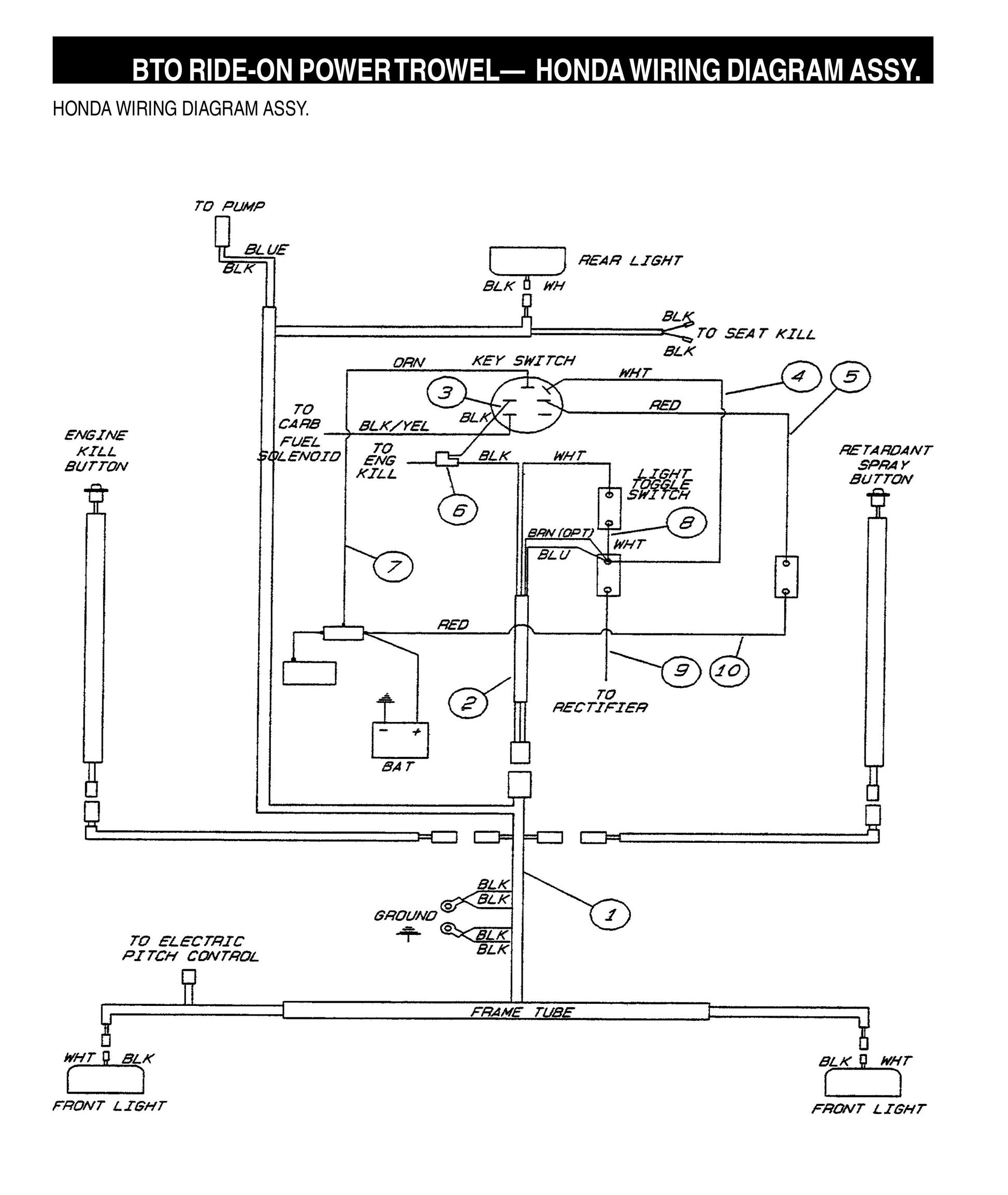

BTO Ride-On Power Trowel-Honda Wiring Diagram Assembly

BTO Ride-On Power Trowel-Honda Wiring Diagram Assembly

  • BTO Ride-On Power Trowel-Honda Wiring Diagram Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2775 Main Wiring Harness Assembly for BTO Series Mechanical ride on power trowels by Multiquip Whiteman
$212.57
2
2945 Engine Harness for BTO Series Mechanical ride on power trowels by Multiquip Whiteman
$17.67
3
10985 Kill Wire for BTO Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
4
10961 Charging Jumper Wire for BTO Series Mechanical ride on power trowels by Multiquip Whiteman
$12.89
5
10982 Battery Jumper Wire for BTO Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
6
1475 Wire Splice for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$1.23
7
10983 Solenoid Wire for BTO Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
8
2796 Light Switch Wire for BTO Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
9
10979 Charge Wire for BTO Series Mechanical ride on power trowels by Multiquip Whiteman
$6.59
10
10980 Battery Hot Wire for BTO Series Mechanical ride on power trowels by Multiquip Whiteman
$1.31
View full details
