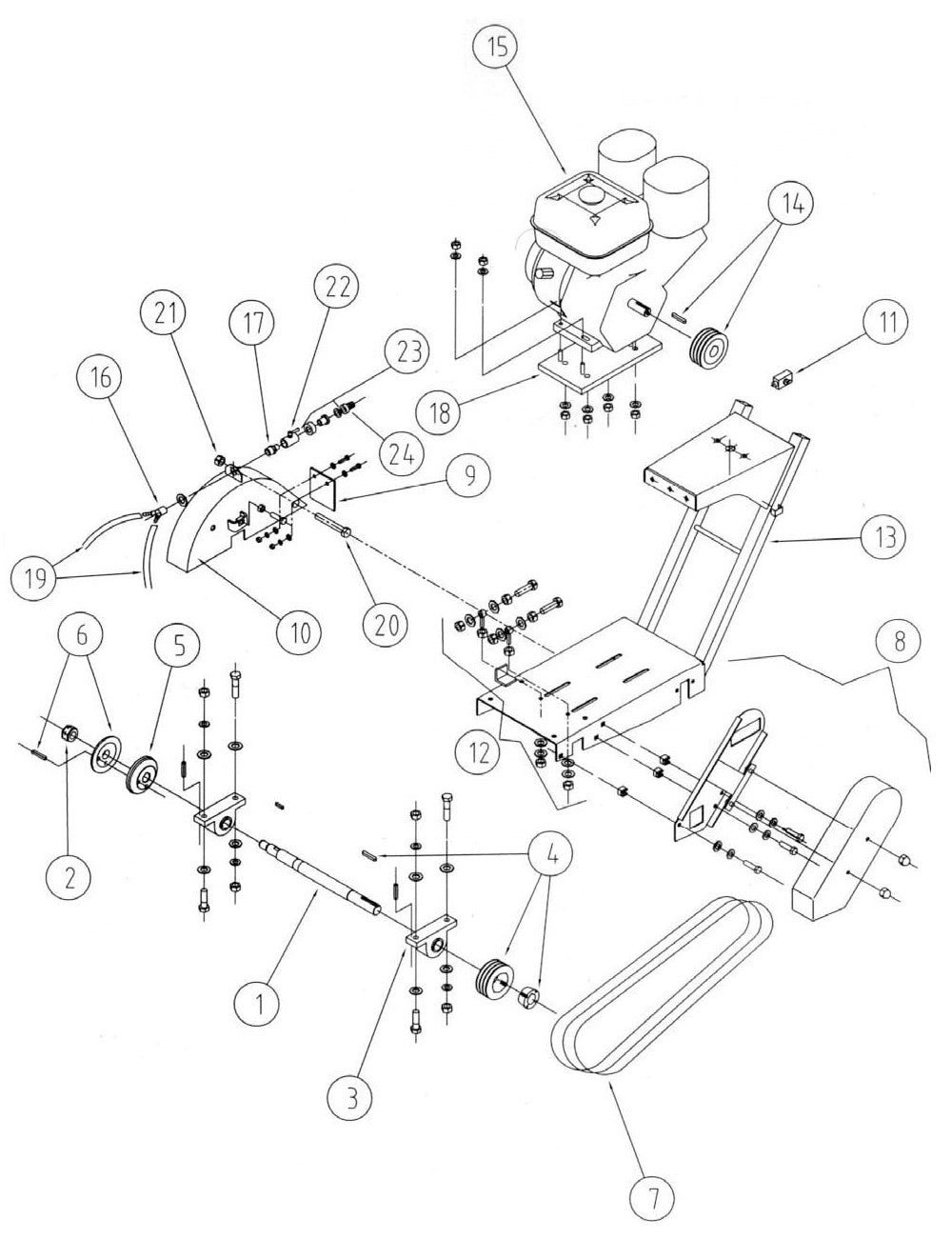

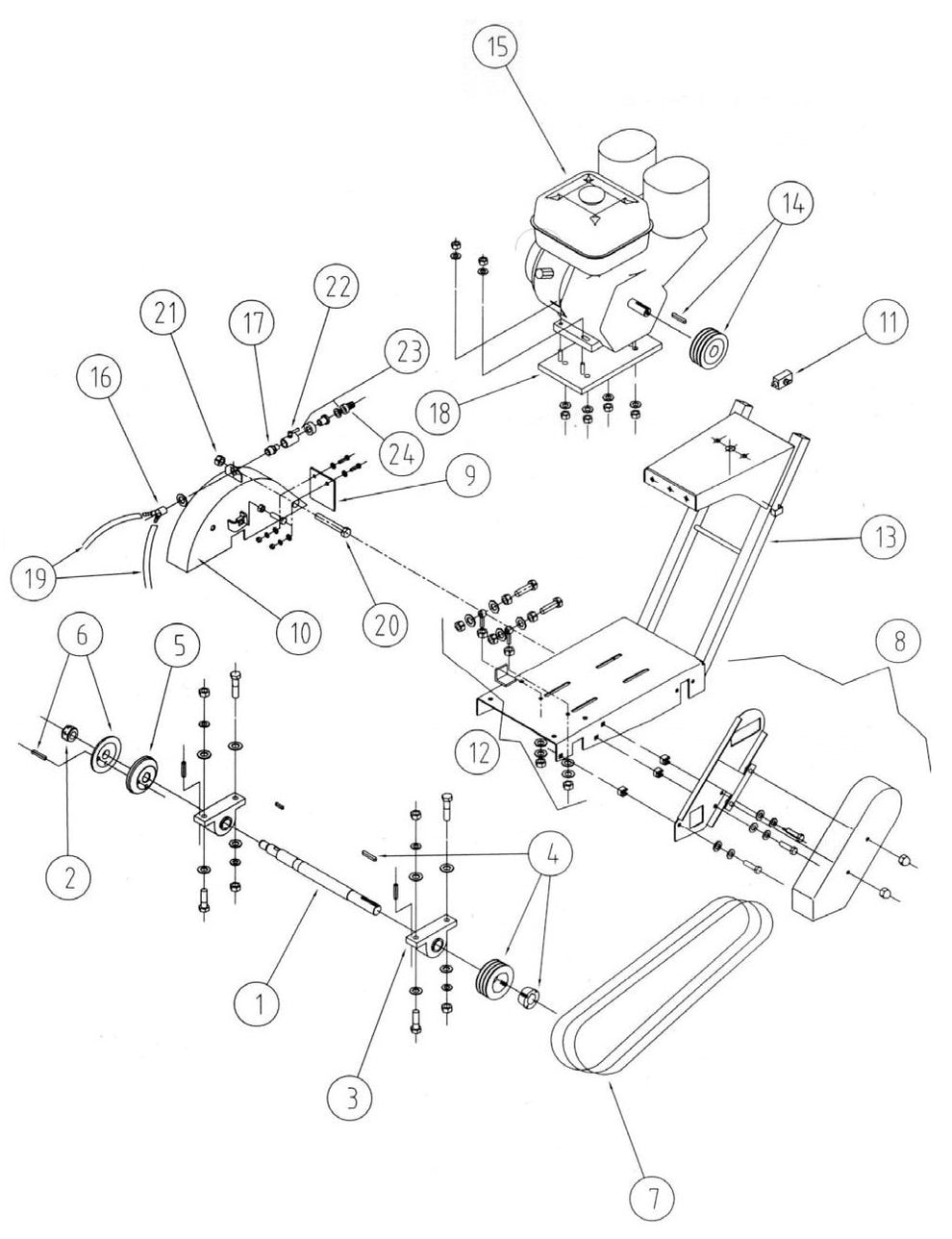

C13E Engine Assembly Parts By Norton Clippers

C13E Engine Assembly Parts By Norton Clippers

  • C13E Engine Assembly Parts By Norton Clippers
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
00310006941 Shaft Blade for C13E Concrete Saws by Norton Clipper
$141.21
2
70184673903 Nut Blade Shaft 3/4-16 Lh for C13E Concrete Saws by Norton Clipper
$62.13
4
70184681117 Pulley Blade Shaft With Bushing for C13E Concrete Saws by Norton Clipper
$136.76
5
70184673904 Collar Tight for C13E Concrete Saws by Norton Clipper
$94.67
6
70184674082  Assembly Outer Flange (Loose) for C1318P Concrete Saws by Norton Clipper
$126.23
7
00310004837  V-Belt for C13E Concrete Saws by Norton Clipper
$102.86
8
27189 Screw Fillister for C13E Concrete Saws by Norton Clipper
$13.78
8
0161 C Lock Washer 5/16" for HDA Series Trowels by Multiquip Whiteman
$4.39
9
00310005586 Splash Guard with Hardware for C13E Concrete Saws by Norton Clipper
$31.30
11
70184674394 Switch Engine On/Off Honda for C118 Concrete Saws by Norton Clipper
$102.86
-
70184681602 Nut M10 Thin 1.5 Din439 for C13E Concrete Saws by Norton Clipper
$10.85
13
00310006940 Frame Engine Weld Only for C13E Concrete Saws by Norton Clipper
$525.37
15
70184671620 ENGINE 13 HP MANUAL START (GX390K1QXC9) for C1316 Concrete Saws by Norton Clipper
$1,796.43
17
70184680835 Adapter 1/2 Hose Barb 3/4 for C13E Concrete Saws by Norton Clipper
$22.93
18
00310007127 Motor Fixing Plate W/Hw for C13E Concrete Saws by Norton Clipper
$116.87
18
70184681299 NOZZEL WATER (Set of 2) for C1316 Concrete Saws by Norton Clipper
$42.26
19
70184681299 NOZZEL WATER (Set of 2) for C1316 Concrete Saws by Norton Clipper
$42.26
20
00310007135 Axle Blade Guard for C13E Concrete Saws by Norton Clipper
$33.50
21
00310007020  Nut Hex M16 X 38Mm for C1318P Concrete Saws by Norton Clipper
$63.39
22
70184674389 Valve Ball 1/2Fmpt X 1/2Fmpt Shutoff for C-355 Concrete Saws by Norton Clipper
$69.74
23
70184674388 Fit 1/2MPT X3/4 F Garden Hose for C119 Concrete Saws by Norton Clipper
$37.57
24
70184680748 Fit Barb Hose 3/4Mptx1/2M for C13E Concrete Saws by Norton Clipper
$28.22
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
