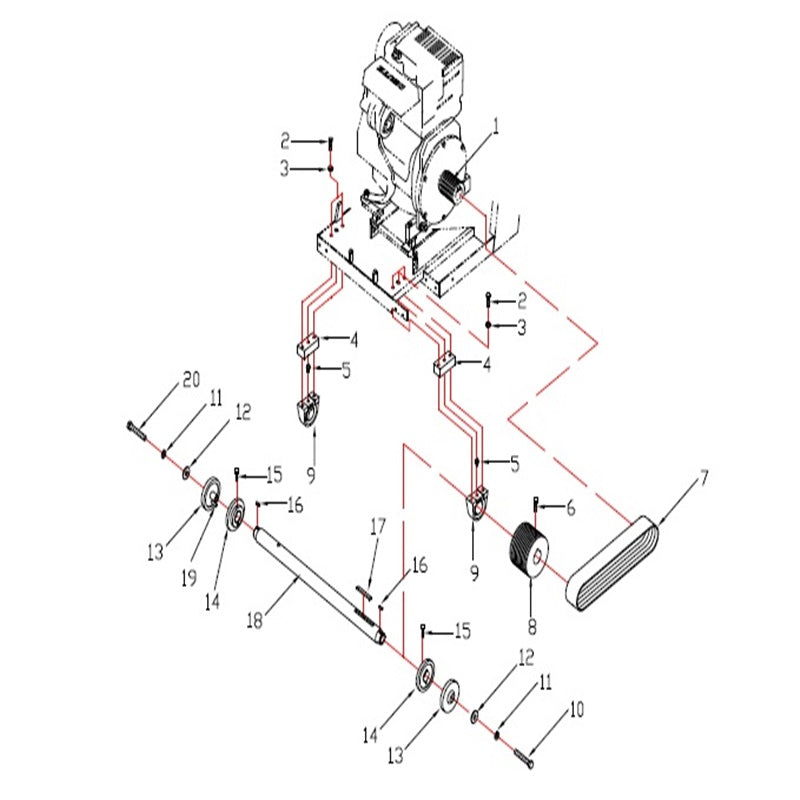

C3120 C6120 Blade Shaft Group(Non-Jackshaft) 31HP and 61HP Parts By Norton Clippers

C3120 C6120 Blade Shaft Group(Non-Jackshaft) 31HP and 61HP Parts By Norton Clippers

  • C3120 C6120 Blade Shaft Group(Non-Jackshaft) 31HP and 61HP Parts By Norton Clippers
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
70184627231 Hexagonal head Cap Screw for C3120 Concrete Saws by Norton Clipper
$13.12
3
70184650156 WASHER 5/8 SPRING LOCK for C1316 Concrete Saws by Norton Clipper
$10.33
11
70184650156 WASHER 5/8 SPRING LOCK for C1316 Concrete Saws by Norton Clipper
$10.33
5
70184659371  Fit Grease for C3120 Concrete Saws by Norton Clipper
$15.71
6
70184627483 Screw for C3120 Concrete Saws by Norton Clipper
Call for Price call for price call for price
7
70184627706 Belt Powerband Set Of (2) for C3120 Concrete Saws by Norton Clipper
$471.92
7
70184623531 Belt (2) for C3120 Concrete Saws by Norton Clipper
Call for Price call for price call for price
8
70184627827 Pulley 4-3/8Od X 2B 10G 3Vx for C3120 Concrete Saws by Norton Clipper
$522.08
8
70184627828 Pulley 7 Od X 2B 10G 3Vx for C3120 Concrete Saws by Norton Clipper
$515.51
9
70184626728 Bearing Tap Base 2 With Zerk In Base for C3120 Concrete Saws by Norton Clipper
$292.88
10
70184659384  Bolt for C3120 Concrete Saws by Norton Clipper
$45.38
12
70184650127 WASHER 5/8 SAE for C1316 Concrete Saws by Norton Clipper
$10.33
13
70184659382 Outer Collar for C3120 Concrete Saws by Norton Clipper
$214.64
15
70184682129  Screw for C3120 Concrete Saws by Norton Clipper
$13.74
16
70184659377 Key 1/4X7/8 for C3120 Concrete Saws by Norton Clipper
$17.66
18
70184627835 Blade Shaft for C3120 Concrete Saws by Norton Clipper
$223.85
18
70184627836 Blade Shaft for C3120 Concrete Saws by Norton Clipper
$223.85
19
70184659375  Drive Pin for C3120 Concrete Saws by Norton Clipper
$19.40
20
70184664289 BOLT 5/8-11X4 LH (RIGHT SIDE) for C3120 Concrete Saws by Norton Clipper
$54.24
