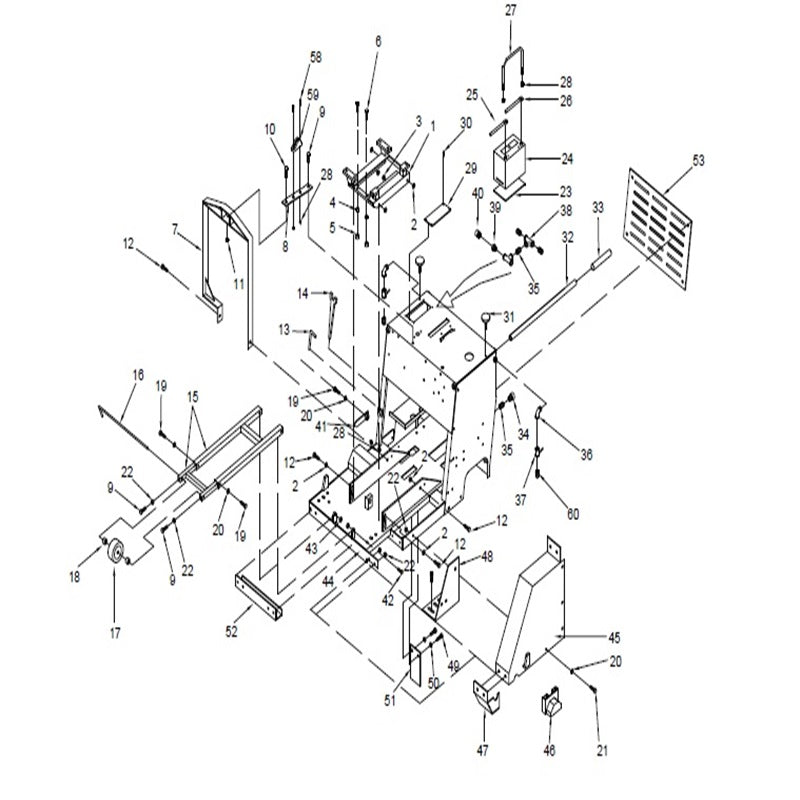

C3120 C6120 Main Frame Group 31HP and 61HP Parts By Norton Clippers

C3120 C6120 Main Frame Group 31HP and 61HP Parts By Norton Clippers

  • C3120 C6120 Main Frame Group 31HP and 61HP Parts By Norton Clippers
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
70184627226 Base Weldment Engine for C3120 Concrete Saws by Norton Clipper
$368.72
2
70184650127 WASHER 5/8 SAE for C3120 Concrete Saws by Norton Clipper
Call for Price call for price call for price
3
70184650376  Nut 5/8-11 Hex Lock for C3120 Concrete Saws by Norton Clipper
$17.66
4
70184650351 Nut 5/8-11 Hex for C3120 Concrete Saws by Norton Clipper
$13.74
5
70184627227 Cap Nylon  for C3120 Concrete Saws by Norton Clipper
$11.77
6
70184627228 Hexagonal head Cap Screw for C3120 Concrete Saws by Norton Clipper
$46.92
7
70184627229 Lift Frame  for C3120 Concrete Saws by Norton Clipper
$223.85
8
70184627230 Lift Frame Brace for C3120 Concrete Saws by Norton Clipper
Call for Price call for price call for price
9
70184649901 Hexagonal head Cap Screw for C1320 Concrete Saws by Norton Clipper
$13.74
10
8041052 Hexagonal head Cap Screw for C3120 Concrete Saws by Norton Clipper
$11.77
11
70184650373 Nut 3/8"-16 UNC Nylock for C13PE Concrete Saws by Norton Clipper
$13.74
12
70184627231 Hexagonal head Cap Screw for C3120 Concrete Saws by Norton Clipper
$13.12
13
70184659093 Pin Lock Bladeshaft for C3120 Concrete Saws by Norton Clipper
$48.38
14
70184659094  Wrench Blade Shaft for C3120 Concrete Saws by Norton Clipper
$102.86
15
70184628917  Front Pointer Assembly for C3120 Concrete Saws by Norton Clipper
$271.97
16
70184627232  Front Pointer Rod for C3120 Concrete Saws by Norton Clipper
$51.99
17
70184659136 Front Wheel Kit for C3120 Concrete Saws by Norton Clipper
Call for Price call for price call for price
18
70184659135  Collar Set 1/2 for C3120 Concrete Saws by Norton Clipper
$11.77
19
70184627233  Screw Thumb 3/8-16 X 2 for C3120 Concrete Saws by Norton Clipper
$39.13
20
70184650149 WASHER 3/8 SPRING LOCK for C1320 Concrete Saws by Norton Clipper
$11.77
21
70184649900 Hexagon Head Cap Screw 3/8-16 X 1 for C118 Concrete Saws by Norton Clipper
$11.77
22
70184629378 Switch Emergency Stop for C3120 Concrete Saws by Norton Clipper
$156.29
23
70184627090 Mat Battery 7 X10 for C3120 Concrete Saws by Norton Clipper
$36.00
25
70184627089 Cable Battery Positive for C3120 Concrete Saws by Norton Clipper
$195.30
26
70184627088 Cable Battery Negative for C3120 Concrete Saws by Norton Clipper
$195.30
27
70184627234  Battery Clip for C3120 Concrete Saws by Norton Clipper
$57.18
28
70184650371 NUT 1/4-20 HEX LOCK for C1320 Concrete Saws by Norton Clipper
$13.74
29
70184627235  Cover Plate for C3120 Concrete Saws by Norton Clipper
$49.85
30
70184627236  Screw Socket Head for C3120 Concrete Saws by Norton Clipper
$8.65
31
70184659108 Knob Handle Lock for C3120 Concrete Saws by Norton Clipper
Call for Price call for price call for price
32
70184629385 Handle Bar  for C3120 Concrete Saws by Norton Clipper
$92.55
33
70184674393 Hand Grip for C118 Concrete Saws by Norton Clipper
$26.45
34
70184659115 SWIVEL HOSE 3/4 GH FEMALE x 1/2 FP FEMALE for C1316 Concrete Saws by Norton Clipper
$28.22
35
70184650689 Nipple Pipe 1/2 X 1 1/2 for C3120 Concrete Saws by Norton Clipper
$15.71
36
70184659098  Elbow 1/2 Pipe for C3120 Concrete Saws by Norton Clipper
$26.45
37
70184659097 Valve Water 1/2 for C3120 Concrete Saws by Norton Clipper
$49.85
38
70184659117 Part for C3120 Concrete Saws by Norton Clipper
Call for Price call for price call for price
39
70184659146 Bushing Reducer for C3120 Concrete Saws by Norton Clipper
$15.71
40
70184665435  SWITCH PRESSURE SHUT OFF for C3120 Concrete Saws by Norton Clipper
Call for Price call for price call for price
41
70184680842  Pointer Rear Weldmnt for C3120 Concrete Saws by Norton Clipper
$54.52
42
70184649926 Hexagonal head Cap Screw for C3120 Concrete Saws by Norton Clipper
$15.71
43
70184650375  Nut 1/2-13 Hex Lock for C3120 Concrete Saws by Norton Clipper
$50.72
44
70184627237 Main Frame Weldment  for C3120 Concrete Saws by Norton Clipper
$1,903.06
44
70184627238 Main Frame Weldment  for C3120 Concrete Saws by Norton Clipper
$1,903.06
45
70184627084  Belt guard for C3120 Concrete Saws by Norton Clipper
$219.25
46
70184627240 Shaft Guard Weldment for C3120 Concrete Saws by Norton Clipper
$78.62
47
70184627085 Part for C3120 Concrete Saws by Norton Clipper
Call for Price call for price call for price
48
70184629386  Belt Guard Reinforcement for C3120 Concrete Saws by Norton Clipper
$72.28
49
70184649879 Hexagon Head Cap Screw 1/4-20 X 1 for C35B Concrete Saws by Norton Clipper
$11.77
50
70184650120 Washer 1/4 Sae for C118 Concrete Saws by Norton Clipper
$11.77
51
70184659145 Part for C3120 Concrete Saws by Norton Clipper
Call for Price call for price call for price
