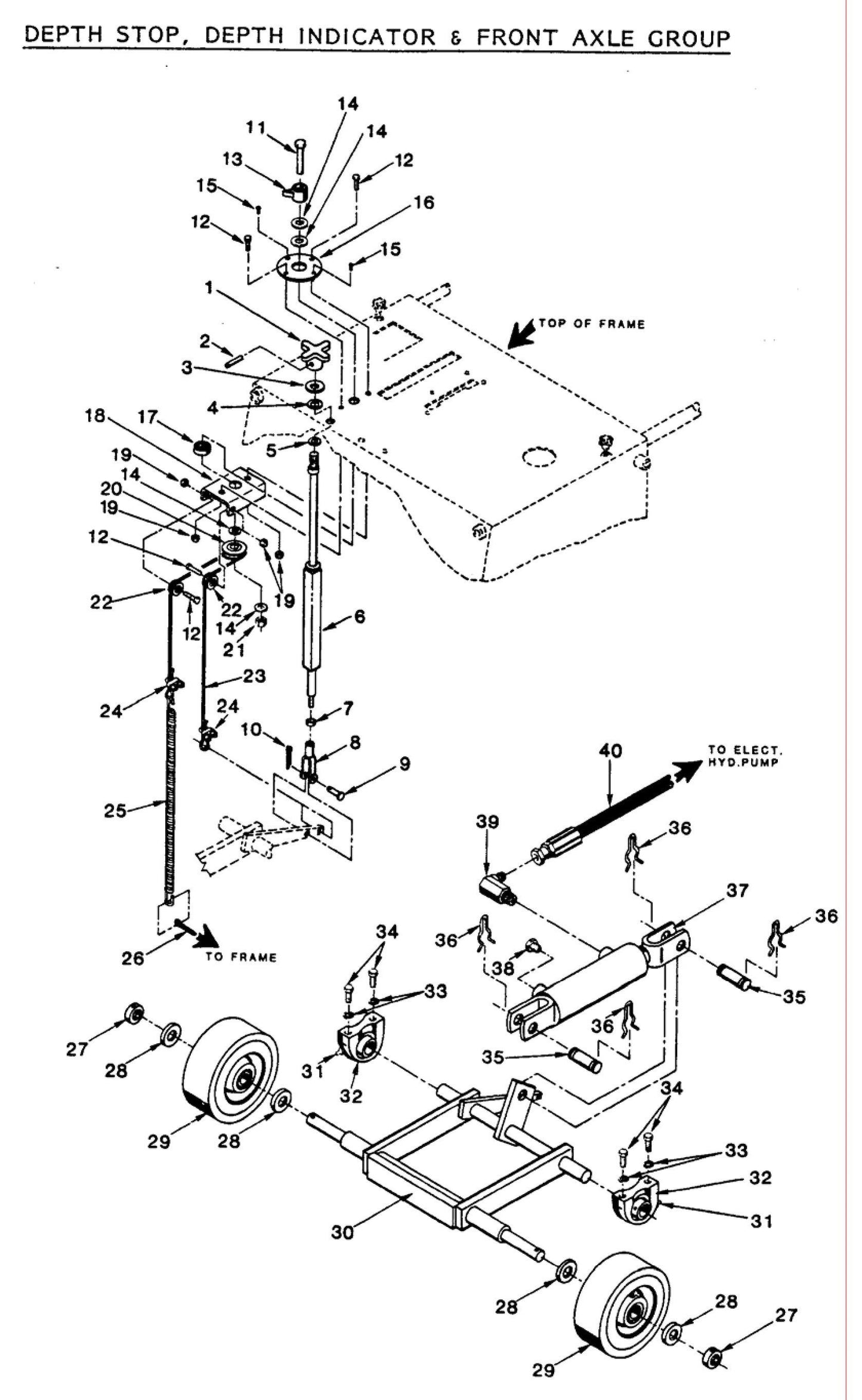

C65B Depth Stop, Depth Indicator And Front Axle Group Parts By Norton Clippers

C65B Depth Stop, Depth Indicator And Front Axle Group Parts By Norton Clippers

  • C65B Depth Stop, Depth Indicator And Front Axle Group Parts By Norton Clippers
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
70184659262 DEPTH STOP HANDLE for C1316 Concrete Saws by Norton Clipper
$90.62
2
70184650511 Pin 3/16 X 1-1/4 Roll for C65B Concrete Saws by Norton Clipper
$13.74
3
N1D0025 Part for C65B Concrete Saws by Norton Clipper
Call for Price call for price call for price
4
70184600914 Washer Friction 1/2 for C65B Concrete Saws by Norton Clipper
$10.81
11
70184649906 Hexagonal head Cap Screw for C118 Concrete Saws by Norton Clipper
$15.77
12
70184649877 Hexagonal head Cap Screw for C65B Concrete Saws by Norton Clipper
$11.77
13
70184629235  Depth Indicator Pointer for C65B Concrete Saws by Norton Clipper
$57.18
16
70184659272 Plate Depth Ind for C65B Concrete Saws by Norton Clipper
$36.00
17
70184659273 Bearing Flange for C65B Concrete Saws by Norton Clipper
$34.43
18
N1E0063 Bracket Mount Depth indicator for C65B Concrete Saws by Norton Clipper
Call for Price call for price call for price
20
70184659275 Pulley Cable for C65B Concrete Saws by Norton Clipper
$63.39
22
70184659276  Pulley Cable for C65B Concrete Saws by Norton Clipper
$32.87
24
70184659278 Clamp Cable for C65B Concrete Saws by Norton Clipper
$13.74
26
70184659280 Pin Cotter for C65B Concrete Saws by Norton Clipper
$13.74
27
70184679335 Collar Set 1.0 Id for C65B Concrete Saws by Norton Clipper
$31.75
28
70184650132  Washer 1 Sae for C65B Concrete Saws by Norton Clipper
Call for Price call for price call for price
29
70184674070  Wheel Front 8 X 3 X 1 With Bearing for C65B Concrete Saws by Norton Clipper
$270.84
30
70184659284  Axle Front Weld for C65B Concrete Saws by Norton Clipper
$676.87
32
70184659246 Bearing Tap Base 1-1/4 for C65B Concrete Saws by Norton Clipper
$199.08
33
70184650154 WASHER 1/2 SPRING LOCK for C1316 Concrete Saws by Norton Clipper
$11.77
35
70184659288 Pin Cylinder for C65B Concrete Saws by Norton Clipper
$103.74
36
70184625439  Pin Hair Cotter for C65B Concrete Saws by Norton Clipper
$7.27
38
70184659291  Breather Cylinder 1/2 Mpt for C65B Concrete Saws by Norton Clipper
$28.22
40
70184659293 Hose Hyd for C65B Concrete Saws by Norton Clipper
$63.39
View full details
