CA-2504-0MHB, CA-2504-0MHB (sn:10307199-10751893) Pump Assembly Parts By Mi-T-M

CA-2504-0MHB, CA-2504-0MHB (sn:10307199-10751893) Pump Assembly Parts By Mi-T-M

  • CA-2504-0MHB, CA-2504-0MHB (sn:10307199-10751893) Pump Assembly Parts By Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
27-8432 Screw for MiTM Air Compressors by MiTM 278432
$10.04
2
46-0714 Flange For Rkv Pumps-Type F24 for AM2-SE75-80M Air Compressor by Mi-T-M 460714
$132.42
3
26-0194 Seal Oil for AC2-PE05-30M Air Compressor by Mi-T-M 260194
$73.49
4
25-0397 O-Ring 72.75 X 1.78Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250397
$9.72
5
48-0062 Bearing Tapered Roller for AC2-PE05-30M Air Compressor by Mi-T-M 480062
$146.70
6
27-8886 Screw for MiTM Air Compressors by MiTM 278886
$7.43
7
46-0895 Crankshaft for MiTM Pressure Washers by MiTM 460895
$443.18
8
39-0203 Outlet Plug for MiTM Air Compressors by MiTM 390203
$11.42
10
27-8885 Bolt for MiTM Pressure Washers by MiTM 278885
$7.65
17
46-0922 Connecting Rod Bronze for AC2-PE05-30M Air Compressor by Mi-T-M 460922
$146.01
18
46-0698 Pump Piston Pin for AC2-PE05-30M Air Compressor by Mi-T-M 460698
$17.36
19
46-0699 Pump Plunger Rod for AC2-PE05-30M Air Compressor by Mi-T-M 460699
$133.70
20
46-0700 Pump-Slinger Washer for AC2-PE05-30M Air Compressor by Mi-T-M 460700
$5.99
21
25-0404 Backup Ring 8 X 1Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250404
$7.28
22
25-0382 O-Ring for MiTM Air Compressors by MiTM 250382
Call for Price call for price call for price
23
46-0701 Pump Piston Ceramic for AC2-PE05-30M Air Compressor by Mi-T-M 460701
$168.63
24
26-0191 Seal-Washer/Gasket for AC2-PE05-30M Air Compressor by Mi-T-M 260191
$5.99
25
30-6020 Nut for MiTM Air Compressors by MiTM 306020
$19.71
27
46-0811 Pump-Crankcase Xr New Style for AC2-PE05-30M Air Compressor by Mi-T-M 460811
$578.33
28
48-0072 Non Driven Tap Roller Bearing for AC2-PE05-30M Air Compressor by Mi-T-M 480072
$129.35
29
25-0380 O-Ring 60 X 2.62Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250380
$19.59
30
46-0705 Pump Shim .2Mm for AC2-PE05-30M Air Compressor by Mi-T-M 460705
$7.28
31
46-0704 Pump Shim .1Mm for AC2-PE05-30M Air Compressor by Mi-T-M 460704
$7.28
32
46-0703 Pump-Bearing Cap/Support for AC2-PE05-30M Air Compressor by Mi-T-M 460703
$88.83
33
27-8884 Screw for MiTM Air Compressors by MiTM 278884
$4.43
34
39-0095 Cap Valve Brass for AC2-PE05-30M Air Compressor by Mi-T-M 390095
$38.81
38
8-0533 Unloader Assy W/ Qc & Banjo Bolts for MiTM Air Compressors by MiTM 80533
$135.08
39
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
40
27-8440 Screw for MiTM Air Compressors by MiTM 278440
$10.38
41
25-0387 O-Ring 10.82 X 1.78Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250387
$4.28
42
39-0096 Plug Brass for AC2-PE05-30M Air Compressor by Mi-T-M 390096
$21.80
43
46-0711 Pump Manifold Brass for AC2-PE05-30M Air Compressor by Mi-T-M 460711
$862.85
45
39-0202 Plug for MiTM Pressure Washers by MiTM 390202
$28.80
46
25-0510 O-Ring I.D. 14X1.75Mm for AC2-SH11-30M Air Compressor by Mi-T-M 250510
$7.28
47
46-0710 Support Ring (See Kit 70-0178) for MiTM Pressure Washers by MiTM 460710
$21.14
48
46-0709 V Packing (See Kit 70-0177) for MiTM Pressure Washers by MiTM 460709
$102.14
49
46-0708 Pump Packing Retainer for AC2-PE05-30M Air Compressor by Mi-T-M 460708
$58.77
50
46-0707 Low Pressure Seal (See Kit 70-0177) for MiTM Pressure Washers by MiTM 460707
$72.24
51
25-0384 O-Ring 31.47 X 1.78Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250384
$8.99
52
46-0931 Oil Seal-20 X 28 X 5.5Mm for AC2-PE05-30M Air Compressor by Mi-T-M 460931
$57.15
-
70-0337 Kit-Oil Seal for AC2-PE05-30M Air Compressor by Mi-T-M 700337
$166.22
-
70-0352 Kit-Piston 18Mm for AC2-PE05-30M Air Compressor by Mi-T-M 700352
$374.64
-
70-0177 Kit High Pressure Seal 18Mm for AC2-PE05-30M Air Compressor by Mi-T-M 700177
$243.29
-
70-0178 Kit Support Ring 18Mm for AC2-PE05-30M Air Compressor by Mi-T-M 700178
$48.98
-
70-0179 Kit Valves for AC2-PE05-30M Air Compressor by Mi-T-M 700179
$152.18
9
25-0325 O-Ring 1,78 X 14Mm for AC1-HE02-05M by Mi-T-M 250325
$3.99
11
46-0719 Pump Cover Crankcase for AC1-HE02-05M by Mi-T-M 460719
$75.45
12
25-0370 O-Ring 20.24 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250370
$4.85
13
46-0670 Oil Sight Glass for AC1-HE02-05M by Mi-T-M 460670
$7.76
14
46-0824 Pump Reflector Oil for AC1-HE02-05M by Mi-T-M 460824
$4.85
15
46-0671 Spring Retainer-Oil Sight Glas for AC1-HE02-05M by Mi-T-M 460671
$5.99
16
25-0398 O-Ring 107.62 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250398
$5.99
26
39-0090 Oil Dipstick for AC1-HE02-05M by Mi-T-M 390090
$27.14
35
25-0160 O-Ring 17.86 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250160
$5.99
37
25-0386 O-Ring 15.54 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250386
$4.85
44
25-0372 O-Ring 17.5 X 2Mm for AC1-HE02-05M by Mi-T-M 250372
$4.85
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

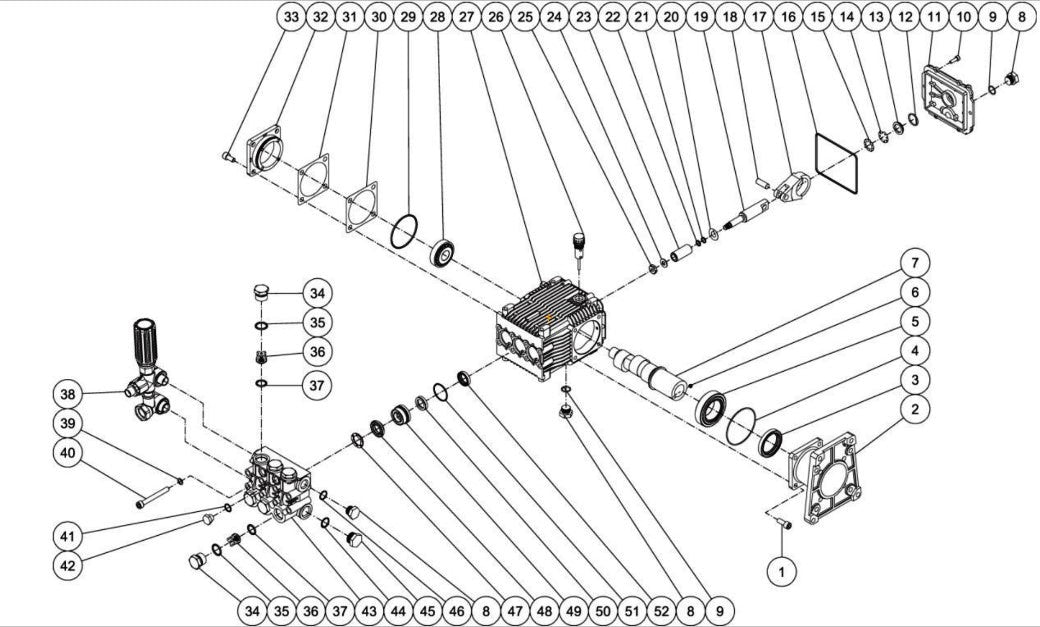

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
