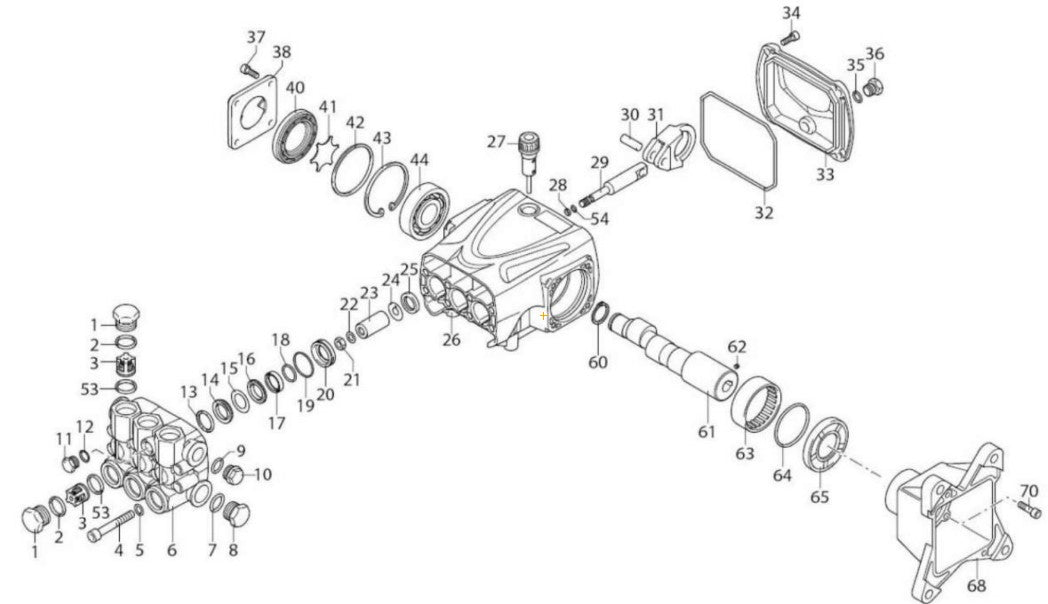

CA-2504-0MHB, CA-2504-0MRB (sn:10761653-10919992) Pump Assembly Parts By Mi-T-M

CA-2504-0MHB, CA-2504-0MRB (sn:10761653-10919992) Pump Assembly Parts By Mi-T-M

  • CA-2504-0MHB, CA-2504-0MHB (sn:10761653-10919992) Pump Assembly Parts By Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
39-0095 Cap Valve Brass for AC2-PE05-30M Air Compressor by Mi-T-M 390095
$38.81
4
27-0905 Hshcs-Zi M8 X 55 Mm for MiTM Pressure Washers by MiTM 270905
$9.99
5
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
8
39-0202 Plug for MiTM Pressure Washers by MiTM 390202
$28.80
9
25-0510 O-Ring I.D. 14X1.75Mm for AC2-SH11-30M Air Compressor by Mi-T-M 250510
$7.28
10
39-0203 Outlet Plug for MiTM Air Compressors by MiTM 390203
$11.42
11
39-0096 Plug Brass for AC2-PE05-30M Air Compressor by Mi-T-M 390096
$21.80
36
39-0096 Plug Brass for AC2-PE05-30M Air Compressor by Mi-T-M 390096
$21.80
12
25-0387 O-Ring 10.82 X 1.78Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250387
$4.28
35
25-0387 O-Ring 10.82 X 1.78Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250387
$4.28
19
25-0149 O-Ring 23.52 X 1.78Mm for AP1-PI55-08M (AFTER S/N 20005741) Air Compressor by Mi-T-M 250149
$7.28
21
30-6016 Nut for MiTM Air Compressors by MiTM 306016
$8.75
24
28-1027 Slinger Washer for MiTM Air Compressors by MiTM 281027
$8.93
33
46-1482 Rear Cover for MiTM Pressure Washers by MiTM 461482
$122.96
34
27-8888 Screw for MiTM Air Compressors by MiTM 278888
$8.93
37
27-8888 Screw for MiTM Air Compressors by MiTM 278888
$8.93
38
46-1453 Crankcase Cover for MiTM Pressure Washers by MiTM 461453
$55.40
40
46-1483 Oil Indicator for MiTM Pressure Washers by MiTM 461483
Call for Price call for price call for price
41
46-1451 Oil Disc for MiTM Pressure Washers by MiTM 461451
Call for Price call for price call for price
43
46-1484 Snap Ring for MiTM Pressure Washers by MiTM 461484
$25.49
44
48-0094 Ball Bearing for MiTM Pressure Washers by MiTM 480094
$78.78
54
25-0395 Backup Ring 5 X 8 X 1Mm for AC2-SH08-20M Air Compressor by Mi-T-M 250395
$9.15
60
46-1485 Circlip for MiTM Pressure Washers by MiTM 461485
$7.49
62
27-8886 Screw for MiTM Air Compressors by MiTM 278886
$7.43
63
48-0095 Ball Bearing for MiTM Pressure Washers by MiTM 480095
$57.44
64
25-0657 O-Ring 56.87 X 1.78Mm for MiTM Pressure Washers by MiTM 250657
Call for Price call for price call for price
65
46-1486 Snap Ring (See Kit 70-0591) for MiTM Pressure Washers by MiTM 461486
Call for Price call for price call for price
68
46-1487 Flange for MiTM Pressure Washers by MiTM 461487
$247.07
70
27-8812 Screw for MiTM Pressure Washers by MiTM 278812
$7.49
-
70-0179 Kit Valves for AC2-PE05-30M Air Compressor by Mi-T-M 700179
$152.18
-
70-0590 Water Seals Kit (Inc. 3 Each 14, 15, 17, 18, 19) for MiTM Pressure Washers by MiTM 700590
$167.52
-
70-0591 Oil Seals Kit (Inc. 65; Inc. 3 Each 25) for MiTM Pressure Washers by MiTM 700591
$84.08
-
70-0592 O-Rings Kit (Inc. 7, 9, 35, 42; Inc. 3 Each 28, 32; Inc. 6 Each 2) for MiTM Pressure Washers by MiTM 700592
$41.18
-
70-0460 Support Ring Kit (Inc. 3 Each 13) for MiTM Pressure Washers by MiTM 700460
$19.17
-
70-0619 Piston Guide Kit (Incs. 3 Each 16, 20) for MiTM Pressure Washers by MiTM 700619
$98.00
7
25-0372 O-Ring 17.5 X 2Mm for AC1-HE02-05M by Mi-T-M 250372
$4.85
22
26-0187 Washer/Gasket for AC1-HE02-05M by Mi-T-M 260187
$3.99
23
46-0723 Pump Piston Ceramic for AC1-HE02-05M by Mi-T-M 460723
$99.92
25
26-0193 Seal Oil for AC1-HE02-05M by Mi-T-M 260193
$22.85
27
39-0090 Oil Dipstick for AC1-HE02-05M by Mi-T-M 390090
$27.14
28
25-0371 O-Ring 4.48 X 1.78Mm for AC1-HE02-05M by Mi-T-M 250371
$3.99
53
25-0386 O-Ring 15.54 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250386
$4.85
