CA-3003-0MHB/0MRB/0MKB, JP-3003-0MHB/RB Pump Assembly Parts by Mi-T-M

CA-3003-0MHB/0MRB/0MKB, JP-3003-0MHB/RB Pump Assembly Parts by Mi-T-M

  • CA-3003-0MHB/0MRB/0MKB, JP-3003-0MHB/RB Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
27-8432 Screw for MiTM Air Compressors by MiTM 278432
$10.04
2
46-0714 Flange For Rkv Pumps-Type F24 for AM2-SE75-80M Air Compressor by Mi-T-M 460714
$132.42
3
26-0192 Seal Oil for AC1-SE05-60M Air Compressor by Mi-T-M 260192
$63.32
6
27-8886 Screw for MiTM Air Compressors by MiTM 278886
$7.43
7
46-0717 Pump Crankshaft for AC1-SE05-60M Air Compressor by Mi-T-M 460717
$519.44
8
39-0086 Plug Brass for MiTM Air Compressors by MiTM 390086
$10.77
10
27-8888 Screw for MiTM Air Compressors by MiTM 278888
$8.93
20
28-1027 Slinger Washer for MiTM Air Compressors by MiTM 281027
$8.93
24
30-6016 Nut for MiTM Air Compressors by MiTM 306016
$8.75
36
29-0153 Lockwasher for MiTM Air Compressors by MiTM 290153
$7.43
37
27-8875 Screw for MiTM Air Compressors by MiTM 278875
$19.58
42
46-0729 Pump V-Packing for AM2-SE05-30M Air Compressor by Mi-T-M 460729
$75.89
44
46-0727 Pump Low Pressure Seal for AM2-PY09-30M Air Compressor by Mi-T-M 460727
$25.91
46
25-0149 O-Ring 23.52 X 1.78Mm for AP1-PI55-08M (AFTER S/N 20005741) Air Compressor by Mi-T-M 250149
$7.28
4
46-0667 Retaining Ring for AC1-HE02-05M by Mi-T-M 460667
$27.90
5
48-0059 Bearing Needle for AC1-HE02-05M by Mi-T-M 480059
$87.81
9
25-0325 O-Ring 1,78 X 14Mm for AC1-HE02-05M by Mi-T-M 250325
$3.99
11
46-0719 Pump Cover Crankcase for AC1-HE02-05M by Mi-T-M 460719
$75.45
12
25-0370 O-Ring 20.24 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250370
$4.85
13
46-0670 Oil Sight Glass for AC1-HE02-05M by Mi-T-M 460670
$7.76
14
46-0824 Pump Reflector Oil for AC1-HE02-05M by Mi-T-M 460824
$4.85
15
46-0671 Spring Retainer-Oil Sight Glas for AC1-HE02-05M by Mi-T-M 460671
$5.99
16
25-0398 O-Ring 107.62 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250398
$5.99
17
46-0720 Pump-Connecting Rod-Aluminum for AC1-HE02-05M by Mi-T-M 460720
$39.30
18
46-0721 Pump Piston Pin for AC1-HE02-05M by Mi-T-M 460721
$11.57
19
46-0722 Pump Plunger Rod for AC1-HE02-05M by Mi-T-M 460722
$65.04
21
25-0371 O-Ring 4.48 X 1.78Mm for AC1-HE02-05M by Mi-T-M 250371
$3.99
22
46-0723 Pump Piston Ceramic for AC1-HE02-05M by Mi-T-M 460723
$99.92
23
26-0187 Washer/Gasket for AC1-HE02-05M by Mi-T-M 260187
$3.99
38
46-0730 Pump Manifold Brass for AC1-HE02-05M by Mi-T-M 460730
$377.59
39
25-0372 O-Ring 17.5 X 2Mm for AC1-HE02-05M by Mi-T-M 250372
$4.85
40
39-0088 Plug Steel 1/2-14Bspp for AC1-HE02-05M by Mi-T-M 390088
$20.25
41
70-0182 Kit Support Ring 15 for AC1-HE02-05M by Mi-T-M 700182
$22.95
-
70-0182 Kit Support Ring 15 for AC1-HE02-05M by Mi-T-M 700182
$22.95
43
46-0728 Pump Packing Retainer for AC1-HE02-05M by Mi-T-M 460728
$23.53
45
46-0726 Pump Retainer-Low Pressure for AC1-HE02-05M by Mi-T-M 460726
$19.45
47
26-0193 Seal Oil for AC1-HE02-05M by Mi-T-M 260193
$22.85
-
70-0181 Kit High Pressure Seal 15Mm for AC1-HE02-05M by Mi-T-M 700181
$142.52
-
70-0161 Kit Valve for AC1-HE02-05M by Mi-T-M 700161
$87.87
33
70-0161 Kit Valve for AC1-HE02-05M by Mi-T-M 700161
$87.87
25
39-0090 Oil Dipstick for AC1-HE02-05M by Mi-T-M 390090
$27.14
26
46-0724 Pump Crankcase for AC1-HE02-05M by Mi-T-M 460724
$245.32
27
48-0063 Bearing Ball for AC1-HE02-05M by Mi-T-M 480063
$83.17
28
46-0732 Pump Retainer for AC1-HE02-05M by Mi-T-M 460732
$2.85
29
46-0676 Retaining Ring for AC1-HE02-05M by Mi-T-M 460676
$7.40
30
46-0725 Pump Bearing Cap for AC1-HE02-05M by Mi-T-M 460725
$18.73
31
39-0087 Valve Cap M22 1.50P for AC1-HE02-05M by Mi-T-M 390087
$38.56
32
25-0160 O-Ring 17.86 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250160
$5.99
34
25-0386 O-Ring 15.54 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250386
$4.85
35
39-0097 Plug Brass for AC1-HE02-05M by Mi-T-M 390097
$6.96
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

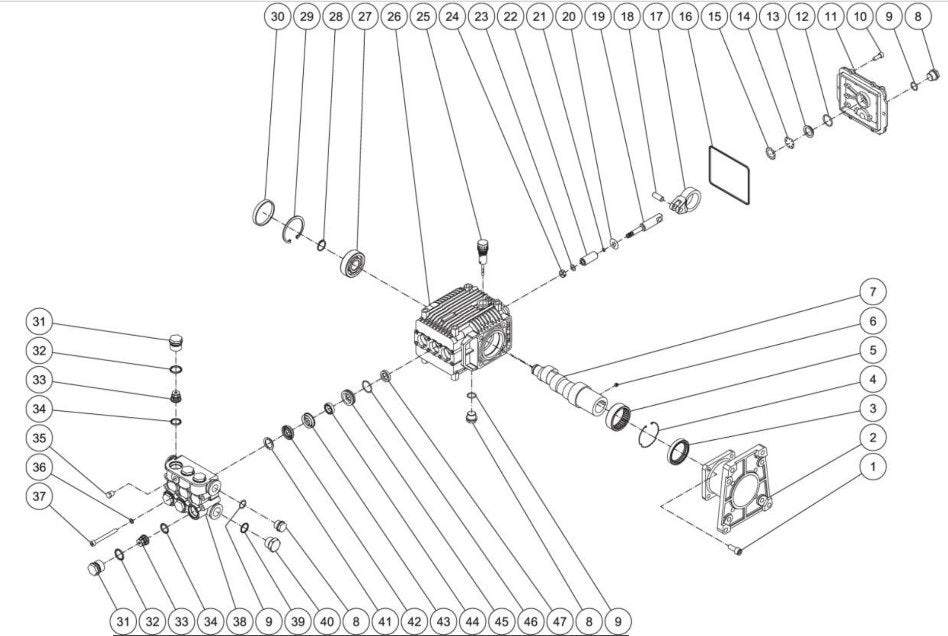

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
