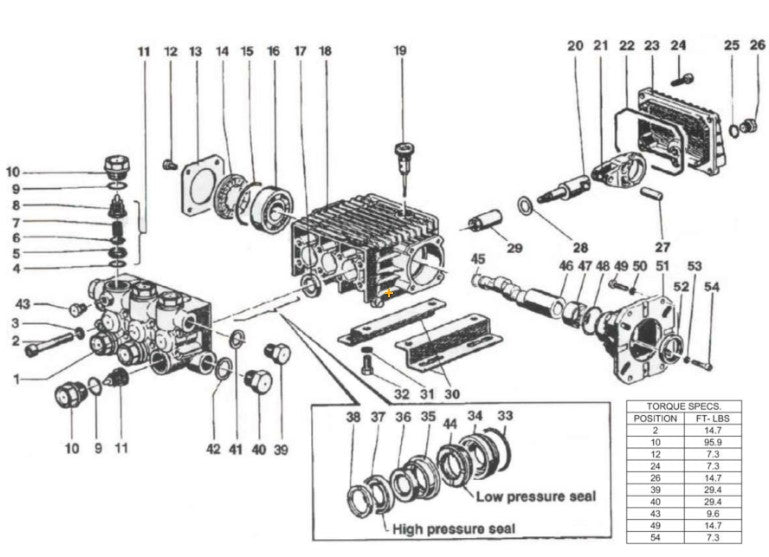

CA-3504-1MGH/1MHB, CA-4004-0FHA/0FHG/1FHG/1MCM/1MGH/1MGM/1MHB/2FHG Pump Assembly Parts by Mi-T-M

CA-3504-1MGH/1MHB, CA-4004-0FHA/0FHG/1FHG/1MCM/1MGH/1MGM/1MHB/2FHG Pump Assembly Parts by Mi-T-M

  • CA-3504-1MGH/1MHB, CA-4004-0FHA/0FHG/1FHG/1MCM/1MGH/1MGM/1MHB/2FHG Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
46-1391 Manifold for MiTM Pressure Washers by MiTM 461391
$1,234.65
2
27-8439 Bolt for MiTM Pressure Washers by MiTM 278439
$12.75
3
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
4
25-0053 O-Ring (See Kit 70-0028) for MiTM Pressure Washers by MiTM 250053
$7.49
10
39-0071 Valve Plug for AP1-PI65-08M Air Compressor by Mi-T-M 390071
$66.48
11
46-0565 Valve Assembly (See Kit 70-0028) for MiTM Pressure Washers by MiTM 460565
$291.41
12
27-8000 Bolt for MiTM Pressure Washers by MiTM 278000
$4.49
14
46-0574 Oil Level Indicator/Spacer for AM2-PH09-08AB Air Compressor by Mi-T-M 460574
$40.14
16
46-1392 Ball Bearing for MiTM Pressure Washers by MiTM 461392
$100.76
17
26-0046 Oil Seal (See Kit 70-0391) for MiTM Pressure Washers by MiTM 260046
$46.08
18
46-0570 Crankcase for MiTM Pressure Washers by MiTM 460570
Call for Price call for price call for price
20
46-1393 Piston Guide for MiTM Pressure Washers by MiTM 461393
$528.38
21
46-0572 Connecting Rod for AS2-PE05-08M Air Compressor by Mi-T-M 460572
$106.58
22
46-1394 O-Ring for MiTM Pressure Washers by MiTM 461394
$8.25
23
46-0571 Crankcase Cover Rear for AS2-PE05-08M Air Compressor by Mi-T-M 460571
$137.34
24
24-8401 Bolt for MiTM Pressure Washers by MiTM 248401
$7.88
25
25-0014 O-Ring 7/16 X 9/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250014
$1.99
27
43-0079 Pin/Connecting Rod for AS2-PE05-08M Air Compressor by Mi-T-M 430079
$30.78
28
46-1395 Washer for MiTM Pressure Washers by MiTM 461395
$10.20
40
39-0019 Plug/Hex for AC1-HE15-05M Air Compressor by Mi-T-M 390019
$27.85
41
28-0600 Washer for MiTM Pressure Washers by MiTM 280600
$39.59
42
46-1402 Washer for MiTM Pressure Washers by MiTM 461402
$9.11
43
39-0032 Cap Screw for MiTM Pressure Washers by MiTM 390032
$8.25
45
46-0104 Circlip for MiTM Pressure Washers by MiTM 460104
$4.49
46
46-1404 Crankshaft for MiTM Pressure Washers by MiTM 461404
$696.27
47
48-0040 Needle Bearing/Hk 4520 for AP1-PI65-08M Air Compressor by Mi-T-M 480040
$175.01
48
25-0316 O-Ring for MiTM Pressure Washers by MiTM 250316
Call for Price call for price call for price
51
38-0038 Flange Gas for AP1-PI65-08M Air Compressor by Mi-T-M 380038
$125.01
52
26-0181 Seal/Oil for AP1-PI65-08M Air Compressor by Mi-T-M 260181
$67.88
53
29-0153 Lockwasher for MiTM Air Compressors by MiTM 290153
$7.43
54
70-0028 Kit Valve for AM2-PH09-08AB Air Compressor by Mi-T-M 700028
$208.22
54
70-0391 Kit Oil Seal for AS2-PE05-08M Air Compressor by Mi-T-M 700391
$87.23
54
70-0552 Pressure Seal (Inc. 33-38, 44) for MiTM Pressure Washers by MiTM 700552
$320.42
54
70-0553 General Pressure Seal (Inc. 3 Of 36, 37, 44) for MiTM Pressure Washers by MiTM 700553
$289.65
9
25-0012 O-Ring 20.69 X 2.62Mm for AC1-HE02-05M1 Air Compressor by Mi-T-M 250012
$1.99
13
46-0084 Retainer/Oil Level/Spacer for AC1-HE02-05M1 Air Compressor by Mi-T-M 460084
$21.98
15
25-0060 O-Ring 55.56 X 3.53Mm for AC1-HE02-05M1 Air Compressor by Mi-T-M 250060
$8.44
19
46-0143 Dipstick for AC1-HE02-05M1 Air Compressor by Mi-T-M 460143
Call for Price call for price call for price
26
39-0017 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390017
$19.87
39
39-0018 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390018
$27.85
54
27-8404 Hshcs M6-1.0P X 30Mm for MI-T-M 3004-0ME1 CW Series by MiTM 278404
$7.51
