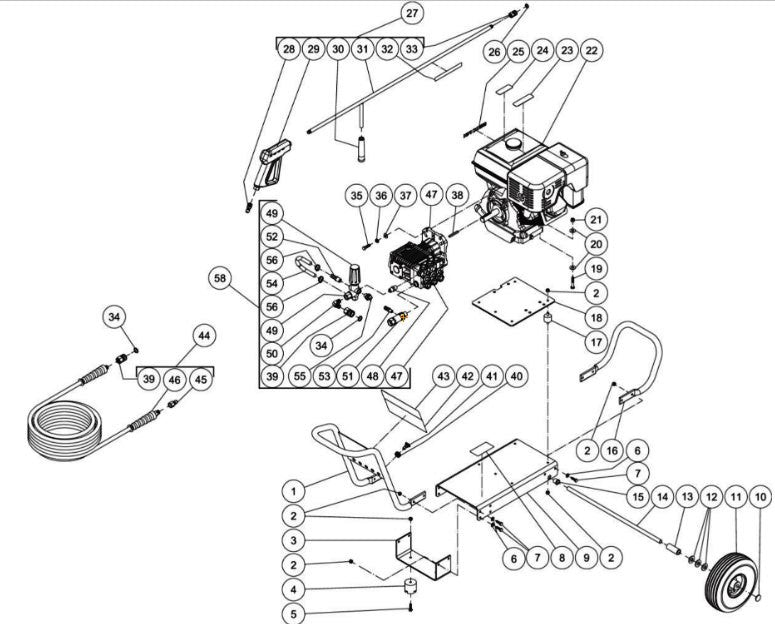

CA-3504-1MHB Frame Assembly Parts by Mi-T-M

CA-3504-1MHB Frame Assembly Parts by Mi-T-M

  • CA-3504-1MHB Frame Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
7-0182 Front Handle Assembly for MiTM Air Compressors by MiTM 70182
$151.98
2
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
3
56-0054 Support Bracket for MiTM Air Compressors by MiTM 560054
$60.90
4
14-0008 Isolator 2" Od X 1.75 for AC2-PR09-30M Air Compressor by Mi-T-M 140008
$11.49
5
27-0068 Bolt for MiTM Air Compressors by MiTM 270068
$4.43
6
28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003
$1.99
9
5-0207 Baseplate for MiTM Air Compressors by MiTM 50207
$146.82
10
33-0018 Cap Hub 5/8" for AC2-PH11-20M Air Compressor by Mi-T-M 330018
$11.82
11
14-0017 Isolator 2" Od X 1.84 for AM2-PR09-30M Air Compressor by Mi-T-M 140017
$11.64
12
28-0008 Washer for MiTM Air Compressors by MiTM 280008
$4.43
13
62-0189 Axle Spacer 2-1/2 For 5/8 Ax for MiTM Air Compressors by MiTM 620189
$5.99
14
20-0748 Axle for MiTM Air Compressors by MiTM 200748
$28.79
15
62-0175 Flanged Sleeve Bushing .625 10 for MiTM Air Compressors by MiTM 620175
$8.93
16
7-0183 Rear Handle for MiTM Air Compressors by MiTM 70183
$113.01
17
14-0097 Vibration Isolator 1-1/4 Dia X 1 Height for MiTM Air Compressors by MiTM 140097
$9.50
18
56-0053 Isolation Plate for MiTM Air Compressors by MiTM 560053
$75.41
22
1-0086 Engine Honda 13Hp Recoil for AC2-PH08-30M Air Compressor by Mi-T-M 10086
$1,902.75
25
34-2215 Decal - Die Cut for MiTM Pressure Washers by MiTM 342215
Call for Price call for price call for price
26
25-0122 O-Ring 3/8 X 9/16 for AC2-PR09-30M Air Compressor by Mi-T-M 250122
$2.99
27
851-0371 Gun/Black Wand Grip W/Qc for AM1-PH65-20M Air Compressor by Mi-T-M 8510371
$196.02
28
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
30
7-0002 Handle Grip For Wand for MiTM Air Compressors by MiTM 70002
$8.67
31
16-0439 Wand-45" W/Handle Chrome for AM1-PH65-20M Air Compressor by Mi-T-M 160439
$44.61
33
17-0001 Qc 1/4F X 1/4 Socket Brass for AC2-PR09-30M Air Compressor by Mi-T-M 170001
$19.94
34
25-0123 O-Ring 1/2 X 11/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250123
$1.99
37
28-0022 Flatwasher for MiTM Air Compressors by MiTM 280022
$5.18
38
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
39
17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004
$16.25
41
18-0028 Nozzle- 0004 for MiTM Air Compressors by MiTM 180028
$10.85
43
34-2150 Decal - Choremaster 2600, 3000 for MiTM Air Compressors by MiTM 342150
$11.39
44
851-0338 Hose 3/8"X50' 4000Psi R1 Gray for AC1-HE15-05M Air Compressor by Mi-T-M 8510338
Call for Price call for price call for price
46
15-0003 Pressure Hose (3000 Psi) for MiTM Air Compressors by MiTM 150003
Call for Price call for price call for price
47
3-0350 Pump-4.0 Gpm 4000 Psi for MiTM Pressure Washers by MiTM 30350
$1,499.52
48
24-0010 Nipple 3/8" Hex Steel for AC1-HE15-05M Air Compressor by Mi-T-M 240010
$7.97
49
8-0608 Unloader for MiTM Pressure Washers by MiTM 80608
$225.81
50
24-0131 Elbow 3/8Mnpt X 3/8Mnpt-Steel for MiTM Pressure Washers by MiTM 240131
$24.15
51
19-0207 Filter 1/2Mx3/4F Garden W/Byp for AS2-PH08-30M Air Compressor by Mi-T-M 190207
$72.32
53
23-0120 Barb 1/4M X 1/2 Hose Brass for AC1-PE02-08M Air Compressor by Mi-T-M 230120
$5.84
57
34-9014 Decal Kit (Inc. 21-22, 25, 45) for MiTM Air Compressors by MiTM 349014
Call for Price call for price call for price
58
851-0375 Pump Ez4040G W/External Bypass (39, 47-56) for MiTM Pressure Washers by MiTM 8510375
$1,650.68
7
27-0067 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270067
$1.99
19
27-0121 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270121
$1.99
20
28-0023 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280023
$1.99
21
30-0159 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300159
$2.85
29
16-0001 Trigger Gun 5000 Psi for AC1-HE02-05M by Mi-T-M 160001
$63.36
35
27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118
$1.99
36
29-0008 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290008
$1.99
40
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
45
17-0006 Qc 3/8F X 3/8 Plug Ss for AC1-HE02-05M by Mi-T-M 170006
$22.62
52
23-0105 Barb 3/8Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230105
$7.58
54
15-0007 Hose *(Two Feet Required) for ABS Air Compressor by Mi-T-M 150007
Call for Price call for price call for price
55
22-0114 Valve-Thermal Relief 3/8M 145F for AC1-HE02-05M1 Air Compressor by Mi-T-M 220114
$20.68
56
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
