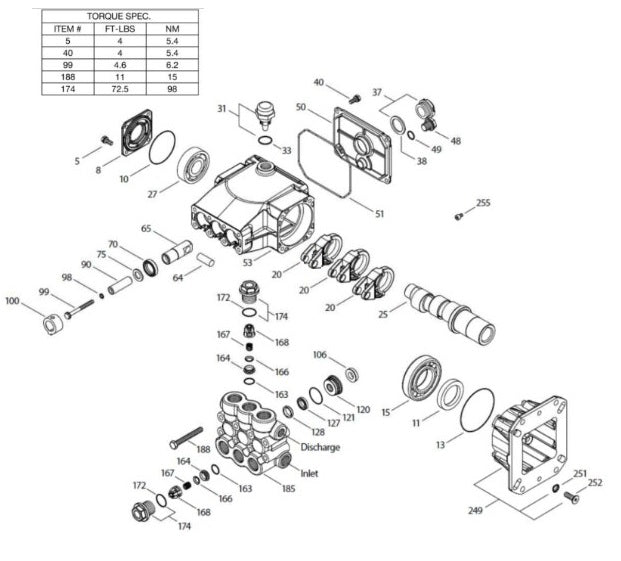

CA-4004-1FHC, CA-4004-1MCH (sn:0-99999999) Pump Assembly Parts by Mi-T-M

CA-4004-1FHC, CA-4004-1MCH (sn:0-99999999) Pump Assembly Parts by Mi-T-M

  • CA-4004-1FHC, CA-4004-1MCH (sn:0-99999999) Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
5
27-1406 Screw - Hhc (M6X16) for MiTM Pressure Washers by MiTM 271406
$7.71
40
27-1406 Screw - Hhc (M6X16) for MiTM Pressure Washers by MiTM 271406
$7.71
8
46-1820 Cover - Bearing for MiTM Pressure Washers by MiTM 461820
$74.45
10
25-0718 O-Ring - Bearing Cover, 70D for MiTM Pressure Washers by MiTM 250718
$30.00
11
26-0429 Seal - Oil, Crankshaft for MiTM Pressure Washers by MiTM 260429
$82.25
13
25-0293 O-Ring , Oil Gauge for AC2-PE05-08M Air Compressor by Mi-T-M 250293
$16.53
15
48-0111 Bering - Ball-Inner for MiTM Pressure Washers by MiTM 480111
$171.72
20
46-1821 Rod - Conncting for MiTM Pressure Washers by MiTM 461821
$128.07
25
46-1822 Crankshaft (10.0 Mm) for MiTM Pressure Washers by MiTM 461822
$1,112.21
27
48-0110 Bearing - Ball, Outer for MiTM Pressure Washers by MiTM 480110
$131.49
31
46-1803 Oil Cap Vented W/O-Ring for MiTM Pressure Washers by MiTM 461803
$66.59
33
25-0199 O-Ring Cap for AC1-PR07-20M Air Compressor by Mi-T-M 250199
$8.76
37
22-0123 Gauge Bubble Oil W/Gasket for AC1-PR07-20M Air Compressor by Mi-T-M 220123
$42.87
38
26-0139 Gasket Flat Flexible for AC1-PR07-20M Air Compressor by Mi-T-M 260139
$14.15
48
39-0050 Plug - Drain (1/4”X19Bsp) for MiTM Pressure Washers by MiTM 390050
$12.75
49
25-0181 O-Ring - Drain Plug, 70D for MiTM Pressure Washers by MiTM 250181
$7.49
50
46-1824 Cover - Rear for MiTM Pressure Washers by MiTM 461824
$195.20
51
25-0723 O-Ring - Rear Cover for MiTM Pressure Washers by MiTM 250723
$41.55
53
46-1825 Crankcase for MiTM Pressure Washers by MiTM 461825
$830.21
64
43-0171 Pin - Crosshead for MiTM Pressure Washers by MiTM 430171
$66.17
65
46-1826 Rod - Plunger for MiTM Pressure Washers by MiTM 461826
$154.11
70
26-0430 Seal - Oil, Crankcase for MiTM Pressure Washers by MiTM 260430
$53.76
75
46-1827 Slinger - Barrier for MiTM Pressure Washers by MiTM 461827
Call for Price call for price call for price
90
46-1828 Plunger (M14X47) for MiTM Pressure Washers by MiTM 461828
Call for Price call for price call for price
98
28-0140 Washer Seal - Plunger Reatier, 90D (See 70-0733) for MiTM Pressure Washers by MiTM 280140
$32.31
99
46-1829 Retainer - Plunger for MiTM Pressure Washers by MiTM 461829
$28.04
100
46-1830 Retainer - Seal for MiTM Pressure Washers by MiTM 461830
$20.39
106
46-0507 Seal - Lps W/S-Spg (See 70-0733) for MiTM Pressure Washers by MiTM 460507
$59.97
120
46-1831 Case - Seal for MiTM Pressure Washers by MiTM 461831
$85.38
121
25-0720 O-Ring - Seal Case, 70D (See 70-0733) for MiTM Pressure Washers by MiTM 250720
$36.00
127
46-1832 V-Packing (See 70-0733) for MiTM Pressure Washers by MiTM 461832
$97.34
128
46-1833 Adapter - Male (See 70-0733) for MiTM Pressure Washers by MiTM 461833
$25.49
163
25-0724 O-Ring - Seat, 85D (See 70-0732) for MiTM Pressure Washers by MiTM 250724
$18.00
164
46-1834 Seat (See 70-0732) for MiTM Pressure Washers by MiTM 461834
$74.94
166
46-1816 Valve (See 70-0732) for MiTM Pressure Washers by MiTM 461816
$55.40
167
46-1817 Spring for MiTM Pressure Washers by MiTM 461817
$20.39
168
46-0312 Retainer - Spring (See 70-0732) for MiTM Pressure Washers by MiTM 460312
$20.39
172
25-0725 O-Ring - Valve Plug, 80D (See 70-0732) for MiTM Pressure Washers by MiTM 250725
$18.00
174
39-0405 Plug - Valve W/O-Ring for MiTM Pressure Washers by MiTM 390405
$88.80
185
46-1835 Head Manifold for MiTM Pressure Washers by MiTM 461835
$1,592.70
188
27-1409 Screw - Hsh (M8X65) for MiTM Pressure Washers by MiTM 271409
$25.49
249
38-0074 Flange - Adapter for MiTM Pressure Washers by MiTM 380074
$265.49
251
29-1020 Lockwaser, Conical (M8) for MiTM Pressure Washers by MiTM 291020
Call for Price call for price call for price
252
27-1408 Screw - Fh (M8X25) for MiTM Pressure Washers by MiTM 271408
$12.75
255
27-1411 Set Screw-M5 X .8P X 8Mm for MiTM Pressure Washers by MiTM 271411
$12.75
-
70-0733 Seal (Inc. 98, 106, 121, 127, 128) for MiTM Pressure Washers by MiTM 700733
$363.99
-
70-0732 Valve (Inc. 163, 164, 166, 168, 172) for MiTM Pressure Washers by MiTM 700732
$257.40
