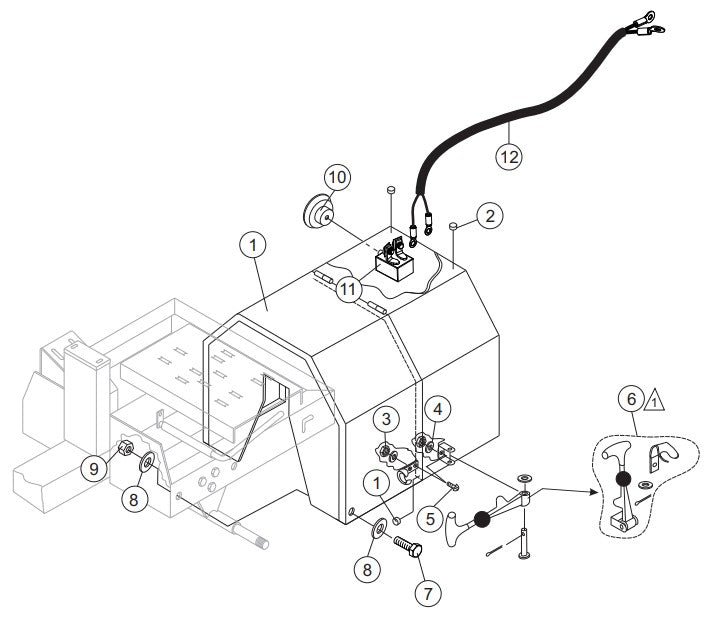

Cabinet Assembly Parts-WM70SH5/WM70PH5, WM70SH8/WM70PH8, WM70SE/WM70PE HONDA GX160/GX240 SERIES GASOLINE ENGINES AND 1.5 HP ELECTRIC MOTOR

Cabinet Assembly Parts-WM70SH5/WM70PH5, WM70SH8/WM70PH8, WM70SE/WM70PE HONDA GX160/GX240 SERIES GASOLINE ENGINES AND 1.5 HP ELECTRIC MOTOR

  • Cabinet Assembly Parts-WM70SH5/WM70PH5, WM70SH8/WM70PH8, WM70SE/WM70PE HONDA GX160/GX240 SERIES GASOLINE ENGINES AND 1.5 HP ELECTRIC MOTOR
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
514964 CABINET, GASOLINE ENGINE W/DECALS by Multiquip
$710.50
1
516585 CABINET, ELECTRIC MOTOR W/DECALS by Multiquip
$859.39
2
490202 RUBBER PROTECTOR | Genuine OEM Multiquip Part
$3.99
3
13287 LOCK NUT 8-32 | Genuine OEM Multiquip Part
$9.09
4
2203 Flat Washer #10 for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
5
1307 SCREW RHMS 8-32 X 1/2" | Genuine OEM Multiquip Part
$4.39
6
491010 LATCH ASSY., COMPLETE | Genuine OEM Multiquip Part
$11.13
7
492375 Hex Head Bolt 3/8"Nc X 1" G5 for WBH-21EFP, WBH21EFP Track Drive Power Buggy Multiquip Whiteman
$2.19
8
492598 Washer 3/8" for WBH-16, WBH-16E, WBH-16F, WBH-16EF Ride On Power Buggy Multiquip Whiteman
$2.19
9
492583 Nut, 3/8" Nc for WBH-16, WBH-16E, WBH-16F, WBH-16EF Ride On Power Buggy Multiquip Whiteman
$2.19
10
29174-001 KNOB-MUSHROOM | Genuine OEM Multiquip Part
$4.39
11
29173-001 SWITCH, PUSH PULL W/O KNOB by Multiquip
$24.55
12
504135C WIRE HARNESS | Genuine OEM Multiquip Part
$19.59
