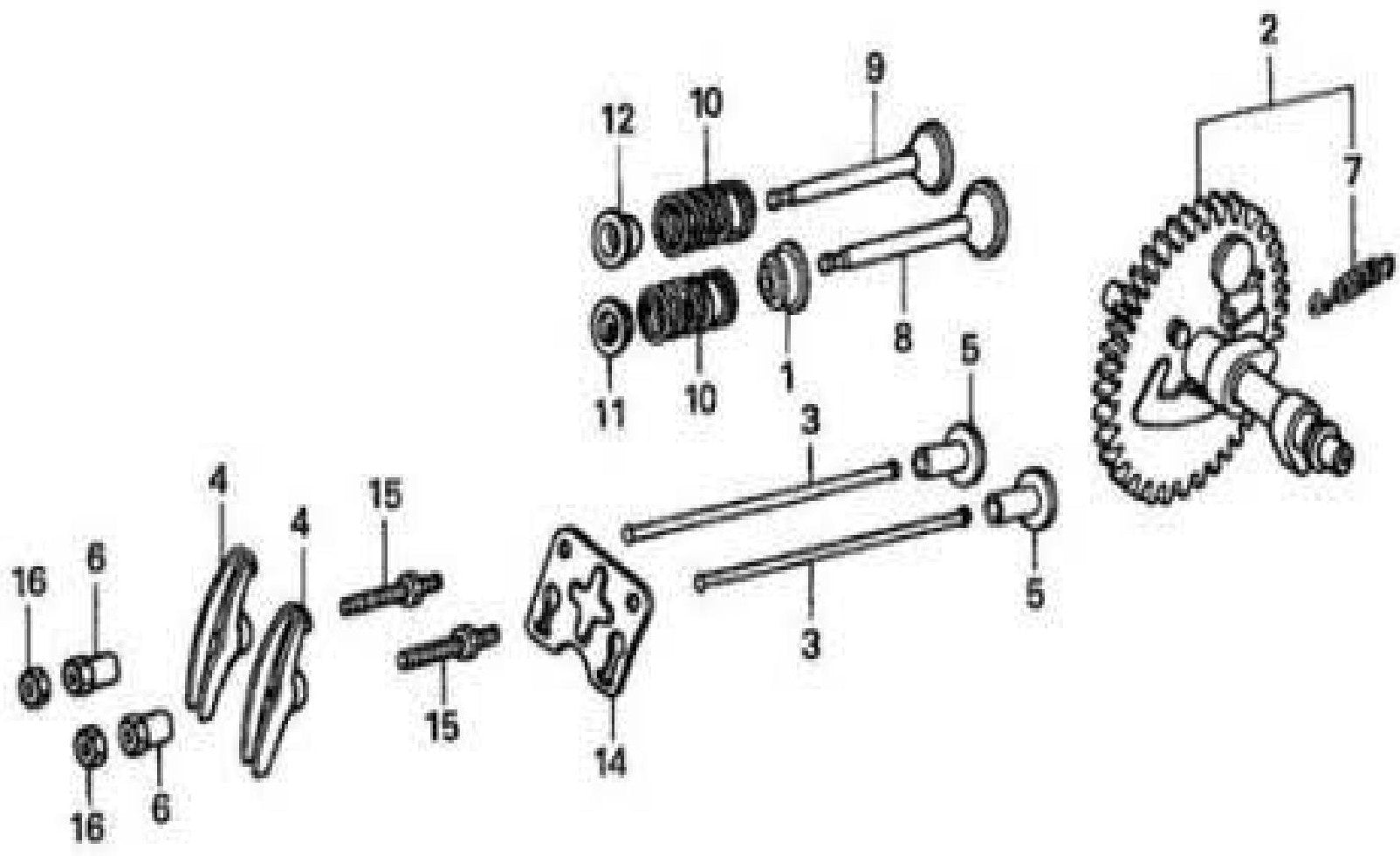

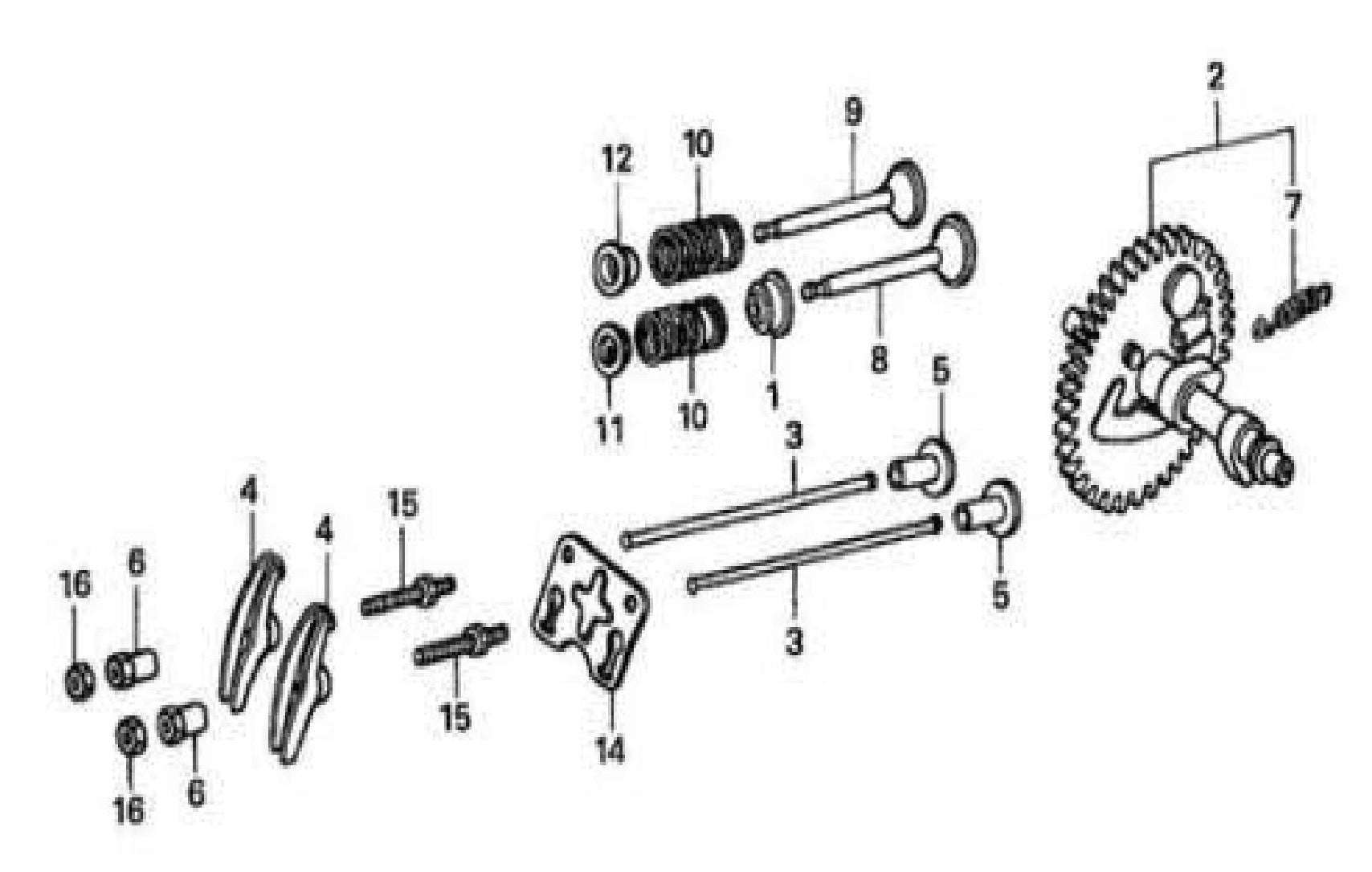

MAC5501G Camshaft Assembly Parts

MAC5501G Camshaft Assembly Parts

  • MAC5501G Camshaft Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
12209-Z4M-801 12209Z4M801 Seal,Valve Stem fits Makita MAC5501G Air Compressor
$11.50
2
14100-Z4M-000 14100Z4M000 Camshaft Assy fits Makita MAC5501G Air Compressor
$54.00
3
14110-Z4M-000 14110Z4M000 Rod Cp,Push fits Makita MAC5501G Air Compressor
$1.99
4
14431-ZE1-000 14431ZE1000 Arm,Valve Rocker fits Makita MAC5501G Air Compressor
$10.35
5
14441-ZE1-010 14441ZE1010 Valve Lifter fits Makita MAC5501G Air Compressor
Call for Price call for price call for price
8
14711-Z4M-000 14711Z4M000 Valve,In fits Makita MAC5501G Air Compressor
$51.75
9
14721-Z4M-000 14721Z4M000 Valve,Ex fits Makita MAC5501G Air Compressor
$70.00
10
14751-ZF1-000 14751ZF1000 Spring,Valve fits Makita MAC5501G Air Compressor
$6.90
11
14771-Z0T-900 14771Z0T900 Retainer,Valve Spring fits Makita MAC5501G Air Compressor
$6.90
12
14771-Z0T-900 14771Z0T900 Retainer,Valve Spring fits Makita MAC5501G Air Compressor
$6.90
14
14791-Z4M-000 14791Z4M000 Plate,Push Rod Guide fits Makita MAC5501G Air Compressor
$6.90
15
90012-ZE0-010 90012ZE0010 Bolt,Pivot,8Mm/Gx160 fits Makita MAC5501G Air Compressor
$12.65
16
90206-ZE1-000 90206ZE1000 Nut,Pibot Adjusting fits Makita MAC5501G Air Compressor
$5.75
6
14451-Z4M-000 14451Z4M000 Pivot,Rocker Arm fits Makita MAC5501G Air Compressor
$2.95
7
14568-ZE1-000 14568ZE1000 Spring,Weight Return fits Makita MAC5501G Air Compressor
$5.75
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
