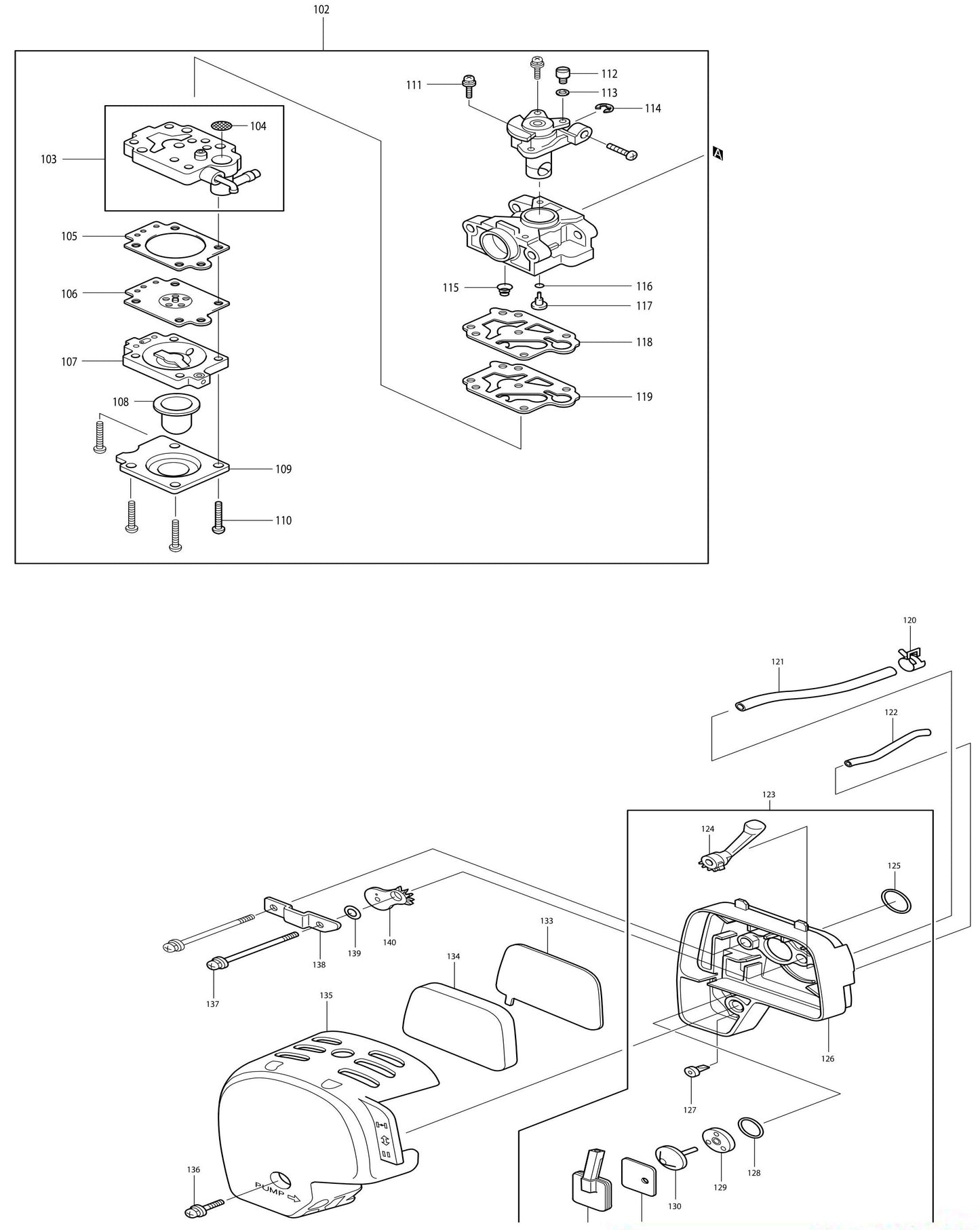

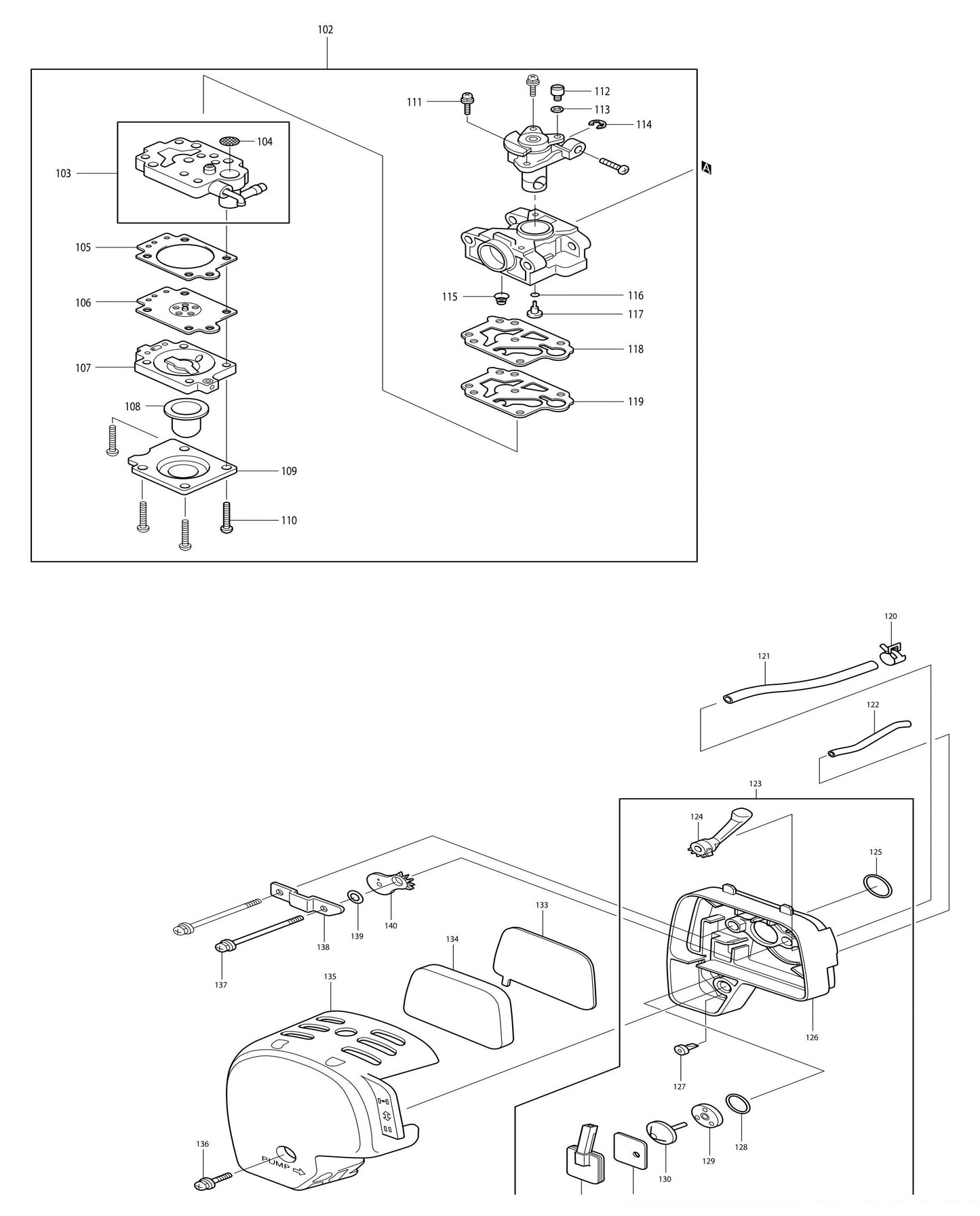

BHX2500CA Carburetor, Cleaner Base Assembly Parts

BHX2500CA Carburetor, Cleaner Base Assembly Parts

Skip to product information
1 of 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
102
1686419 CARBURETOR, BHX2500 BY MAKITA
$179.12
103
5936025010 PUMP BODY ASS'Y, BHX2500 BY MAKITA
$89.86
104
3520106 INLET SCREEN, EM2650LH BY MAKITA
$5.99
104
5016004010 INLET SCREEN, RBC230 BY MAKITA
$7.76
105
4421541 METERING DIAPHRAGM GASKET, EM2650LH BY MAKITA
$6.75
106
1686207 METERING DIAPHRAGM, EM2650LH BY MAKITA
$29.95
106
5266009010 METERING DIAPHRAGM ASS'Y, BHX2500 BY MAKITA
$37.49
107
1404388 AIR PURGE BODY, EM2650LH BY MAKITA
$24.21
108
4243147 PRIMER PUMP, EM2650LH BY MAKITA
$10.80
109
3462700 PRIMER PUMP COVER, EM2650LH BY MAKITA
$10.80
109
5236046050 PRIMER PUMP COVER, EM4251 BY MAKITA
$10.56
110
2665824 TAPPING SCREW 3X24, EM2650LH BY MAKITA
$5.99
111
2665816 PAN HEAD SCREW M3X8, EM2650LH BY MAKITA
$3.99
112
3259226 SWIVEL, EM2650LH BY MAKITA
$10.80
113
4131409 WASHER, EM2650LH BY MAKITA
$5.99
114
2579641 STOP RING E3, EM2650LH BY MAKITA
$5.99
115
2341836 CONICAL COMPRESSION SPRING 59, EM2650LH BY MAKITA
$6.75
116
2135388 O RING 2, EM2650LH BY MAKITA
$5.99
116
5246001010 O RING, RBC230 BY MAKITA
$7.76
117
5256065010 JET, BHX2500 BY MAKITA
$20.95
117
5196002020 JET, RBC201 BY MAKITA
$17.25
118
4421559 PUMP GASKET, EM2650LH BY MAKITA
$6.75
118
5926002040 PUMP GASKET, EM4251 BY MAKITA
$8.38
119
WJ00009599 PUMP DIAPHRAGM, EB7650 BY MAKITA
$10.35
119
1685756 PUMP DIAPHRAGM, EM2650LH BY MAKITA
$7.76
120
3459181 HOSE CLAMP, EM2650LH BY MAKITA
$3.99
121
4220410 BREATHER PIPE, EM4251 BY MAKITA
$7.76
121
5921500900 BREATHER PIPE, EM4251 BY MAKITA
$7.76
122
4220703 PIPE, BHX2500 BY MAKITA
$7.76
122
5933502100 PIPE, BHX2500 BY MAKITA
$7.76
123
1254680 CLEANER PLATE ASS'Y, BHX2500 BY MAKITA
$41.22
123
5933001000 CLEANER PLATE ASSY, EM4250 BY MAKITA
$36.00
124
4519255 CHOKE LEVER, BHX2500 BY MAKITA
$3.99
125
2135401 O RING 15, EM2650LH BY MAKITA
$3.99
126
1408146 AIR CLEANER PLATE CPL, EM4250 BY MAKITA
$13.45
126
5933005000 AIR CLEANER PLATE CPL, EM4250 BY MAKITA
$12.54
127
4243163 CHECK VALVE, EM2650LH BY MAKITA
$5.99
128
2135396 O RING 14, BHX2500 BY MAKITA
$3.99
128
0240139970 O RING P14, EM4251 BY MAKITA
$5.99
129
4519247 CHECK VALVE PLATE, EM4251 BY MAKITA
$5.99
129
5923502500 CHECK VALVE PLATE, EM4251 BY MAKITA
$5.99
130
4243155 CHECK VALVE, EM4251 BY MAKITA
$7.76
131
1685772 SEPARATOR GASKET, EM4251 BY MAKITA
$3.99
131
5923503500 SEPARATOR GASKET, EM4251 BY MAKITA
$3.99
132
1685764 SEPARATOR PLATE, BHX2500 BY MAKITA
$11.80
132
5933501600 SEPARATOR PLATE,MS2514 BY MAKITA
$10.93
133
4431405 AIR CLEANER ELEMENT,EM4250 BY MAKITA
$5.99
133
5933500900 AIR CLEANER ELEMENT,EM4250 BY MAKITA
$7.76
134
4431413 AIR CLEANER ELEMENT,EM4250 BY MAKITA
$7.76
134
5933501200 AIR CLEANER ELEMENT,EM4250 BY MAKITA
$7.76
135
4505614 AIR CLEANER COVER,EM4250 BY MAKITA
$7.76
135
5933500800 AIR CLEANER COVER,EM4250 BY MAKITA
$7.76
136
2668092 P.H SCREW M5X14 W/WR, EM4250 BY MAKITA
$3.99
136
0140059480 SCREW M5X14, BHX2500 BY MAKITA
$5.99
137
2651885 PAN HEAD SCREW M5X68,EM4251 BY MAKITA
$5.99
137
5923503100 SCREW M5X68(W,SW SUS),EM4251 BY MAKITA
$5.99
138
3459199 PLATE, EM4251 BY MAKITA
$5.99
138
5923502600 PLATE, EM4251 BY MAKITA
$5.99
139
4233762 GASKET, RBC230 BY MAKITA
$3.99
139
0213069990 GASKET, RBC230 BY MAKITA
Call for Price call for price call for price
140
4505606 CHOKE PLATE, EM4251 BY MAKITA
$5.99
140
5923502301 CHOKE PLATE, EM4251 BY MAKITA
$5.99
