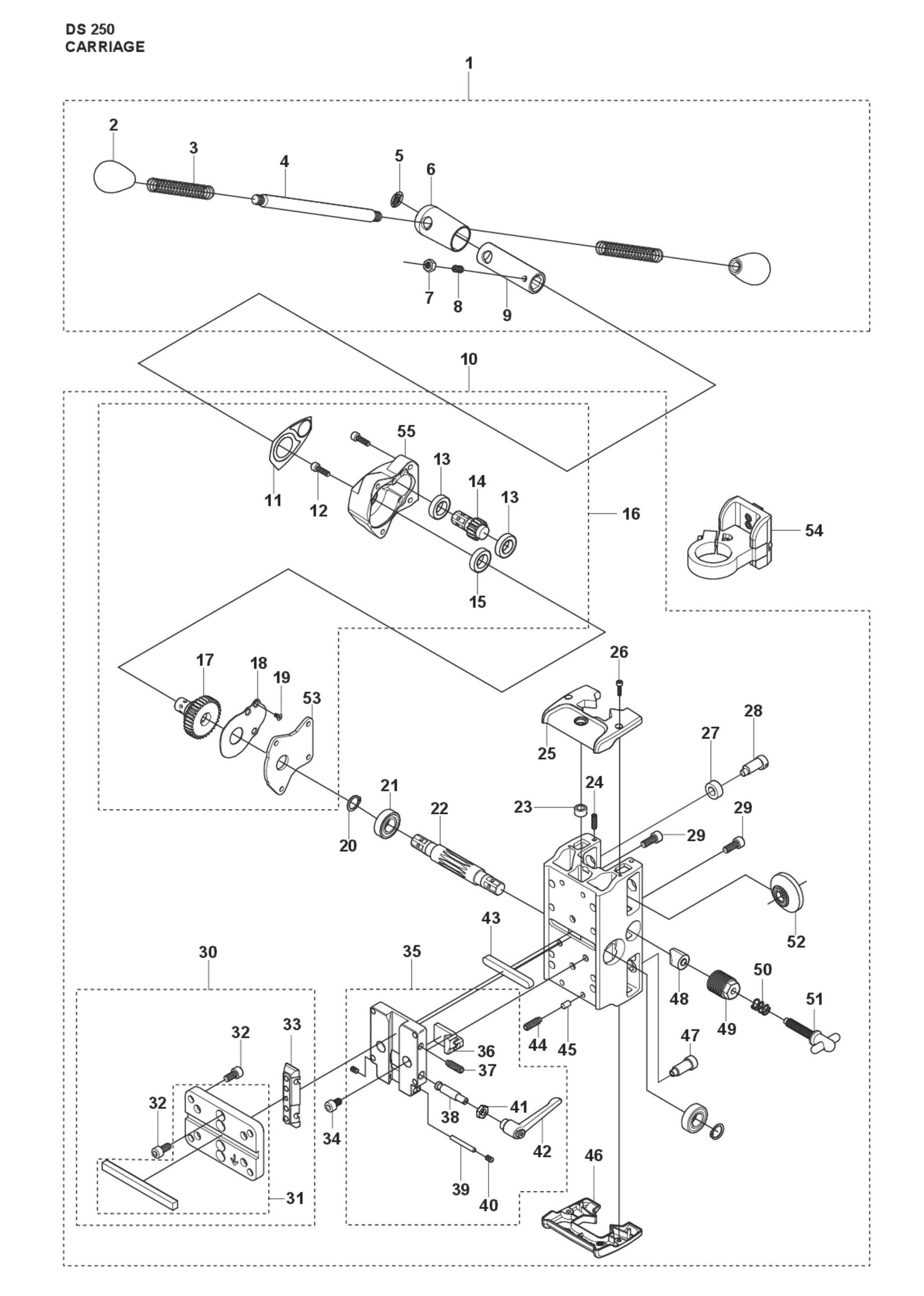

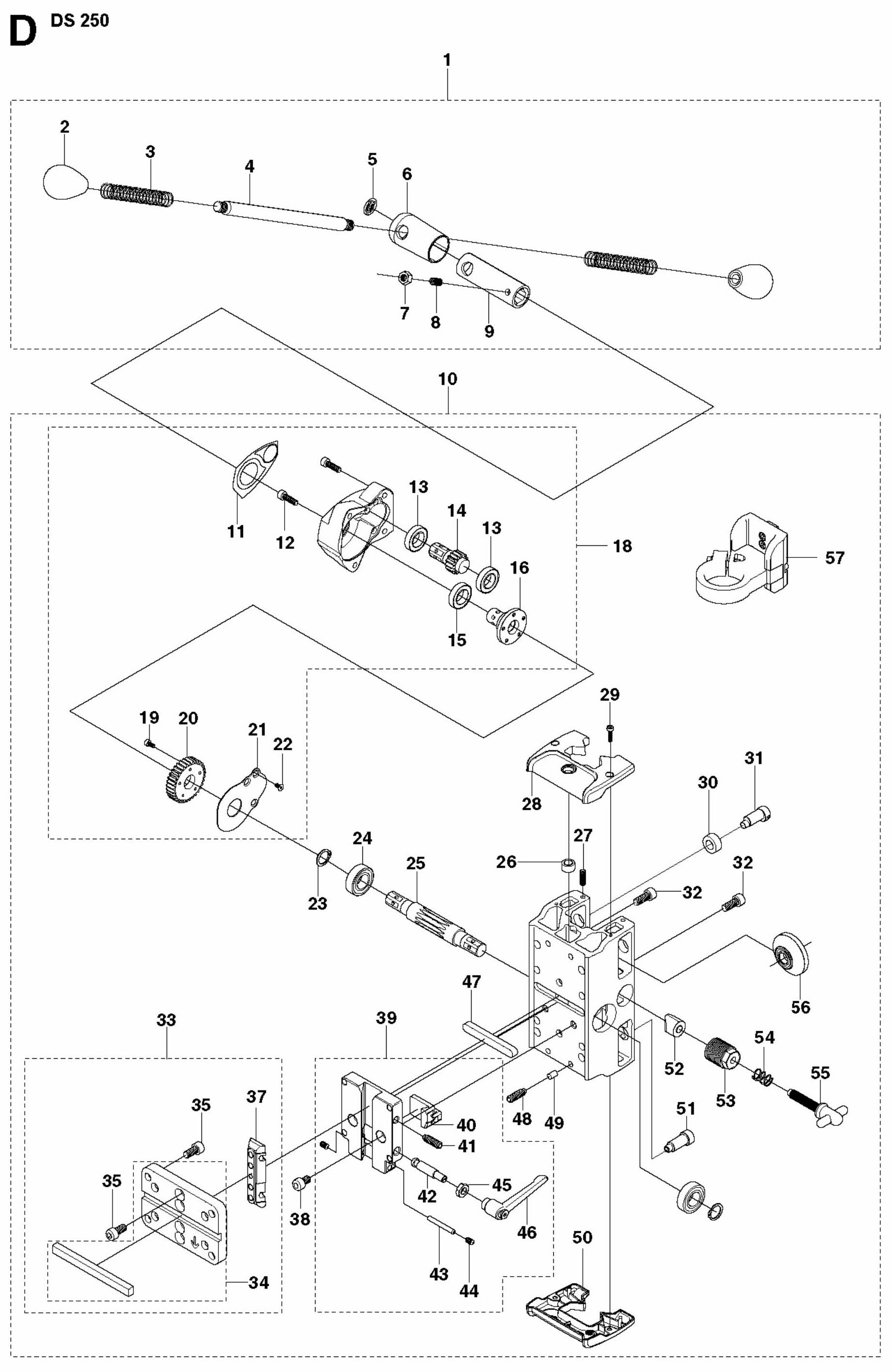

DS 250 Carriage Assembly Parts

DS 250 Carriage Assembly Parts

  • DS 250 Carriage Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
541404101 Travel Lever Assembly for DS 150 Core Drill Stand by Husqvarna
$90.20
2
531140672 KNOB FOR CORE DRILL BY HUSQVARNA
$30.66
3
541405163 FEEDING CRANK SHAFT SPRING FOR CORE DRILL BY HUSQVARNA
$5.80
4
541404905 FEEDING CRANK SHAFT FOR CORE DRILL BY HUSQVARNA
$12.78
5
541405047 CAP DECAL FOR CORE DRILL BY HUSQVARNA
$5.80
6
541405137 FEEDING HANDLE PLASTIC COVER FOR CORE DRILL BY HUSQVARNA
$12.78
7
732211801 Lock Nut for PG280 Floor Grinder and Polisher by Husqvarna
$4.99
8
541404133 M8X1.25 BALL PLUNGER FOR CORE DRILL BY HUSQVARNA
$2.90
9
541404044 25MM TUBE HUB FORTRAVEL LEVER FOR CORE DRILL BY HUSQVARNA
$20.84
11
541404935 GEAR HOUSING DECAL FOR CORE DRILL BY HUSQVARNA
$2.90
13
541404910 17X30X7MM BEARING (6903-2NSE) FOR CORE DRILL BY HUSQVARNA
$16.83
15
522805601 BALL BEARING FOR CORE DRILL BY HUSQVARNA
$32.98
10
579243001 KIT, CARRIAGE FOR CORE DRILL BY HUSQVARNA
$636.60
12
725537201 M6 X 1.0 X 25MM SHCS FOR POWER CUTTERS BY HUSQVARNA
$3.91
14
541404911 1.5 MOD 22.5 P.D. 15T 20D GEAR FOR CORE DRILL BY HUSQVARNA
$52.05
16
541404913 INPUT SHAFT EXTENSION PLATE FOR CORE DRILL BY HUSQVARNA
$58.11
18
579242901 GEAR WHEEL KIT FOR CORE DRILL BY HUSQVARNA
$195.47
19
725528701 Screw Ihscm for PG680RC Floor Grinder and Polisher by Husqvarna
$4.68
20
541404912 33 TOOTH SPROCKET FOR CORE DRILL BY HUSQVARNA
$79.02
21
541404928 GEAR HOUSING COVER PLATE FOR CORE DRILL BY HUSQVARNA
$2.90
22
725628701 Screw for DS 250 SINGLE SPEED Core Drill Stand by Husqvarna
$1.40
23
735311900 Circlip for PG450 Floor Grinder and Polisher by Husqvarna
$7.02
24
738210304 BALL BEARING FOR POWER CUTTERS BY HUSQVARNA
$80.64
25
541404806 Carriage for DS 250 SINGLE SPEED Core Drill Stand by Husqvarna
Call for Price call for price call for price
26
541405036 LEVEL BUBBLE FOR TILE AND MASONRY SAW BY HUSQVARNA
$6.44
27
728737001 M6 X 20 SOCKET HEAD SET SCREW FOR CORE DRILL BY HUSQVARNA
$2.95
28
541404800 CARRIAGE TOP PLASTIC CAP FOR CORE DRILL BY HUSQVARNA
$2.90
29
725529301 Screw Ihscm for PG400 Floor Grinder and Polisher by Husqvarna
$7.02
30
541404803 ECCENTRIC BUSHING FOR CORE DRILL BY HUSQVARNA
$11.61
31
541404805 ECCENTRIC SHAFT FOR CORE DRILL BY HUSQVARNA
$110.00
32
725545101 Screw Ihscm for Power Trowel by Husqvarna
$45.60
33
575848301 Motor Bracket for DS 250 and DMS 240 for Core Drills by Husqvarna
$112.31
34
590494701 Plate for DS 250 SINGLE SPEED Core Drill Stand by Husqvarna
$108.72
35
725544901 M8 X 1.25 X 16MM SHCS FOR CORE DRILL BY HUSQVARNA
$10.56
37
525540701 QA DOVETAIL BRACKET FOR CORE DRILL BY HUSQVARNA
$104.22
38
725544701 M8 X 1.25 X 12MM FOR CORE DRILL BY HUSQVARNA
$7.02
39
577950601 Bracket for DS 250 Core Drill Stand by Husqvarna
$409.76
40
577836201 LOCK FIXATION FOR CORE DRILL BY HUSQVARNA
$128.50
41
728745506 Screw for DS 250 Core Drill Stand by Husqvarna
$3.84
42
577836101 LOCKING BOLT FOR CORE DRILL BY HUSQVARNA
$28.13
43
510202701 DOWEL PIN, D4.8XL40 HARDENED FOR CORE DRILL BY HUSQVARNA
$4.36
44
728836401 M6 X 1.0 X 10MM SOCKET HEAD SS FOR CORE DRILL BY HUSQVARNA
$7.03
45
731431801 Hexagon Thin Nut for Power Trowel by Husqvarna
$3.99
46
543850216 Indexable Knob M8 for DS 250 Core Drill Stand by Husqvarna
$15.26
47
541404031 KEY FOR CORE DRILL BY HUSQVARNA
$8.71
48
728645301 M8 X 25 SH HALF DOG SS FOR CORE DRILL BY HUSQVARNA
$2.81
49
541404032 GUIDE CYLINDER FOR CORE DRILL BY HUSQVARNA
$10.14
50
541404862 CARRIAGE BOTTOM PLASTIC CAP FOR CORE DRILL BY HUSQVARNA
$5.80
51
541404804 STRAIGHT SHAFT FOR CORE DRILL BY HUSQVARNA
$8.70
52
579270101 BRAKE KIT FOR CORE DRILL BY HUSQVARNA
$21.80
53
541404864 Friction Brake Cup for DS 150 Core Drill Stand by Husqvarna
$15.26
54
541405043 FEEDING CRANK - RELEASE SPRING FOR CORE DRILL BY HUSQVARNA
$2.90
55
541404816 BRAKE KNOB FOR CORE DRILL BY HUSQVARNA
$26.90
56
541404896 NYLON ROLLER FOR CORE DRILL BY HUSQVARNA
$44.16
57
581257101 ADAPTER RING ASSY FOR CORE DRILL BY HUSQVARNA
$159.86
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
