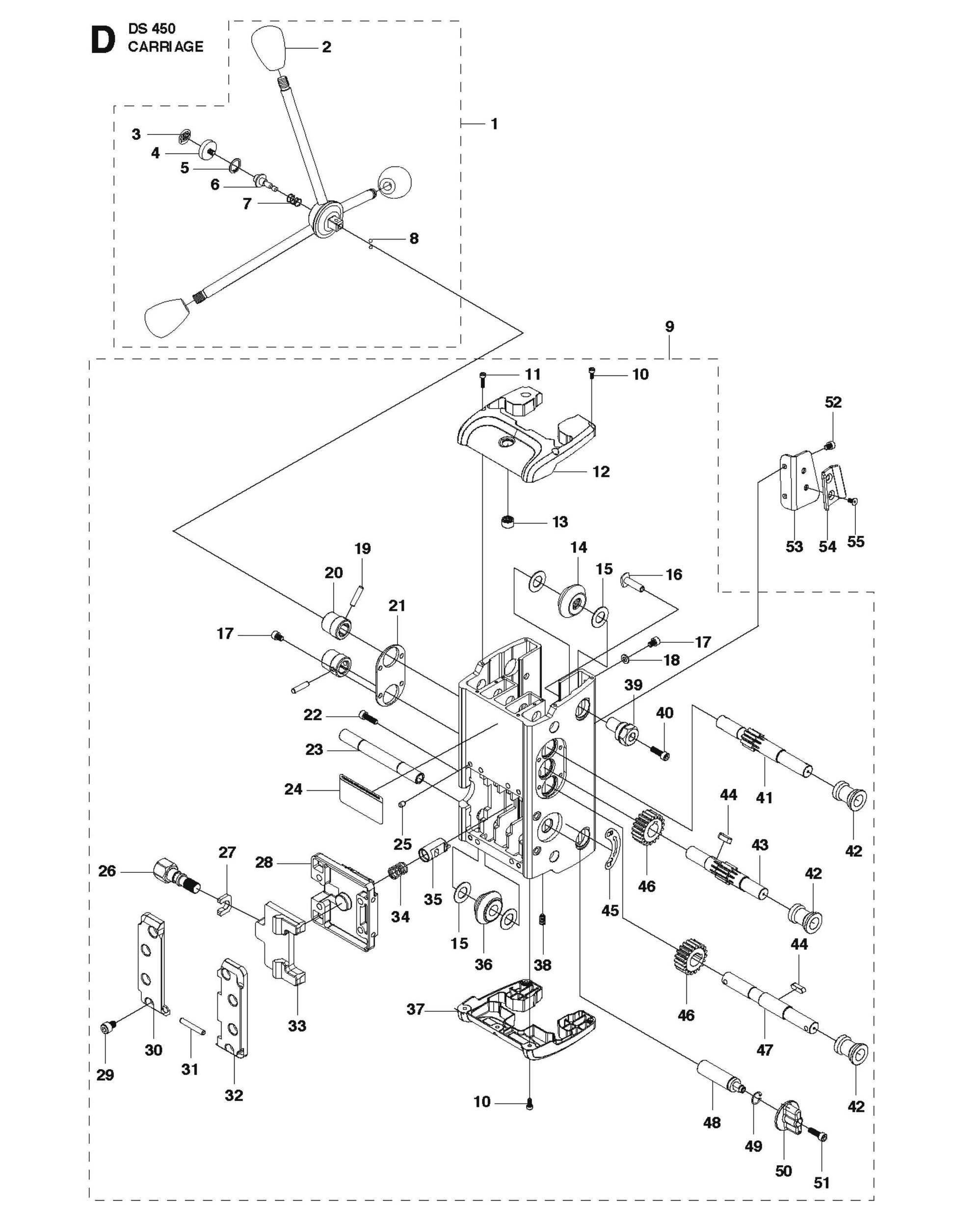

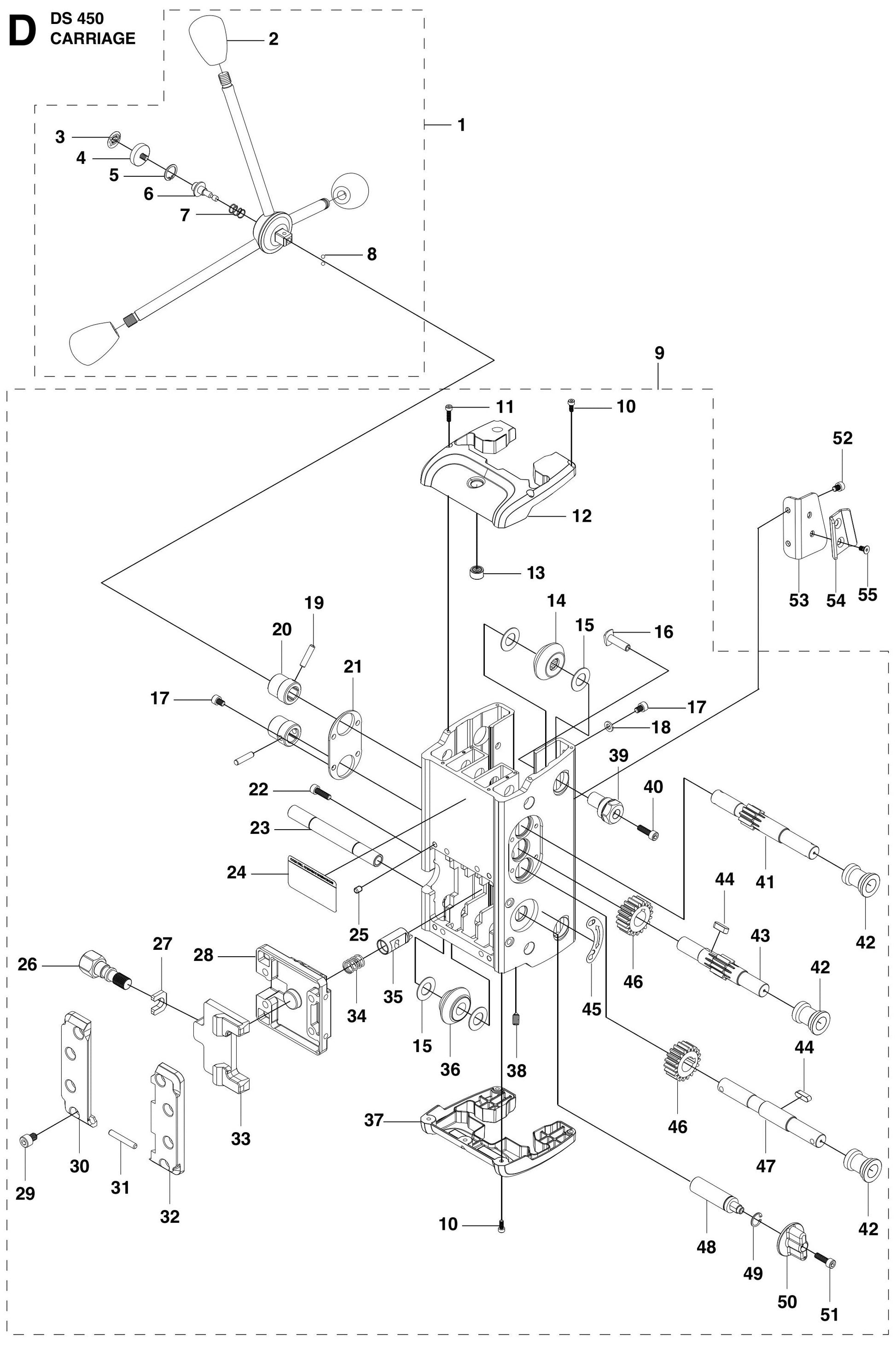

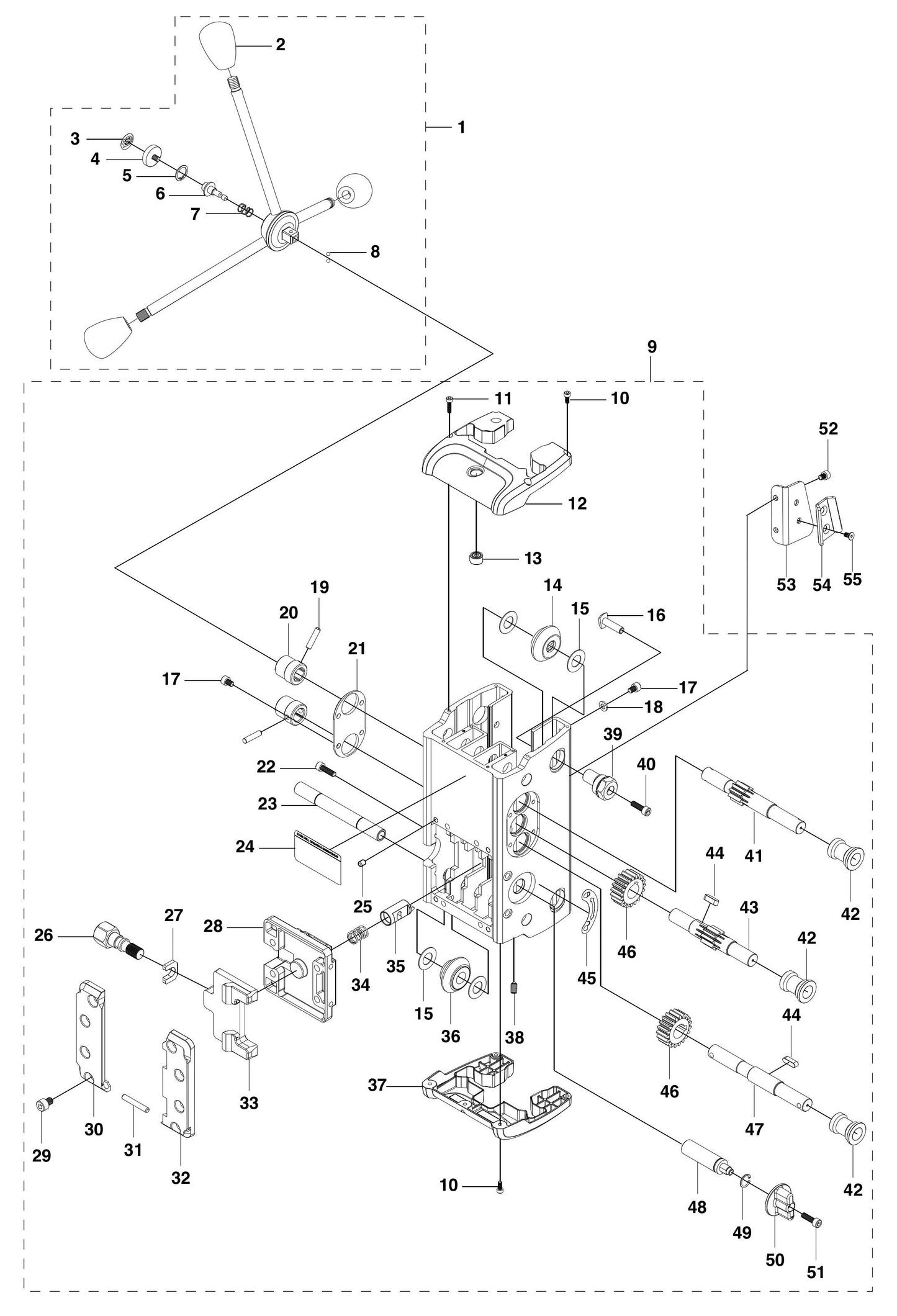

DS 450 Carriage Assembly Parts

DS 450 Carriage Assembly Parts

  • DS 450 Carriage Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
541405039 3-SPOKE FEED HANDLE DS 450 FOR CORE DRILL BY HUSQVARNA
$162.90
2
531140672 KNOB FOR CORE DRILL BY HUSQVARNA
$30.66
3
541405047 CAP DECAL FOR CORE DRILL BY HUSQVARNA
$5.80
4
541405041 FEEDING CRANK - RELEASE BUTTON FOR CORE DRILL BY HUSQVARNA
$5.75
5
735312010 CIRCLIP, SGH FOR POWER CUTTERS BY HUSQVARNA
$4.89
6
541405042 FEEDING CRANK - RELEASE SHAFT FOR CORE DRILL BY HUSQVARNA
$20.04
7
541405043 FEEDING CRANK - RELEASE SPRING FOR CORE DRILL BY HUSQVARNA
$2.90
8
738611403 FEEDING CRANK RELEASE BALL 4MM FOR CORE DRILL BY HUSQVARNA
$6.67
10
725528901 M4 X 0.7 X 10MM SHCS FOR CORE DRILL BY HUSQVARNA
$4.52
11
725529301 Screw Ihscm for PG400 Floor Grinder and Polisher by Husqvarna
$7.02
12
541405020 CARRIAGE GUARD - UPPER FOR CORE DRILL BY HUSQVARNA
$8.70
13
541405036 LEVEL BUBBLE FOR TILE AND MASONRY SAW BY HUSQVARNA
$6.44
14
579610301 ROLLER ASSY FOR CORE DRILL BY HUSQVARNA
$55.67
15
543045039 FASTENER FOR CORE DRILL BY HUSQVARNA
$5.80
16
541405019 ECCENTRIC ROLLER MOUNT FOR CORE DRILL BY HUSQVARNA
$11.61
17
725536201 Screw Ihscm for PG680RC Floor Grinder and Polisher by Husqvarna
$7.02
52
725536201 Screw Ihscm for PG680RC Floor Grinder and Polisher by Husqvarna
$7.02
18
734115201 WASHER for FS309 Walk Behind Floor Saw Husqvarna Products
$3.95
19
720182851 PARELLEL PIN 6 X 26 FOR FASTENERS BY HUSQVARNA
$2.49
20
504908309 SOCKET FOR CORE DRILL BY HUSQVARNA
$127.48
21
541405010 HUSQVARNA AUTO FEED ADAPTER FOR CORE DRILL BY HUSQVARNA
$20.61
23
541405003 FIXED ROLLER SHAFT FOR CORE DRILL BY HUSQVARNA
$12.75
24
541404098 DRILL OPERATING INSTRCTN DECAL FOR CORE DRILL BY HUSQVARNA
$2.90
25
720134751 PARALLEL PIN, 6 X 8 FOR FASTENERS BY HUSQVARNA
$1.33
26
541405006 HUSQVARNA QUICK ATTACH - BOLT FOR CORE DRILL BY HUSQVARNA
$28.13
27
541405027 HUSQ QUICK ATT - BOLT RETAINER FOR CORE DRILL BY HUSQVARNA
$16.83
28
541405022 HUSQVARNA QUICK ATTACH - MOUNT FOR CORE DRILL BY HUSQVARNA
$73.83
29
725544501 Screw Ihscm for PG530 Floor Grinder and Polisher by Husqvarna
$9.38
30
541405005 HUSQ QUICK ATTACH - PLATE (RT) FOR CORE DRILL BY HUSQVARNA
$73.35
31
720136151 6MM X 40 MM HARDENED DOWEL PIN FOR CORE DRILL BY HUSQVARNA
$2.81
32
541405004 HUSQ QUICK ATTACH - PLATE (LT) FOR CORE DRILL BY HUSQVARNA
$64.65
34
541405002 12.7 X 20.6MM COMP SPRING, Z/P FOR CORE DRILL BY HUSQVARNA
$7.26
35
578128601 CARRIAGE BRAKE SLIDER FOR CORE DRILL BY HUSQVARNA
$33.90
36
541405030 ROLLER FOR CORE DRILL BY HUSQVARNA
$21.78
37
541405021 CARRIAGE GUARD - LOWER FOR CORE DRILL BY HUSQVARNA
$8.70
38
728728901 SCREW, IHSETM M4X10 STEEL ZPB FOR CORE DRILL BY HUSQVARNA
$4.99
39
541405023 ECCENTRIC ROLLER SHAFT FOR CORE DRILL BY HUSQVARNA
$25.40
40
725537001 Screw Ihscm for Husqvarna CG200 Scarifier
$10.56
41
541405017 Shaft for DS 450 Core Drill Stand by Husqvarna
$18.96
42
541405008 NEEDLE BEARING MOUNT FOR CORE DRILL BY HUSQVARNA
$19.38
43
579612102 Shaft for DS 450 Core Drill Stand by Husqvarna
Call for Price call for price call for price
44
541405001 Key for DS 450 Core Drill Stand by Husqvarna
Call for Price call for price call for price
45
578128501 DECAL, CARRIAGE BRAKE FOR CORE DRILL BY HUSQVARNA
$4.95
46
541405018 Gear for DS 450 Core Drill Stand by Husqvarna
$34.92
47
579612101 Shaft for DS 450 Core Drill Stand by Husqvarna
Call for Price call for price call for price
48
579610901 SHAFT ASSY FOR CORE DRILL BY HUSQVARNA
$42.69
49
735312000 CIRCLIP SGA 18 X 1.2 PHOS FOR FASTENERS BY HUSQVARNA
$4.89
50
541405035 KNOB: CARRIAGE BRAKE KNOB FOR CORE DRILL BY HUSQVARNA
$5.80
51
725532701 Screw Ihscm (Electric Version) for Husqvarna CG200 Scarifier
$7.02
53
541405115 SWITCH BOX BRACKET SUB ASSY FOR CORE DRILL BY HUSQVARNA
$11.58
54
541404041 DOVE TAIL BRACKET FOR CORE DRILL BY HUSQVARNA
$7.26
55
725632501 HSCHS, M5 X 10 8.8 Z/P FOR FASTENERS BY HUSQVARNA
$4.89
22
725537201 M6 X 1.0 X 25MM SHCS FOR POWER CUTTERS BY HUSQVARNA
$3.91
9
Call for Price call for price call for price
33
Call for Price call for price call for price
