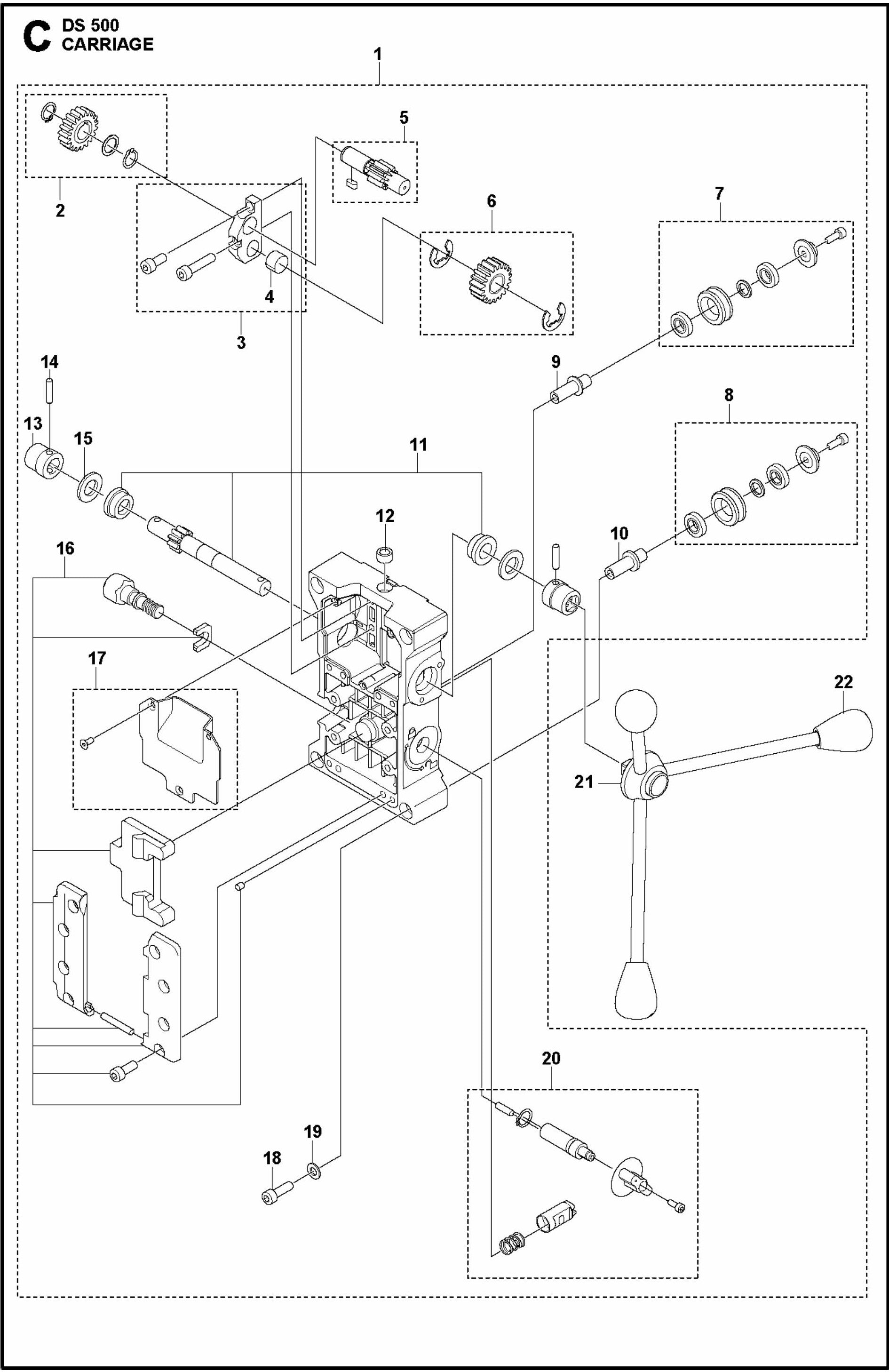

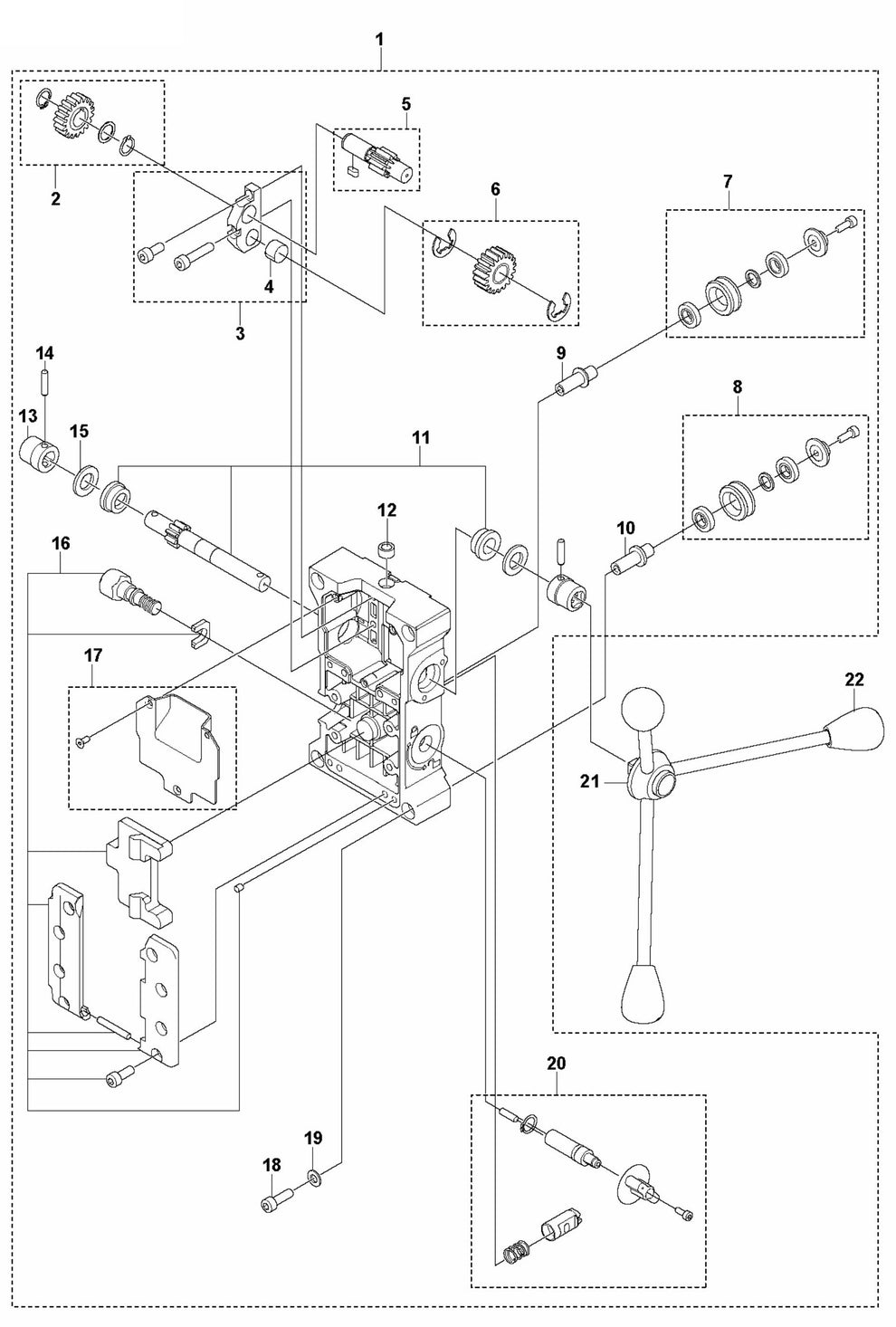

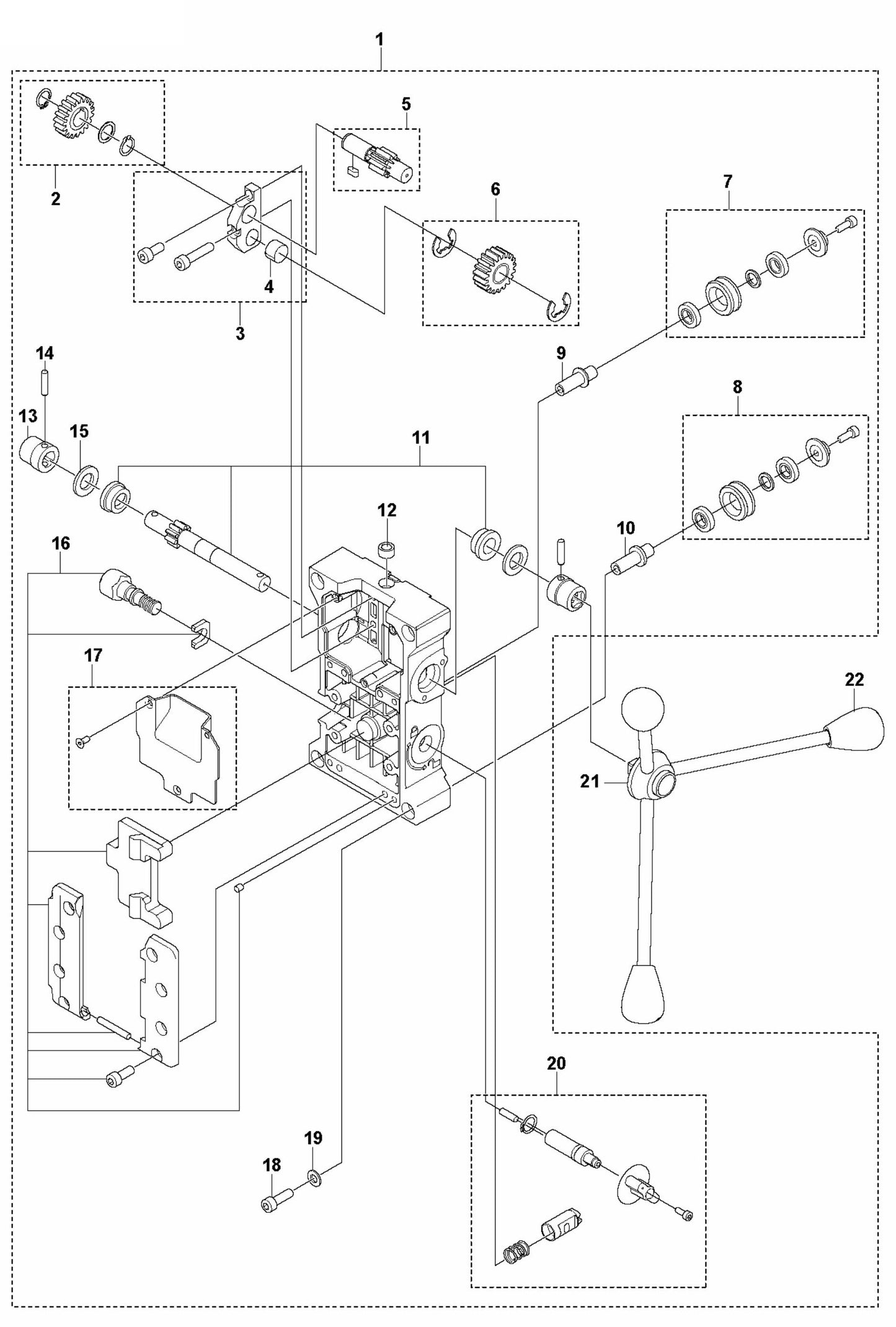

DS 500 Carriage Assembly Parts

DS 500 Carriage Assembly Parts

  • DS 500 Carriage Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
597621601 Carriage for DS 500 Core Drill Stand by Husqvarna
$1,100.40
2
597614501 Gear Wheel Kit for DS 500 Core Drill Stand by Husqvarna
$53.64
3
597614701 Bracket for DS 500 Core Drill Stand by Husqvarna
$123.60
4
582088101 Bearing for DS 500 Core Drill Stand by Husqvarna
$14.40
5
597614801 Gear Wheel Shaft for DS 500 Core Drill Stand by Husqvarna
$103.68
6
597615001 Gear Wheel Kit for DS 500 Core Drill Stand by Husqvarna
$73.92
9
582087201 Shaft for DS 500 Core Drill Stand by Husqvarna
$36.36
10
582087001 Shaft for DS 500 Core Drill Stand by Husqvarna
Call for Price call for price call for price
11
597615401 Gear Wheel Shaft for DS 500 Core Drill Stand by Husqvarna
$158.40
12
541405036 LEVEL BUBBLE FOR TILE AND MASONRY SAW BY HUSQVARNA
$6.44
13
504908309 SOCKET FOR CORE DRILL BY HUSQVARNA
$127.48
14
720182851 PARELLEL PIN 6 X 26 FOR FASTENERS BY HUSQVARNA
$2.49
15
734118601 Washer for PG680 Floor Grinder and Polisher by Husqvarna
$6.74
16
597615601 Locking Plate for DS 500 Core Drill Stand by Husqvarna
$355.20
17
597615701 Cover Kit for DS 500 Core Drill Stand by Husqvarna
$55.08
18
593570601 Screw for DS 500 Core Drill Stand by Husqvarna
$6.10
19
734116301 Washer for PG830S Floor Grinder and Polisher by Husqvarna
$4.99
20
597615801 Brake for DS 500 Core Drill Stand by Husqvarna
$138.00
21
541405039 3-SPOKE FEED HANDLE DS 450 FOR CORE DRILL BY HUSQVARNA
$162.90
22
531140672 KNOB FOR CORE DRILL BY HUSQVARNA
$30.66
7
Call for Price call for price call for price
8
Call for Price call for price call for price
