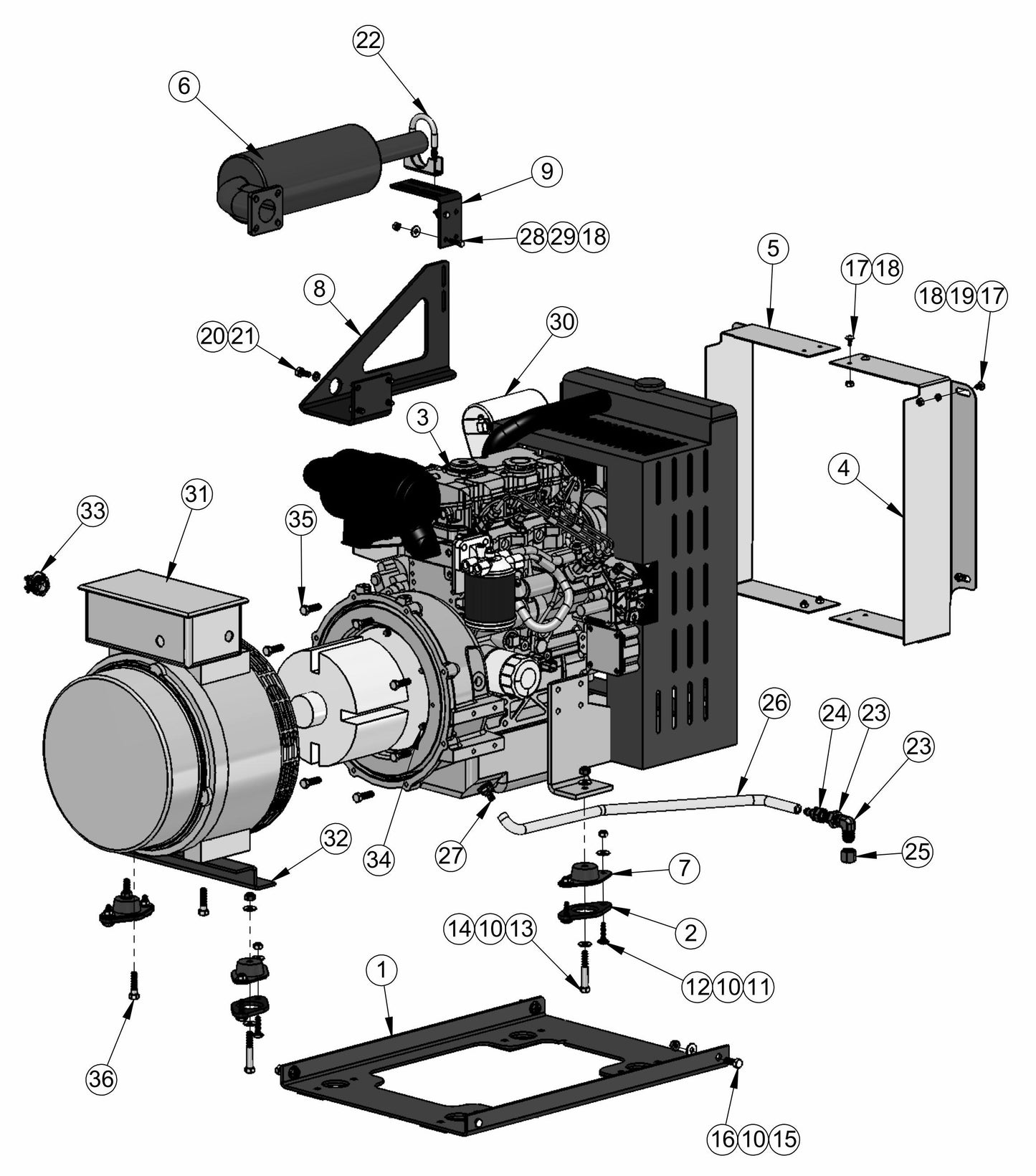

CAT Assembly Parts for V-Series Night-Light Pro CE (0001PROV08CE TO 9999PROV11CE) by Allmand

CAT Assembly Parts for V-Series Night-Light Pro CE (0001PROV08CE TO 9999PROV11CE) by Allmand

  • CAT Assembly Parts for V-Series Night-Light Pro CE (0001PROV08CE TO 9999PROV11CE) by Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
100699P Weld, Engine Plate for Night-Lite Pro V-Series Ce Light Towers by Allmand
$418.82
2
100152P Engine Mount Spacer for Night-Lite Pro V-Series Ce Light Towers by Allmand
$70.64
3
352236 Cat 3011C 8 Kw Hh-249 for Night-Lite Pro V-Series Ce Light Towers by Allmand
$8,513.35
4
100702P Radiator Shroud for Night-Lite Pro V-Series Ce Light Towers by Allmand
$221.60
5
100700P Radiator Shroud for Night-Lite Pro V-Series Ce Light Towers by Allmand
$221.60
6
101082 Nett Muffler for Night-Lite Pro V-Series Ce Light Towers by Allmand
$416.18
7
650259 Rubber Eng Mt - 120 Lb for Night-Lite Pro V-Series Ce Light Towers by Allmand
$60.49
8
100705P Cat Muffler Bkt for Night-Lite Pro V-Series Ce Light Towers by Allmand
$264.95
9
100706P Muffler Bracket for Night-Lite Pro V-Series Ce Light Towers by Allmand
$198.97
10
047010 5/16 Flat Washer for Night-Lite Pro V-Series Ce Light Towers by Allmand
$2.99
11
044039 5/16 - 18 Lock Nut for Night-Lite Pro V-Series Ce Light Towers by Allmand
Call for Price call for price call for price
12
053020 5/16-18 X 1 Carr Bolt for Night-Lite Pro V-Series Ce Light Towers by Allmand
$2.99
13
046134 3/8-16 X 2 1/2 Gr 8 Hex Bolt for Night-Lite Pro V-Series Ce Light Towers by Allmand
$2.99
14
044038 3/8-16 Nylock Nut Pl for Night-Lite Pro V-Series Ce Light Towers by Allmand
$2.99
15
044036 3/8-16 Keps Nut for Night-Lite Pro V-Series Ce Light Towers by Allmand
$2.99
16
046110 3/8-16 X 1" Hhcs Gr5 Plated for Night-Lite Pro V-Series Ce Light Towers by Allmand
$2.99
17
041078 1/4-20 X 1/2 Ph Truss Screw for Night-Lite Pro V-Series Ce Light Towers by Allmand
$2.99
18
044021 1/4-20 Keps Nut for Night-Lite Pro V-Series Ce Light Towers by Allmand
$2.99
19
044015 8-32 Keps Nut Ss for Night-Lite Pro V-Series Ce Light Towers by Allmand
$4.49
20
043055 5/16 Split Lock Washer for Night-Lite Pro V-Series Ce Light Towers by Allmand
$2.99
21
042027 8Mm X 1.25 X 16Mm Gr 10.9 Hex Bolt for Night-Lite Pro V-Series Ce Light Towers by Allmand
$2.99
22
340111 1 1/2" Clamp Muffler for Night-Lite Pro V-Series Ce Light Towers by Allmand
$9.42
23
100601 Jic 90 Deg Fitting for Night-Lite Pro V-Series Ce Light Towers by Allmand
$30.78
24
100603 Jic To Barbed Fitting for Night-Lite Pro V-Series Ce Light Towers by Allmand
$14.28
25
100602 Jic Cap for Night-Lite Pro V-Series Ce Light Towers by Allmand
$5.78
26
081017 3/8" Yellow Hose 24" for Night-Lite Pro V-Series Ce Light Towers by Allmand
$2.99
27
651193 Cat Fumoto Valve for Night-Lite Pro V-Series Ce Light Towers by Allmand
$125.56
28
046015 1/4-20 X 1 Hex Bolt for Night-Lite Pro V-Series Ce Light Towers by Allmand
$2.99
29
047005 1/4 Flat Washer for Night-Lite Pro V-Series Ce Light Towers by Allmand
$2.99
30
920472 Recovery Tank With Plug for Night-Lite Pro V-Series Ce Light Towers by Allmand
$81.27
31
101075 8Kw 60 Hz Marathon Gen 201Csa for Night-Lite Pro V-Series Ce Light Towers by Allmand
$4,066.50
32
651012P Mount, Generator, Cat for Night-Lite Pro V-Series Ce Light Towers by Allmand
$183.03
33
022025 2-Screw Romex Clamp, 3/4" for Night-Lite Pro V-Series Ce Light Towers by Allmand
Call for Price call for price call for price
34
046041 5/16 - 18 X 1/2" 12 Pt Flange Head Bolt for Night-Lite Pro V-Series Ce Light Towers by Allmand
$2.99
35
046115 3/8-16 X 1 1/4 Hhcs for Night-Lite Pro V-Series Ce Light Towers by Allmand
$2.99
36
046120 3/8-16 X 1 1/2 Hex Bolt for Night-Lite Pro V-Series Ce Light Towers by Allmand
$2.99
