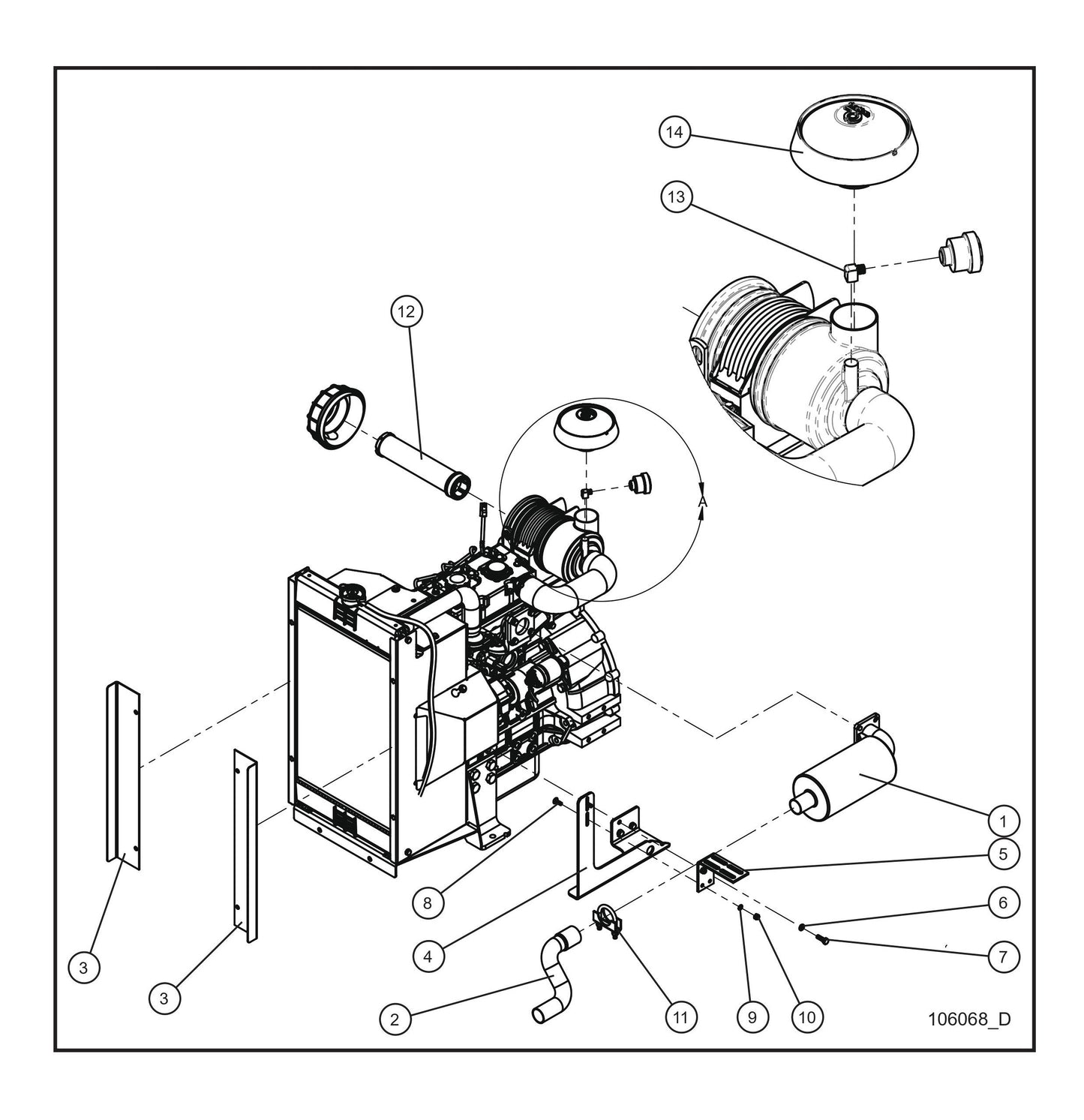

CAT C1.5 Engine Assembly Group Parts By Allmand

CAT C1.5 Engine Assembly Group Parts By Allmand

  • CAT C1.5 Engine Assembly Group Parts By Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
104780 Muffler Cat C1.5 2.000 Spout for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$411.44
2
103496 Tailpipe C1.5 Maxi Ii for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
3
103491P Rad Shroud C1.5 Maxi Ii for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
4
103517P Bracket Muffler Cat C1.5 for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
5
100706P Muffler Bracket Adjustable Cat for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$198.97
6
043055 5/16 Splitlock Washer for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$2.99
7
042031 M8 X 25Mm X 1.25Mm Hex Head Cs Gr8.8 Pl for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$4.49
8
100342 1/4-20 X 1 Carriage Bolt for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$2.99
9
047009 1/4 Flat Washer Sae Ss for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
10
044023 1/4-20 Nylock Hex Nut Pl for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
11
112211 1-5/8 Muffler Clamp Exhaust for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$11.78
12
104071 Safety Filter Air System for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$123.38
13
026030 Elbow 1/8 Nptm Street for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$13.54
14
340032 Cap Air Cleaner 2” Id for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$114.04
NS
105190 Harness Engine Cat 1.5 for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
NS
105874 Cat 1.5 Charge Circuit Fuse for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
NS
105889 Wiring Schematic C1.5 Engine for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
