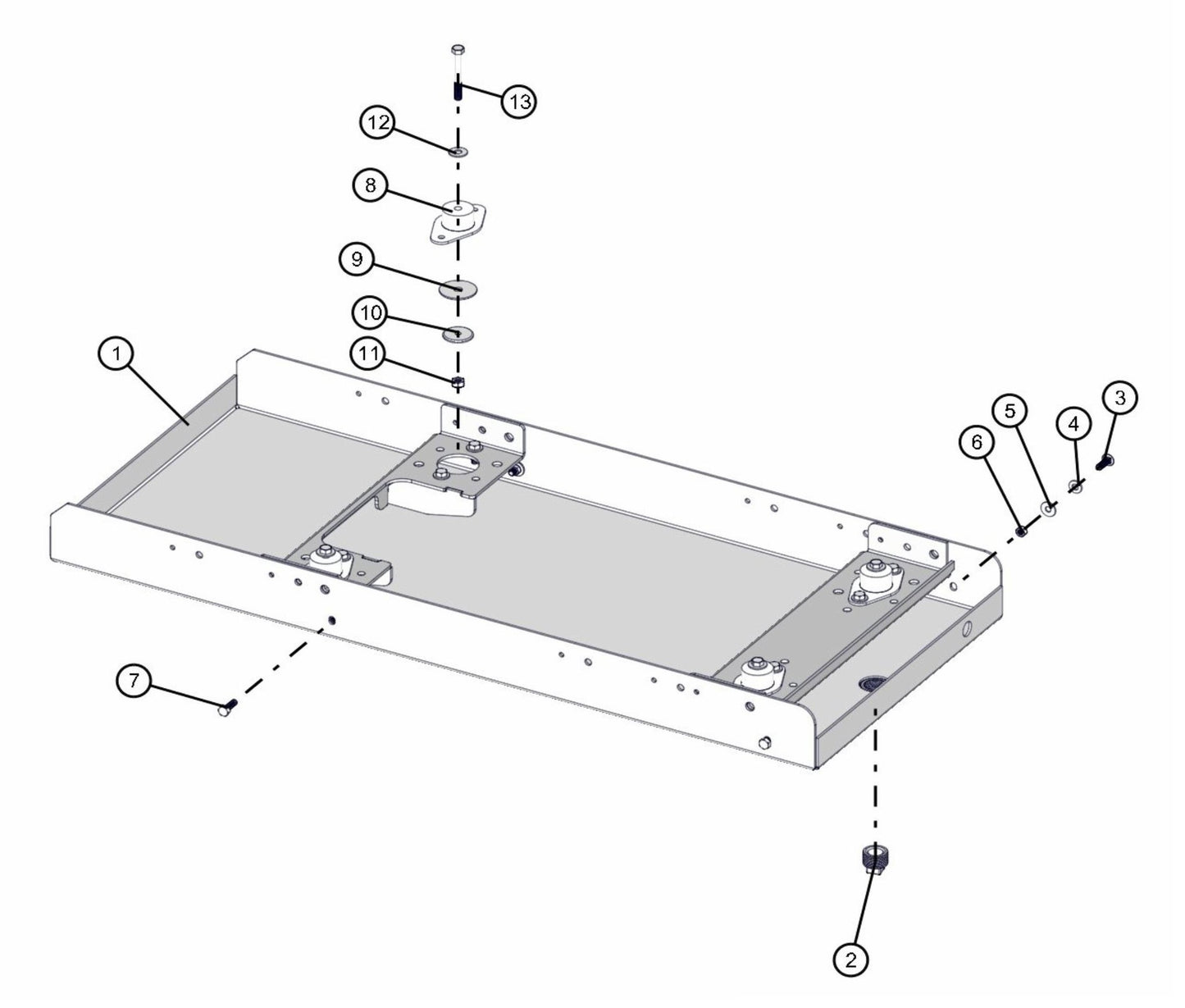

CAT C2.2 Engine/Generator Bunded Tray Assembly Parts for FCS Maxi-Lite 15-20KW (0001LV10 to 9999MLV12) by Allmand

CAT C2.2 Engine/Generator Bunded Tray Assembly Parts for FCS Maxi-Lite 15-20KW (0001LV10 to 9999MLV12) by Allmand

  • CAT C2.2 Engine/Generator Bunded Tray Assembly Parts for FCS Maxi-Lite 15-20KW (0001LV10 to 9999MLV12) by Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
3
053020 5/16-18 X 1 Carriage Bolt Pl for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$2.99
4
100644 Rubber Washer for Maxi-Lite Light Towers by Allmand
$4.88
5
047010 5/16 Flat Washer Pl for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$2.99
6
044030 5/16-18 Hex Nut Pl for Night-Lite Pro Ii V-Series Light Towers by Allmand
$2.99
7
046050 5/16-18 X 1 Hex Head Cs Gr5 Pl for Maxi-Lite Ii Ld-Series (10-000001 To 10-999999) Light Towers by Allmand
$2.99
8
848997 Isolator Mount Heavy Duty for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$51.50
9
640565 Engine Mount Washer for Maxi-Lite Laydown 15-20Kw Light Towers by Allmand
$13.39
10
650260 Snubbing Washer for Maxi-Lite Laydown 15-20Kw Light Towers by Allmand
$7.28
11
044038 3/8-16 Nylock Hex Nut Pl for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$2.99
12
047015 3/8 Flat Washer Pl for Maxi-Lite Ii Ld-Series (10-000001 To 10-999999) Light Towers by Allmand
$2.99
13
046137 3/8-16 X 3 Hex Bolt for Eclipse AB 2220 Se Arrow Boards by Allmand
$4.49
1
Call for Price call for price call for price
2
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
