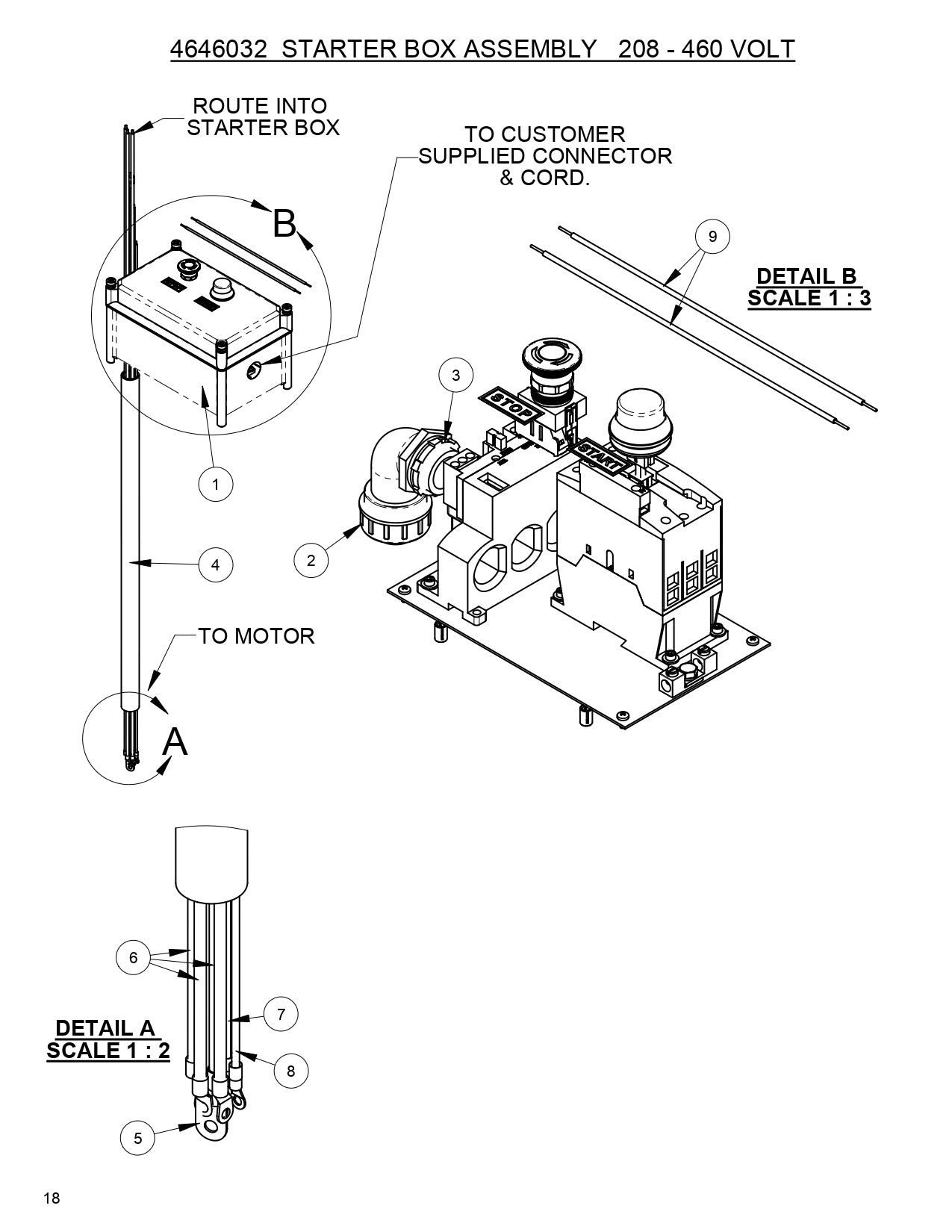

CB15EXL Starter Box Assembly 208-460 Volt Parts

CB15EXL Starter Box Assembly 208-460 Volt Parts

  • CB15 Starter Box Assembly 208-460 volt
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4600276 Starter Box, 230-460V for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2,191.86
2
2800898 Connector, 1", Sealtite, 90 Deg. for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$75.33
3
2800193 Lock Nut, 1" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$3.99
4
4646144 Conduit, Seal Tite, 1" x 29" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$30.13
5
4646145 Wire Assy., 6 Gage, Green, 50" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$39.82
6
4646146 Wire Assy., 8 Gage, Black, 55" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$28.01
7
4600165 Wire Assy., 14 Gage, Brown, 48-1/2" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$11.02
8
4646148 Wire Assy., 14 Gage, Orange, 45" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$21.52
9
4646128 Wire, 14 Gage, Orange, 12" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$7.26
View full details
